HOBP0301

MicroPanel Plus Power Panel

Product Info | Required Items | Substitutions
HOBBICO

HOBP0301
MicroPanel Plus Power Panel
By HOBBICO
$21.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Power Panels
But only from... HOBBICO
All items from... HOBBICO


 Inventory Status Legend
StockStock availability for on-line ordering
1
$21.99
Warehouse ?
StockStock availability for pick up
1
$21.99
Warehouse ?
0
$21.99
Store - Charlottetown ?
0
$21.99
Store - Edmonton ?
0
$21.99
Store - Mississauga ?
0
$21.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • The MicroPanel Plus has two sets of color-coded banana jacks: one set supplies 12V of power to an electric starter or fuel pump, while the other set delivers 1.2V for a glow plug clip.
  • An 18" input lead with alligator clips connects directly to a 12V field box battery.
  • Includes reverse polarity protection.

The Hobbico MicroPanel Plus provides all the features you need but in a small package. The panel features glow driver circuitry with LED indicator and adjustable heat level, glow starter charger with LED indicator, 12VDC output for starter or electric fuel pump. The unit can be mounted to a field box or can be used stand-alone as the back can be covered with an included enclosure. The Micro Panel Plus also includes 18" leads with aligator clips and features polarity protection.

PRODUCT RESOURCES
VENDOR TECHNOTES

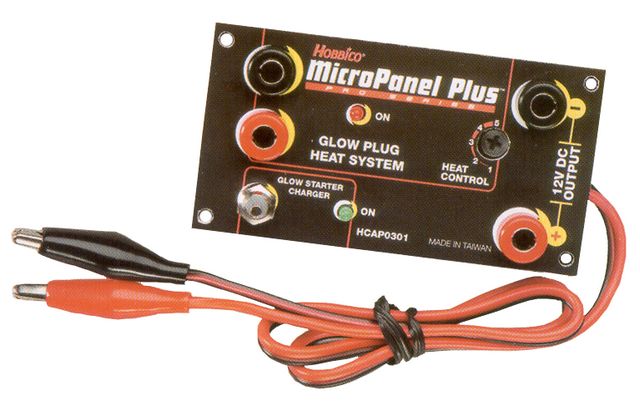

         This is the Hobbico Pro Series MicroPanel Plus Power Panel.
This panel mounts onto a Field Box or stands alone, and is used to run the
accessories required to start a model glow engine.

FEATURES: The "plus" that sets this panel apart from the others is an on-board
300-400mA charger for single NiCd or NiMH glow starter cells. It
includes a Charging lug for the glow starter to clip onto and a
Green Charge indicator LED.
A glow plug heat system is also included for using glow plug clips
with banana plugs. It includes a Red LED Charging indicator light,
and 1 through 5 adjustable heat control setting with a Phillips
head screwdriver (screwdriver not included).
12V DC output Banana Plug Jacks provide a power source for hand-held
electric engine starters.
Black and Red input leads are 18" with Alligator Clips for connecting
directly to a 12V Field Box Battery (Battery not included).
Built-in reverse polarity protection
One mounting hole on each corner and the small size makes this panel
easy to mount onto nearly any Field Box.
A Black plastic rear enclosure is included for stand-alone use when
not mounted into a Field Box, to prevent electrical damage.
Two year warranty

INCLUDES: One Hobbico Pro Series MicroPanel Plus Power Panel with 18" input
lead with alligator clips
One Black plastic rear enclosure for stand-alone use
One Instructions Sheet

REQUIRES: Mounting the panel onto a Field Box and connecting the input leads
onto the Field Box Battery.
12V mini Field Box Battery HCAP0855
12V mini Field Box Battery Charger HCAP0200

SPECS: Voltage Input: 11V - 14.3V DC
Glow Starter Charger Output: 300 - 400mA
Glow Plug Clip Output: 1.2V
Weight: 2.3oz (65g)
Length: 3.3" (84mm)
Width: 1.8" (46mm)
Height: .75" (19mm)

COMMENTS: The banana plug jacks and input alligator clips are color coded Red
for Positive and Black for Ground connections.
JAL 3/15/01
ir/jl
updt jxs 1/31/03
