HOBA2125

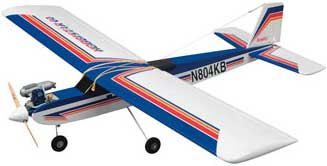

Hobbistar 60 MkIII ARF

Product Info | Required Items | Replacement Parts
RESOURCES

Items Required to Complete (17)
Replacement Parts (4)
Manual/Diagram
Hobbistar 60 Manual
HOBBICO

HOBA2125
Hobbistar 60 MkIII ARF
By HOBBICO
$207.99 CAD    243.99
Save $36.00 (15%)

Order Quantity:
No Picture Available

More like this... ARF Trainer R/C Aircraft 40-50
But only from... HOBBICO


 Inventory Status Legend
Stock availability for on-line ordering
1
$207.99
Warehouse ?
Stock availability for pick up
1
$207.99
Warehouse ?
0
$207.99
Store - Charlottetown ?
0
$207.99
Store - Edmonton ?
0
$207.99
Store - Mississauga ?
0
$207.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
71 in
Wingspan:
888 sq in
Wing Area:
7-8 lbs
Weight:
18-21 oz/ft²
Wing Loading:
4-channel 4-servo
Radio Requirements:
.61 cu in
Engine 2C:
.91 cu in
Engine 4C:

FEATURES
  • All wood and balsa construction
  • Factory covered
  • Two-piece wing
  • Huge 71 inch wingspan improves stability
  • Plywood reinforced radio compartment
  • pre-bent wire landing gear
  • Single center mounted aileron servo

VIDEO

PRODUCT RESOURCES
VENDOR TECHNOTES
  This is a 90% Prebuilt, Radio Controlled, Glow Powered, Almost-Ready-to-Fly,
Hobbico Hobbistar 60 MKIII .60 Sport Scale All-Wood Airplane.
For Beginner Modeler/Fliers.

FEATURES: Construction: All balsa and plywood
Wings: Two halves join to make a one-piece, all-wood wing
Huge 71" wingspan improves stabilty and visibility.
Covering: Factory applied adhesive backed (not carried separately)
Colors are Blue and White with Red and Orange stripes.
Radio Compartment: Plywood reinforced, located under the wing.
Landing Gear: Wire tricycle style.
Single Aileron Servo: Mounted in the center of the wing.
Complete hardware package with spinner, wheels, and engine mount.
Building Time: Ready to fly in only 15 - 20 hours.
Warranty Period: 90-days covering defects or workmanship.

INCLUDES: Pre-built and covered wings, fuselage and tail assemblies, pushrods,
pre-bent 3/16" main landing gear, 3/16" nose gear wire,
2.75" wheels, metal one-piece engine mount with mounting straps,
14 oz (420cc) fuel tank, 2-3/4" spinner, wood servo trays and
wing joiners, hardware package and photo-illustrated instructions.

REQUIRES: Engine: .61 (10cc) (2-stroke) or .91 (15cc) (4-stroke)
Muffler: Standard (Engine mounts in an upright position)
Radio: 4 Channel
Servos: 4 Standard (1-Aileron, 1-Elevator, 1-Throttle, 1-Rudder)
Servo Extension 6": 1 (Futaba radios usually include this)
Misc. Items: Glow plug, 1/4" foam rubber padding, medium fuel tubing,
fuel filter, propeller, building, and field equipment.

SPECS: Wingspan: 71" (1805mm)
Wing Area: 888" (57 dm2)
Wing Chord: 12.5"
Weight: 7-8lb (3175-3629g)
Wing Loading: 18-21 oz/sq ft (55-64 g/dm2)
Length: 55" (1400mm)
Width- 3 3/8"
Airfoil: Semi-Symmetrical, High-Wing
Center of Gravity: 3" Back from the wing's leading edge
at the fuselage sides.
Control Throws-
Ailerons: Up & Down 3/8" (11mm)
Elevator: Up & Down 1/2" (13mm)
Rudder: Right & Left 1" (26mm)

COMMENTS: If a replacement fuel tank is needed, order the Sullivan 14oz
tank (SULQ1742), or the DuBro 14oz tank (DUBQ0214).
Some minor trimming and modifications may be required.

09-14-02kh
updt jxs 10/08/04
updt jxs 6/30/05
updt GX 8/9/12
