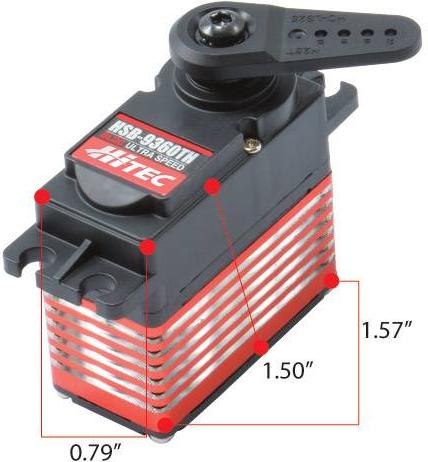

HSB-9360TH Brushless Digital High Speed Titanium Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Dual Ball Bearing
Bearing:
25 Tooth
Output Spline:
40.0 mm
Length:
20.0 mm
Width:
38.0 mm
Height:
68 g
Weight:
Titanium
Geartrain:
Titanium
Geartrain:
6.0 - 7.4 v
Voltage Range:
0.08 sec/60°
Speed @ 6.0V:
17 kg-cm (236 oz-in)
Torque @ 7.4V:
0.06 sec/60°
Speed @ 7.4V:
FEATURES
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for helicopter pilots.
Features
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- 25-Tooth Output Spline
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Data Save / Load
- Program Reset (From File)
