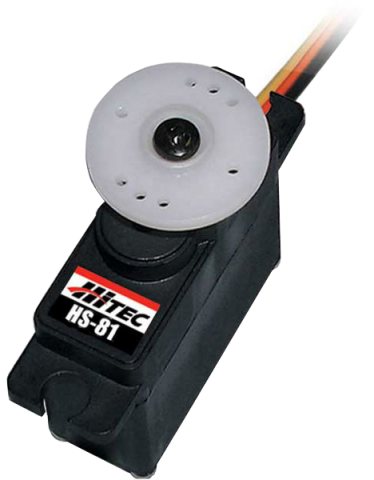

HS-81 Standard Micro Servo .09/42oz-in
|
click to enlarge
|
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Micro
Size Class:
24 Tooth
Output Spline:
30 mm
Length:
12 mm
Width:
30 mm
Height:
16.6 g
Weight:
Nylon
Geartrain:
4.8 - 6.0 v
Voltage Range:
2.6 kg-cm (36 oz-in)
Torque @ 4.8V:
0.11 sec/60°
Speed @ 4.8V:
3 kg-cm (42 oz-in)
Torque @ 6.0V:
0.09 sec/60°
Speed @ 6.0V:
FEATURES
- No Bearing
- 3-Pole Ferrite Motor
The HS-81 and HS-81MG are among Hitec’s most popular servos. Available in both resin and metal gear versions. With a fine balance between speed and torque, the HS-81’s were designed to be both economical and reliable.
