SPECIFICATIONS
15 Tooth
Output Spline:
66 mm
Length:
30 mm
Width:
57.6 mm
Height:
152 g
Weight:
Nylon
Geartrain:
4.8 - 6.0 v
Voltage Range:
19.8 kg-cm (275 oz-in)
Torque @ 4.8V:
0.19 sec/60°
Speed @ 4.8V:
24.7 kg-cm (343 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES
Dual Ball Bearing
3-Pole Ferrite Motor

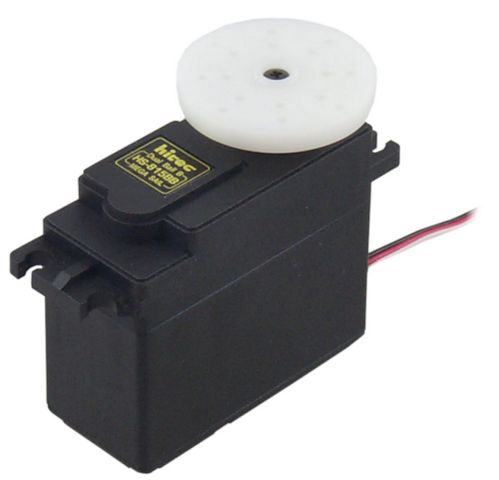

The HS-815 Mega sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 41/2 inch arm. With its dual ball bearing supported output shaft the HS-815BB will provide years of reliable service.
