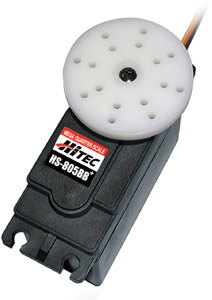

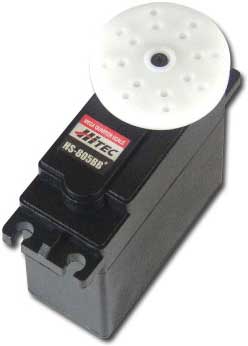

HS-805BB Mega Giant Scale Servo 0.14/343oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
 |
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Mega Giant Scale
Size Class:
Analog
Type:
15 Tooth
Output Spline:
66 mm
Length:
30 mm
Width:
57.6 mm
Height:
152 g
Weight:
Nylon
Geartrain:
4.8 - 6.0 v
Voltage Range:
19.8 kg-cm (275 oz-in)
Torque @ 4.8V:
0.19 sec/60°
Speed @ 4.8V:
24.7 kg-cm (343 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES
- Dual Ball Bearing
- 3-Pole Ferrite Motor
The HS-805BB is one monster of a servo. The HS-805 uses a heavy duty nylon gear train and a heavy duty 10mm 15 tooth output shaft. The HS-805BB develops enough torque to move just about anything so whether its a large plane orboat, or maybe your just flinging a spike hammer. Whatever it may be the HS-805BB can move it and move it fast.
