HITHS765S

HS-765HB Karbonite Sail Control Servo 0.23/183oz

Product Info | Replacement Parts
HITEC

HITHS765S
HS-765HB Karbonite Sail Control Servo 0.23/183oz
By HITEC
$69.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Analog
But only from... HITEC
All items from... HITEC


 Inventory Status Legend
StockStock availability for on-line ordering
2
$69.99
Warehouse ?
StockStock availability for pick up
2
$69.99
Warehouse ?
0
$69.99
Store - Stratford ?
0
$69.99
Store - Edmonton ?
1
$69.99
Store - Mississauga ?
0
$69.99
Store - Ottawa ?
0
$69.99
Store - Oshawa ?
0
$69.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
24 Tooth
Output Spline:
59 mm
Length:
29 mm
Width:
50 mm
Height:
110 g
Weight:
Karbonite
Geartrain:
4.8 - 6.0 v
Voltage Range:
11 kg-cm (153 oz-in)
Torque @ 4.8V:
0.28 sec/60°
Speed @ 4.8V:
13.2 kg-cm (183 oz-in)
Torque @ 6.0V:
0.23 sec/60°
Speed @ 6.0V:

FEATURES
  • Dual Ball Bearing
  • 3-Pole Ferrite Motor

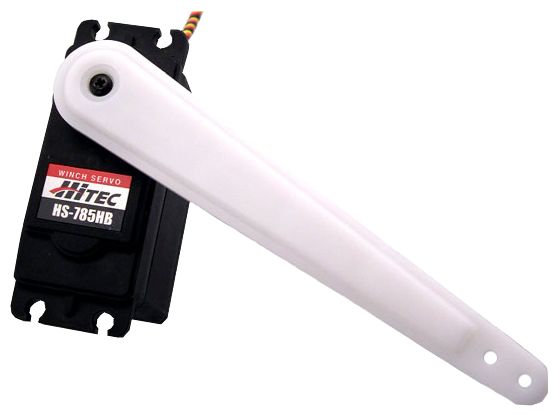

The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.
