HITHS755S

Servo - Giant Scale Karbon Uni

Product Info | Replacement Parts
RESOURCES

Replacement Parts (1)
Manual/Diagram
Servo Chart


HITHS755S
Servo - Giant Scale Karbon Uni
By HITEC
$35.99 CAD
Order Quantity:
No Picture Available

More like this... Analog Servos
But only from... HITEC

 Inventory Status Legend
STOCK
4
On-line - Great Hobbies.com
0
Store - Charlottetown
2
Store - Edmonton
2
Store - Ottawa
7
Store - Mississauga
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
59 x 29 x 50 mm
Dimensions:
110 g
Weight:
153 oz-in
Torque @ 4.8V:
183 oz-in
Torque @ 6.0V:
0.28 sec/60°
Speed @ 4.8V:
0.23 sec/60°
Speed @ 6.0V:

FEATURES
  • Dual Ball Bearing
  • 3-Pole Ferrite Motor

Hitec is pleased to introduce the new HS-755BB featuring the revolutionary Karbonite Gears. The 755 replaced the popular 700BB and offers stronger torque for improved performance. The Karbonite gears are four times stronger than the standard nylon and even after hundreds of thousands of cycles it will not show any signs of wear.

Applications: Larger aircraft to 22lbs

PRODUCT RESOURCES
VENDOR TECHNOTES

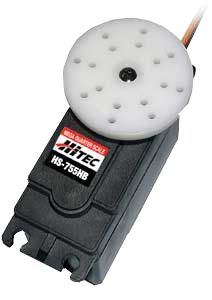

             This is a Hitec HS-755HB Quarter Scale Servo with
Universal Futaba J, Hitec S, JR and Airtronics Z Connector.

FEATURES: Ball bearing
Karbonite gears

INCLUDES: One servo
Black round servo horn
Black long and short double straight servo horn
Black long and short single straight servo horn
Four servo grommets
Four brass eyelets
Four S/T servo mounting screws
Decals

SPECS: Length: 2.32" (59mm)
Width: 1.14" (29mm)
Height: 1.96" (50mm)
Weight 3.88oz (110g)
Operating speed: .28 sec/60 degree at 4.8V
Output torque: 152.75 oz-in (11 kg-cm) at 4.8V

COMMENTS: For replacement gear set order, HRCM5008
For replacement horn set and hardware, order HRCM5713

ajw 7-14-04
ir/jxs
updt jxs 2/14/05
