HITHS5125S

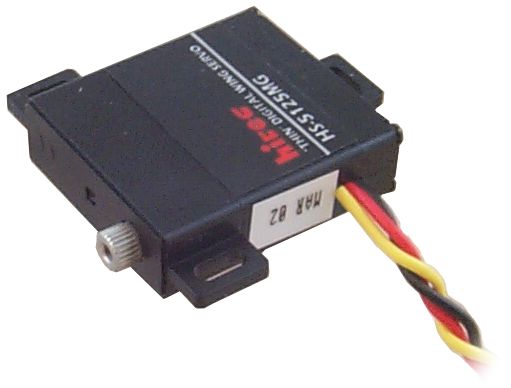

HS-5125MG Slim Metal Gear Wing Servo 0.13/49oz

Product Info | Substitutions | Replacement Parts
HITEC

HITHS5125S
HS-5125MG Slim Metal Gear Wing Servo 0.13/49oz
By HITEC
$79.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... HITEC
All items from... HITEC


 Inventory Status Legend
StockStock availability for on-line ordering
1
$79.99
Warehouse ?
StockStock availability for pick up
1
$79.99
Warehouse ?
0
$79.99
Store - Stratford ?
2
$79.99
Store - Edmonton ?
0
$79.99
Store - Mississauga ?
2
$79.99
Store - Ottawa ?
2
$79.99
Store - Oshawa ?
2
$79.99
Store - Halifax ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
23 Tooth
Output Spline:
30 mm
Length:
10 mm
Width:
34 mm
Height:
24 g
Weight:
Nylon
Geartrain:
4.8 - 6.0 v
Voltage Range:
3 kg-cm (42 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
3.5 kg-cm (49 oz-in)
Torque @ 6.0V:
0.13 sec/60°
Speed @ 6.0V:

FEATURES
  • Digital & MOS FET amp programmable
  • Indirect drive potentiometer for long life
  • Dual ball bearing
  • Gold plated connector
  • Narrow dead band width
  • High standing torque
  • Super strong 4 metal gears & 1 metal plastic gear
  • Metal horn
  • 3-Pole Ferrite Motor

The latest addition to the Hitec digital servo line is a "Super Thin" servo designed primarily for sailplane wings. Featuring the "unbreakable" MP gear train the 5125MG is also programmable and offered with a custom metal servo horn.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
