SPECIFICATIONS
Digital
Type:
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
37 mm
Height:
68 g
Weight:
4.8 - 7.4 v
Voltage Range:
18 kg-cm (251 oz-in)
Torque @ 4.8V:
0.19 sec/60°
Speed @ 4.8V:
29 kg-cm (405 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
FEATURES

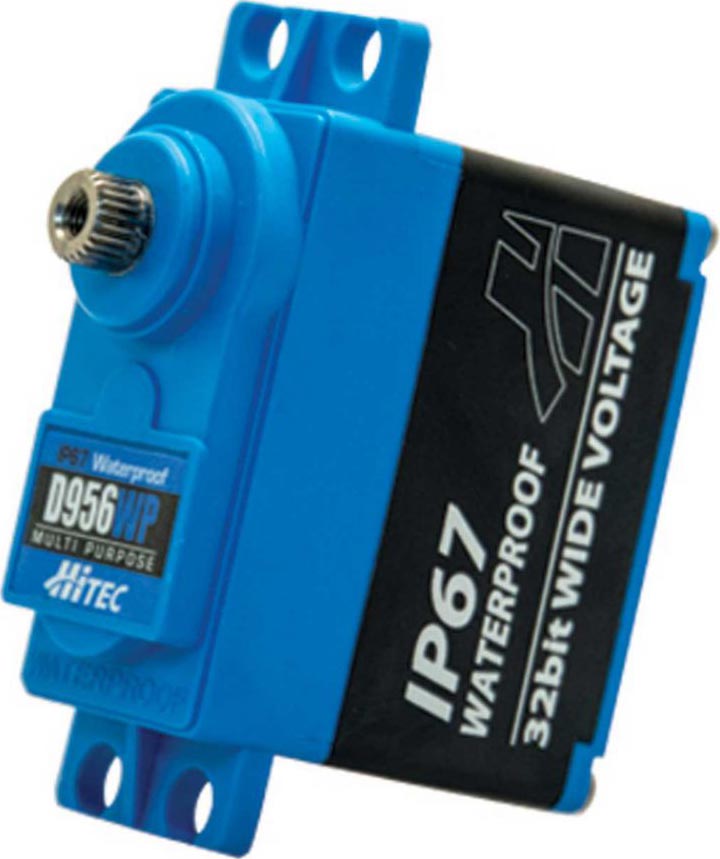

The D956WP has arrived! Based off the D954SW servo, this IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with Hitec's entire “D” line, this technologically-advanced servo is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.
