SPECIFICATIONS
25 Tooth
Output Spline:
40.6 mm
Length:
20 mm
Width:
38 mm
Height:
57 g
Weight:
Metal
Geartrain:
4.8 - 6.0 - 7.4 v
Voltage Range:
6.3 kg-cm (87 oz-in)
Torque @ 4.8V:
0.20 sec/60°
Speed @ 4.8V:
8.8 kg-cm (122 oz-in)
Torque @ 6.0V:
0.15 sec/60°
Speed @ 6.0V:
10 kg-cm (139 oz-in)
Torque @ 7.4V:
0.13 sec/60°
Speed @ 7.4V:
FEATURES
Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline

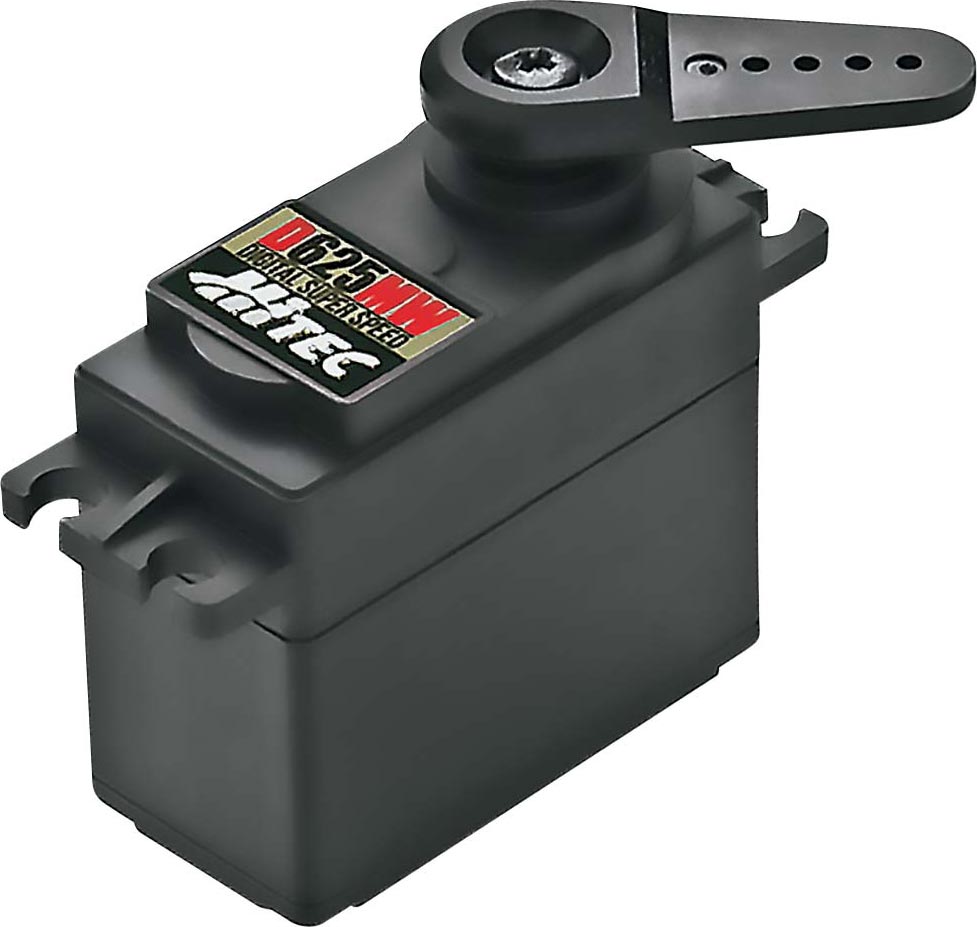

The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
