HBW38020252

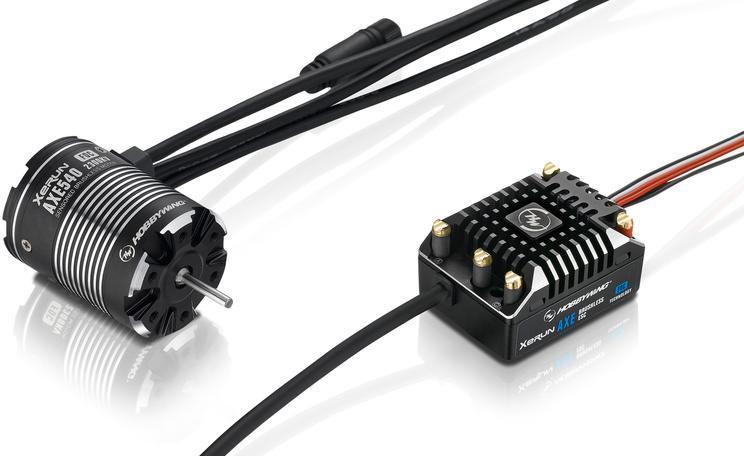

XERUN AXE 540-FOC 1800KV Motor and AXE FOC ESC (v1.1) - Combo

Product Info
HBW38020252
XERUN AXE 540-FOC 1800KV Motor and AXE FOC ESC (v1.1) - Combo
By HOBBYWING
$269.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Car Motor Systems
But only from... HOBBYWING
All items from... HOBBYWING


 Inventory Status Legend
StockStock availability for on-line ordering
0
$269.99
Warehouse ?
StockStock availability for pick up
0
$269.99
Warehouse ?
0
$269.99
Store - Stratford ?
1
$269.99
Store - Edmonton ?
0
$269.99
Store - Mississauga ?
0
$269.99
Store - Ottawa ?
0
$269.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

 ESC Specifications:
Cont./Peak Current: 60A/360A
Input Voltage: 2-3S LiPo, 6-9S NiMh
BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
Input wires: Red-Black-12AWG-200mm
Input connector: XT60
Programming Port: Built-in Bluetooth
Firmware OTA: upgradable
Size / Weight: 47.4x36.2x24.6mm / 82g

Motor Specification:
1/10-1/8th FOC brushless motor (Patented)
Waterproof
Motor Diameter: 36.0(1.42in)
Length (mm): 48.8mm(1.92in)
Shaft Diameter: 3.175(0.125in)
Pole: 4
