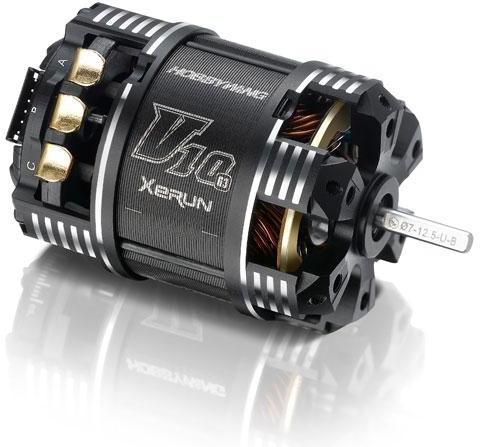

XeRun V10 G3 3.5T Sensored Brushless Motor
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
click to enlarge
|
More like this... Electric Car Motors Brushless 1/10
But only from... HOBBYWING
All items from... HOBBYWING
But only from... HOBBYWING
All items from... HOBBYWING
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Brushless
Brushed/Brushless:
Sensored
Sensored/Sensorless:
9450 KV RPM/Volt
Motor Kv:
3.5 T
Turns:
2
Poles:
35.9 mm
Can Diameter:
51.2 mm
Can Length:
3.17 mm
Shaft Diameter:
13.3 mm
Shaft Length:
FEATURES
- Lightweigt
- The built-in high precision Hall sensor is combined w/ balanced rotor.
- The mechanical timing can be adjusted.
- The motor case is designed to be easily dismantled for maintenance purposes.
- Heat resistant wire, rotor. (200 Celsius)
- Compliant w/: IFMAR, ROAR, EFRA, BRCA rules, and certified by RoHS, CE, FCC.
Designed for Extremely High-Level Racing. The KV & torque have been increased by 16% and 4% respectively, compared to the V10 G2 Stock motor.
Application: 1/10-1/12 Scale On-Road Racing
