Valiant Sport Aerobatic 10cc ARF

Product Info | Required Items | Replacement Parts

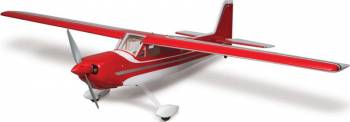

Valiant Sport Aerobatic 10cc ARF
$339.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARF Sport R/C Aircraft 60-90
But only from... HANGAR 9
All items from... HANGAR 9

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Valiant 10cc Cowling
Valiant 10cc Fin With Rudder
Valiant 10cc Wing Tube
Valiant 10cc Stabilizer With Elevator
Valiant 10cc Main Landing Gear
Valiant 10cc Red Spinner 2.25"
Engine Mount Set Meridian 10cc
Valiant 10cc Decal Set
69 in
640 sq in
Wing Area:
49.25 in
7.0 - 8.0 lbs
6 or more Channels
Radio Requirements:
6-7 Channels
Servo Requirements:
10 cc
2-Stroke Engine Requirements:
10 cc
4-Stroke Engine Requirements:
10 cc
Gasoline Engine Requirements:
Power 46 Outrunner Motor, 670Kv
Brushless Motor Requirements:
ESC Requirements:
14.8V 4S 4000mAh LiPo
Electric Flight Battery Requirement:
2 Cell Life or Lipo 2000+ Mah Rx
Battery Requirements:

  • Expertly constructed with lightweight, laser-cut balsa and plywood

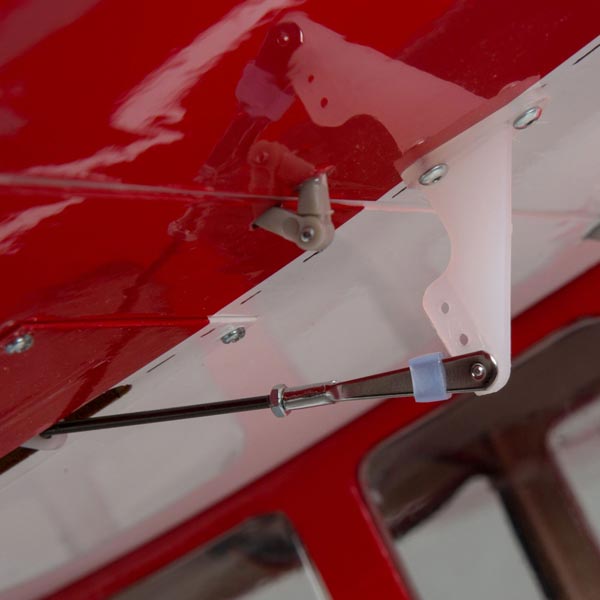

  • Two-piece, cantilevered plug-in wing makes field assembly fast

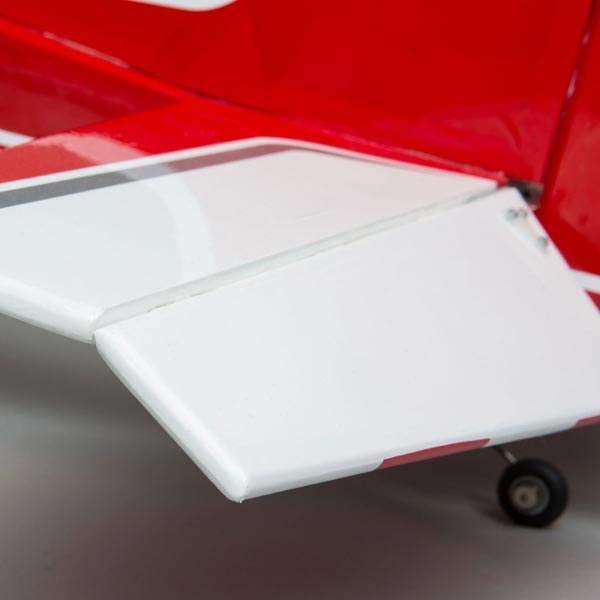

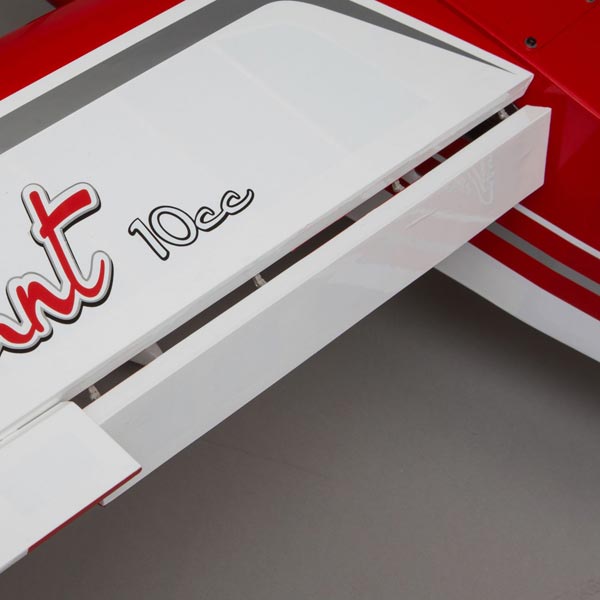

  • Functional flaps expand the flight envelope and add STOL capability

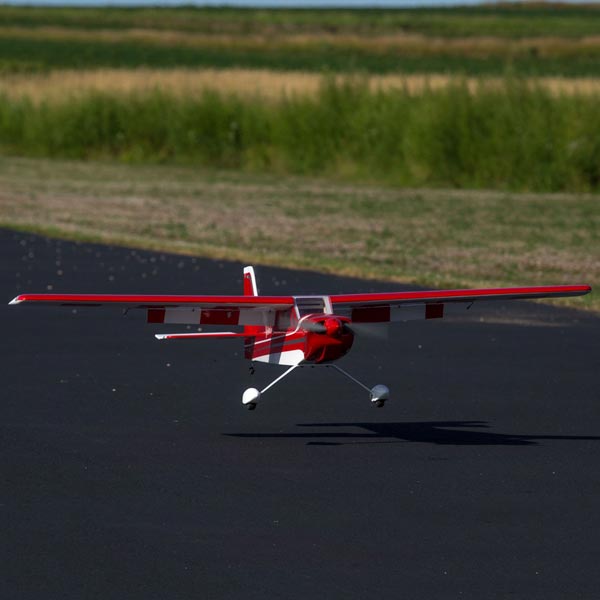

  • Wide-track, painted aluminum landing gear for outstanding ground handling

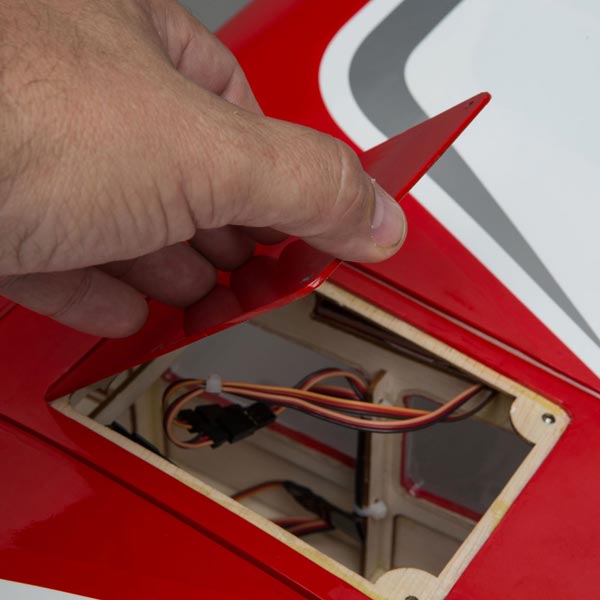

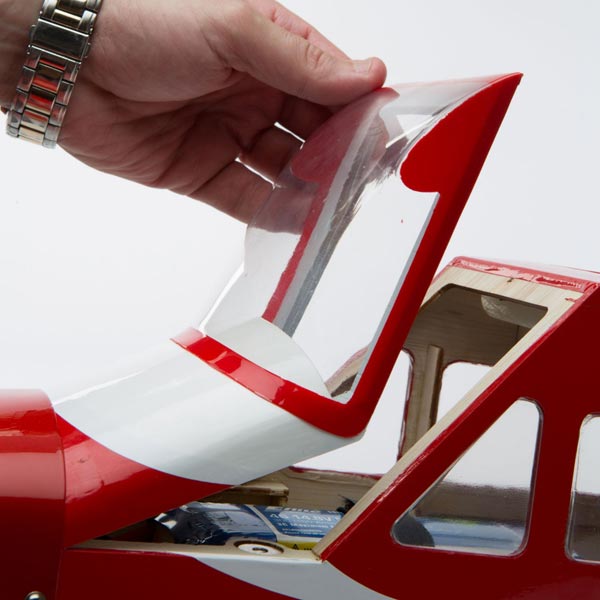

  • Large front hatch provides easy access and fast flight battery changes

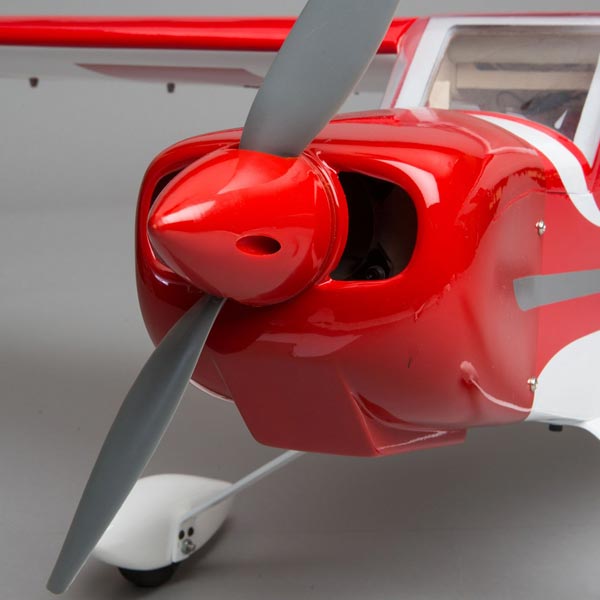

  • Painted fiberglass cowl and wheel pants

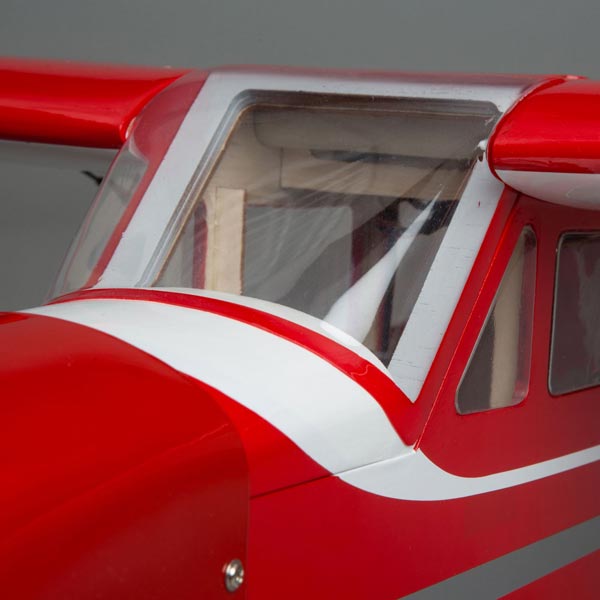

  • Crystal-clear canopy and side windows
  • Read to fly from water with the recommended float accessories (sold separately)
  • Easy to maintain, genuine Hangar 9 UltraCote covering
  • Designed around the Evolution 10cc gasoline engine
  • Electric motor mount included makes EP installation simple
  • Complete hardware kit includes a matching spinner

Whether you love the giant-scale version or want a Hangar 9® classic on the lighter side, your next dream machine has arrived. The new Hangar 9 Valiant 10cc airplane is everything that made the larger version famous in a size engineered to take full advantage of smaller engines. It will also accept brushless electric power systems too—no modifications necessary. With a 10cc gas engine such as the easy-to-use Evolution® 10GX, you can expect to get long flights with a small 7.5-ounce tank that costs pennies to fill. The large front hatch makes access from the top convenient and electric flight battery changes simple.

Count on the laser-cut, lightweight balsa/ply construction to stand the test of time while the genuine UltraCote covering makes its classic lines shine through. The two-piece, cantilever wing design eliminates the need for wing struts and gives way to a stylish look that makes field setup simple. You won't be laboring over the basic build for long either. Except for the glue-in horizontal stab, vertical fin, and control surfaces, a majority of assembly is bolt-together. All hinge slots and holes, including those for the flaps, are factory made so that your time at the bench can be more enjoyable. The wheel pant accessorized undercarriage completes the sleek appearance with the rugged ability to operate from average grass runways. Also on the underside are factory installed hard points so that the optional lightweight float set can mount-up with the turn of a few screws.

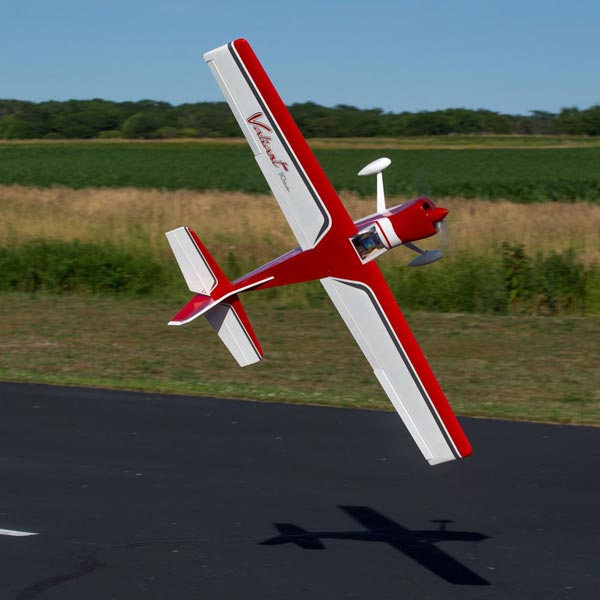

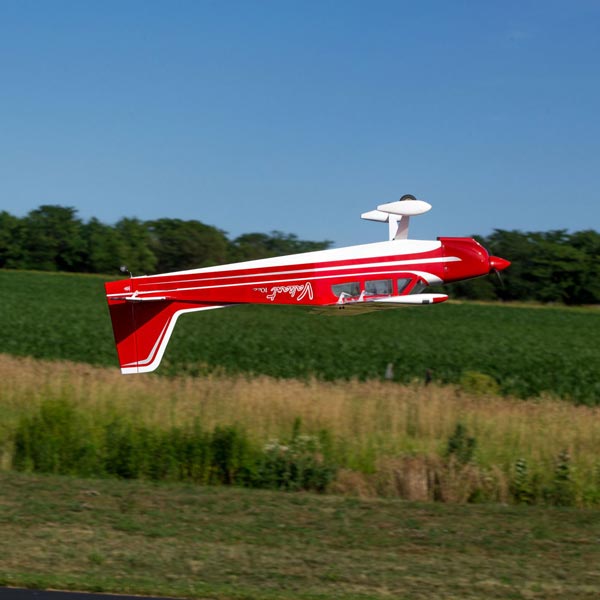

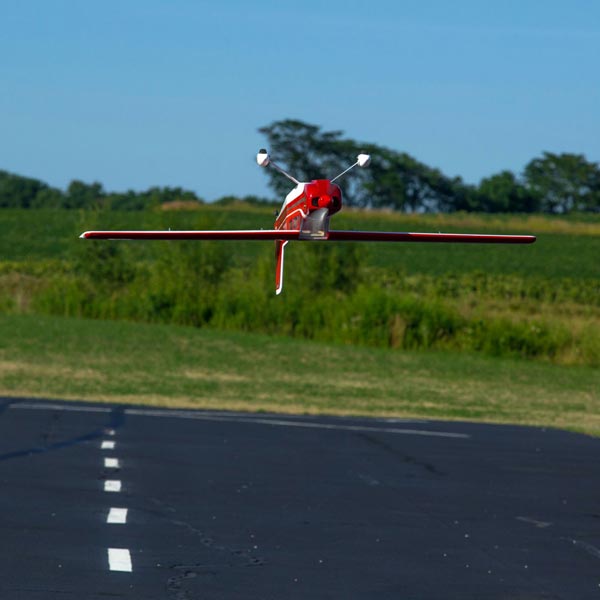

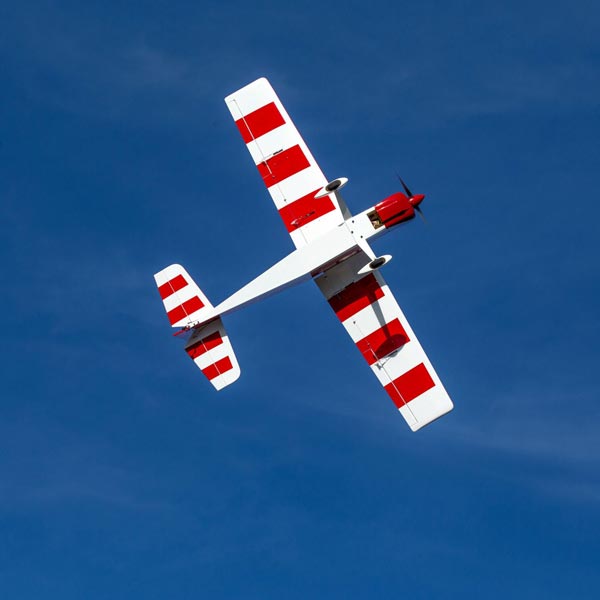

The Valiant design has proven versatility and virtuous flying manners. A semi-symmetrical airfoil provides outstanding stability and good wind penetration so you can be comfortable flying even when the air currents are less than ideal. Operational flaps can make takeoff and landing super-short, while a touch of flap makes cruising around at slow speeds more than a pleasure. Flaps up, the Valiant airplane is a sport aerobatics dream machine with dramatic loop capability from any attitude, crisp roll performance and enough rudder authority to do impressive knife edge passes—especially for a high-wing cabin model. Like its big brother, the Valiant 10cc presents with an overall rock-solid feel in the air, like a giant-scale model. As the namesake implies, the Valiant 10cc is sure to become a hero around your club field as the model to have, no matter what flying occasion may rise.

Lightweight Construction
Laser-cut, lightweight balsa and plywood construction is utilized to bring the Valiant 10cc to life as a durable sport model that's expertly built to exacting standards. Genuine Hangar 9 UltraCote covering provides an easy-to-maintain finish that looks great.

Wide Flight Envelope
The light wing loading and semi-symmetrical airfoil combine with an abundant power source to offer exceptionally friendly flight performance. Operational flaps allow its versatile flight envelope to open even wider into the world of Short Takeoff and Landing (STOL) capability.

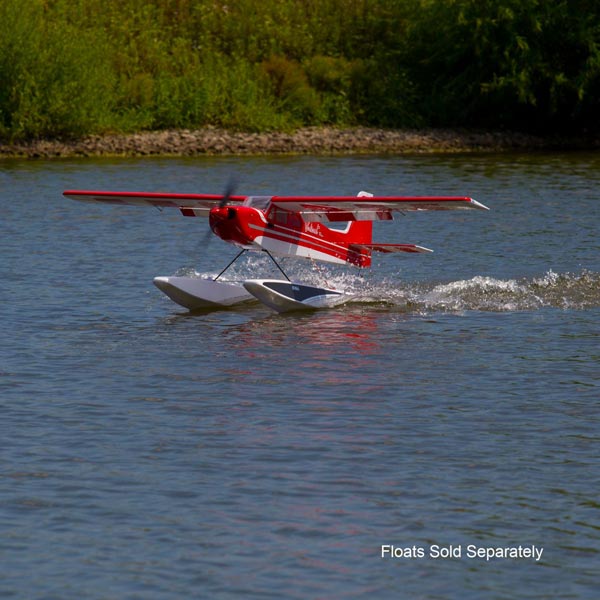

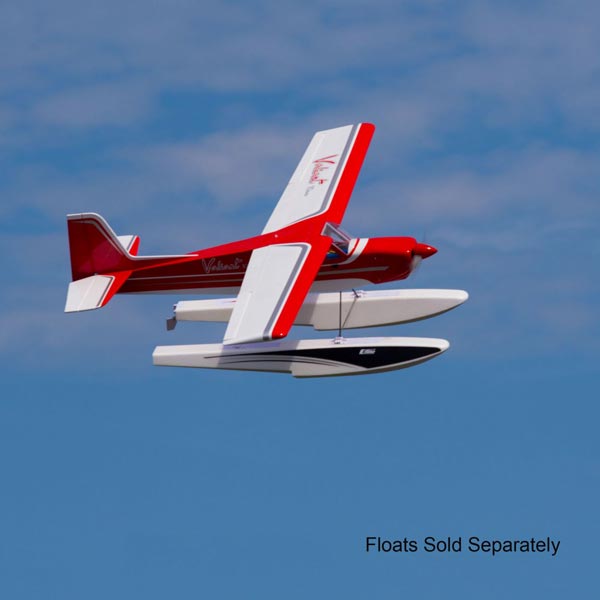

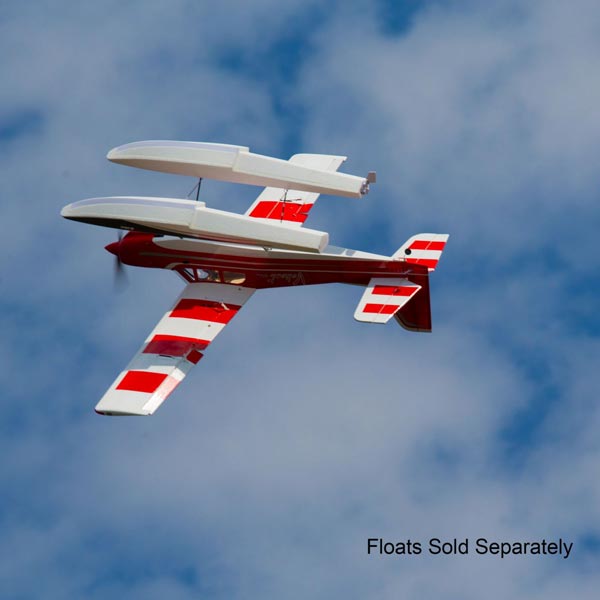

Ready for Floats
The optional Carbon-Z float set and wire mounting strut set exactly fit into the factory installed hard points located in the belly of the Valiant 10cc airplane. Once assembled, conversion to a float plane takes only minutes to complete.

Power It the Way You Want It
The Valiant 10cc is designed to accept the Evolution 10GX, 10cc gas engine, an 11cc four-stroke or brushless electric power plant equivalents. Hardware for both options is included along with an electric motor mount so you can get in the air faster.

You will need...

  • 10cc two- or four-stroke gas/petrol engine or equivalent electric motor system
  • Full-range, 6+ channel transmitter and receiver
  • (7) Standard-size servos (6 for the electric power option)
  • (2) Batteries for receiver and engine ignition (for the gas power option)
  • Propeller
