GPMQ3368

Brass Thread Insert 1/4-20 (4)

Product Info
GREAT PLANES

GPMQ3368
Brass Thread Insert 1/4-20 (4)
By GREAT PLANES
$6.99 CAD
Order Quantity:
No Picture Available

More like this... Hardware, Threaded Inserts
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$6.99
Warehouse ?
StockStock availability for pick up
0
$6.99
Warehouse ?
0
$6.99
Store - Charlottetown ?
0
$6.99
Store - Edmonton ?
0
$6.99
Store - Mississauga ?
0
$6.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

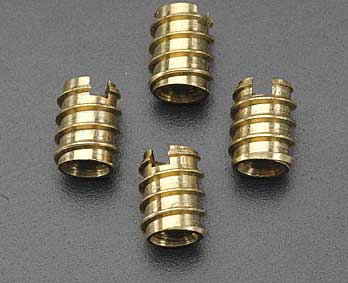

            These are Great Planes Brass Threaded Inserts (1/4-20)

FEATURES: Brass construction
The perfect way to put threads into wood and mount engines to wood
mounting rails. Threaded inserts make a simple & effective way to
make wing hold downs.
Can be used where blind nuts are hard to fit
Comes in a Parts-Pak clear plastic box with resealable lid
One year quality guarantee

INCLUDES: (4) Threaded Inserts

REQUIRES: 5/16" Drill Size (package says 3/8 but that is too large)
Epoxy (GPMR6042)
Standard Slotted Screwdriver (-)

SPECS: Thread Size: -20
Length: "
Diameter: 3/8" OD overall
5/16" OD of main body

COMMENTS: Package says it threads into a 3/8" hole. But it threads into a 5/16"
diameter hole that is " deep.

KPM 11/23/93
ir/jl
kr3/18/03
specs, bit size & comments updated tjt 072705
