GPMP0820

Li-Po 2S 7.4V 600mAh 25C Electrifly w/Micro Plug

Product Info | Optional Items
GREAT PLANES

GPMP0820
Li-Po 2S 7.4V 600mAh 25C Electrifly w/Micro Plug
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... Lithium Batteries, 2 Cell
But only from... GREAT PLANES
All items from... GREAT PLANES

Lithium Polymer Batteries

Lithium Polymer batteries can only be shipped by ground services within Canada.

 Inventory Status Legend
StockStock availability for on-line ordering
0
$13.99
Warehouse ?
StockStock availability for pick up
0
$13.99
Warehouse ?
0
$13.99
Store - Charlottetown ?
1
$13.99
Store - Edmonton ?
0
$13.99
Store - Mississauga ?
1
$13.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Li-Po Voltage Checker w/ Integrated Alarm
$11.99

Team Great Hobbies Li-Po Charging Bag
$19.99

Li-Po Voltage Checker w/ 5V USB Out
$16.99

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

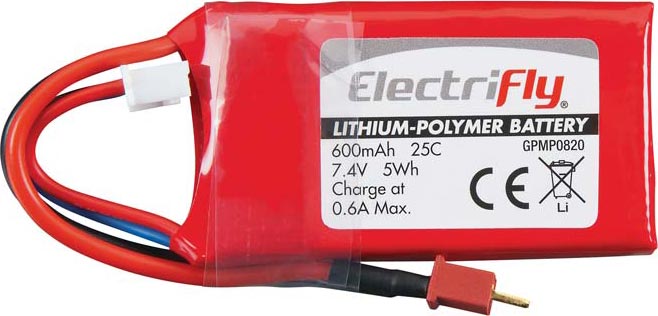

                     This is the Great Planes ElectriFly
Lithium Polymer 600mAh 7.4V 25C Battery Pack with Balance Connector.

FEATURES: Balancing allows all cells to fully Charge to 4.2V ensuring
maximum power from the pack, plus conditions the cells better
so they will last longer
Safer as long as the Cell Balancer or a properly equipped Charger
with Balancing Capabilities is used

INCLUDES: Great Planes ElectriFly Lithium Polymer 600mAh 7.4V 25C Balance
Battery Pack with ElectriFly Balance Connector, Micro Plug
Connector, and Instruction Sheet

REQUIRES: Compatible charger such as the Great Planes ElectriFly 2S 7.4V
AC/DC Micro LiPo Balancing Charger with AC and DC Adapters
(GPMM3321), or with Balancing Charger with Car Adapter only
(GPMM3322)

SPECS: Capacity: 600mAh
Number of Cells in Series: 2
Rated Voltage: 7.4V
Discharge Current: 25C (5A maximum)
Maximum Recommended Charging Amps: 0.6A
Pack Dimensions: 2.1 x 1.2 x 0.47" (52 x 31 x 13mm)
Weight: 1.2oz (35g)

COMMENTS: READ the ENTIRE instruction sheet included with battery before use
ALWAYS use a LiPo-approved Charger
ALWAYS use a LiPo Cell Balancer
NEVER Charge over 4.2V per cell
NEVER Charge at currents greater than 1C
NEVER Charge through the "To ESC or "DISCHARGE" lead
NEVER Trickle Charge
NEVER allow to Discharge below 2.5V per cell
NEVER disassemble or modify pack wiring in any way or puncture cells
NEVER place on combustible materials or leave unattended during
Charging
ALWAYS charge in a fireproof location
ALWAYS set charger's output volts to match battery volts
ALWAYS keep out of reach of children

jxs 08/21/12
ir/jxs
updated tlc 3/19/15
