GPMM3156

Triton 2 EQ AC/DC Charger/Balancer

Product Info | Required Items | Optional Items
GREAT PLANES

GPMM3156
Triton 2 EQ AC/DC Charger/Balancer
By GREAT PLANES
Discontinued
No Picture Available

More like this... Battery Chargers, Multi-Chemistry
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$233.99
Warehouse ?
StockStock availability for pick up
0
$233.99
Warehouse ?
0
$233.99
Store - Charlottetown ?
0
$233.99
Store - Edmonton ?
0
$233.99
Store - Mississauga ?
0
$233.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Traxxas Charge Lead
$9.99

EC3 Charge Lead
$9.99

TP/XH (TP/TGH/EFL) 2-6S LiPo Balance Board + Conne...
$9.99

Deans Charge Lead
$9.99

SPECIFICATIONS
110-240 V
AC Input Voltage:
11 - 15.0V
DC Input:
1-24 Cells
NiCd/NiMH Cells:
1-6 Cells
Li-Po Cells:
0.1 - 8A linear NiCd, NiMH, Auto Mode
NiCd/NiMH Charge Current:
0.1 - 8.0A (1C Max)
Li-Po Charge Current:
0.1 - 3.0 A
Discharge Current:
1 - 10 cycles
NiCd/NiMH Cycle Count:
1-60 minutes
NiCd/NiMH Time Cycle Delay:
10
Battery Memories:
7.2 x 7.0 x 2.44 in
Dimensions:
39.4 oz
Weight:

FEATURES
  • Compact, build-in switching AC power supply
  • Built-in balancing capability
  • Can charge 6S LiPo pakcs and up to 24 NiCd or NiMH packs
  • Reversed backlit LCD screen that tilts for easy viewing

Not only does the Triton2 EQ have AC/DC versatility and built-in balancing, it can deliver 120 watts of power so you can charge more NiCd and NiMH cells, and charge LiPo packs quicker. It also includes other adjustable features to fin-tune even the most specific changing needs — and traditional Triton programming makes the Trion2 EQ a breeze to set up as well!





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

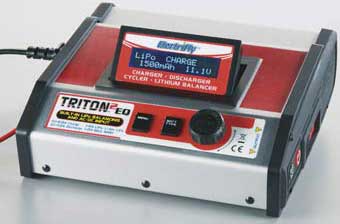

                  This is the ElectriFly AC/DC Triton2 EQ
Computerized Charger, Discharger, Cycler and Balancer.

**Primary differences between the TritonEQ and the Triton2 EQ are as follows;**
TritonEQ Triton2 EQ
Handles 1-14 NiCd & NiMH cells 1-24 NiCd & NiMH cells
1-6 LiPo/LiIon 1-6 LiPo/LiIon
1-6 (2-12V)Pb 3-12 (6-24V)Pb
Fast Charge Current: 0.1-5.0A 0.1-8.0A Linear
63W max DC, 50W max AC 120W max DC, 100W max AC
Battery Memories: 1 Battery Memories: 10
Cycle Count (NiCd, NiMH only): 1-5 cycles 1-10 cycles
No thermal probe port Thermal probe port


***Upgraded features over the ElectriFly Triton Jr. include;***
Lightweight built-in switching AC power supply, plus DC input capabilities
New reversed character LCD with backlight and 0-45 adjustable view angle
Built-in balancing for 1-6S LiPo, Li-Ion or LiFe (A123) cells
with FlightPower and ElectriFly adapters
Up to 8.0A charge current

FEATURES: Charges 1-24 cell NiCd, NiMH (1.2-28.0V), 1-6 cell LiPo, Li-Ion,
LiFe (3.3, 3.6 or 3.7V cells)
Adjustable charge current from 0.1-8 amps makes this charger ideal
for many applications including tiny to large electric planes and
helis, TX and RX batteries, field batteries and more
0.1-3.0A adjustable discharge current
Built-in balancing for up to 6S LiPo, Li-Ion or LiFe (A123) cells
with FlightPower and ElectriFly adapters (GPMM3200 and GPMM3201)
Precision peak detection with adjustable sensitivity for NiCd and
NiMH batteries
Constant current/constant voltage charge method for Pb and
lithiums
Performs 1 to 10 cycles on NiCd and NiMH batteries, and recalls all
data
Configures up to 10 batteries in memory for instant, easy recall
and charger setup
Adjustable discharge cutoff voltages for NiCd/MH, pre-set voltages
for Pb and lithiums
Temperature sensing capabilities (GPMM3151 Thermal Probe available
separately)
Top-off charge feature fully charges NiMHs without overheating
Reversed LCD with backlight plus a 0-45 adjustable view angle
clearly displays input and output volts, peak volts, average
discharge volts, charge and discharge capacity, currents and time
data for 10 cycles, errors and individual lithium cell voltages
Banana plugs on DC input with mating gator clips
Safety features include cool-off time delay, maximum NiMH charge
input, fast charge safety timer, current overload and reverse
polarity protection
Warning messages for improper input voltage, poor connections,
unsuitable battery condition, reverse polarity on output
Built-in cooling fan, for better charge efficiency and extended
charger life
One year limited warranty

INCLUDES: ElectriFly AC/DC Triton2 EQ with alligator clips, ElectriFly and
FlightPower adapters, and instruction manual

REQUIRES: Charge leads depending on battery type
Matching discharge leads depending on battery type
HCAP0101 Futaba J Tx/Rx Charge Leads NO 9VAP
Futaba J Tx/Rx Charge Leads 9VAP ONLY
HCAP0105 JR Tx/Rx Charge Leads
HCAP0106 Hitec/Airtronics Z Tx/Rx Charge Leads
GPMM3148 Charge Lead BANANA/DEANS MALE U
GPMM3149 Charge Lead BANANA/DEANS MICRO
Charge Lead Banana Plugs To Traxxas Male

SPECS: AC Input Voltage: 110V 60Hz - 240V 50Hz (detachable AC cord)
DC Input: 11-15.0V, banana plugs with mating gator clips included
Number of Outputs: One
Battery Types, # cells: 1-24 NiCd, NiMH (1.2-28.0V)
1-6 LiPo, Li-Ion, LiFe (3.3, 3.6 or 3.7V cells)
6, 12, 24V Pb (2V per cell)
Fast Charge Current: 0.1-8.0A linear NiCd, NiMH, auto mode
0.1-8.0A for lithiums (1C max) and Pb
120W max DC, 100W max AC
Fast Charge Termination: Peak detection NiCd, NiMH, cc/cv for Pb and
lithiums, optional thermal cutoff for all battery types
Trickle Current (NiCd/MH only): 0-300mA
Peak Sensitivity (NiCd/MH only): NiCd 5-20mV, NiMH 3-15mV
Peak Delay at Start (NiCd/MH only): 0-60 minutes
Fast Charge Safety Timer: 0-990 minutes
Max. Charge Cap: 0-9900mAh
NiMH Top Off Charge: 0-1000mA
Lithium Balancing Accuracy: 5mV per cell
Lithium Balancing Connector: ElectriFly and FlightPower adapters
included
Lithium Max. Node Current: 300mA
*Thermal Cutoff: 50-150F (10-65C)
Discharge Current: 0.1-3.0A
Discharge Cutoff Voltage: NiCd, NiMH 0.5-1.2V per cell
LiPo and Li-Ion 3.0V per cell
LiFe 2.5V per cell
Pb fixed at 1.8V per cel
Cycle Count (NiCd/MH only): 1-10 cycles
Cycle Time Delay (NiCd/MH only): 1-60 minutes
Battery Memories: 10 battery memories
Programming Controls: Dial and 2 pushbuttons
Display Type: 2x16 reversed LCD w/backlight & adjustable view angle
Audible Indicators: 10 melodies, on/off
Main Output Connection: Banana jacks
Case Material: Aluminum and ABS plastic
Cooling System: Built-in fan
Current Overload: Solid state
Case Size: 7.2 x 7.0 x 2.44 in. (184 x 178 x 62mm)
Weight: 39.4 oz. (1116g, w/o AC power cord)
* GPMM3151 - Triton Thermal Probe available separately
