GPMM3154

Triton EQ AC/DC Charger

Product Info
GREAT PLANES

GPMM3154
Triton EQ AC/DC Charger
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... Battery Chargers, Multi-Chemistry
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$129.99
Warehouse ?
StockStock availability for pick up
0
$129.99
Warehouse ?
1
$79.99
Overstock! 1 Only Available @
Store - Charlottetown ?
1
$79.99
Overstock! 1 Only Available @
Store - Edmonton ?
0
$129.99
Store - Mississauga ?
0
$129.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • Simple menus, easy to use jog dial
  • Huge backlit LCD display
  • Displays charge and discharge graphs plus input and output volts, peak volts, average discharge volts, charge and discharge capacity, currents and time
  • Two independent output jacks
  • Precision "Zero DeltaV" peak detection for NIMH/NiCd
  • Constant Current/Constant Voltage charge method for Pb and LiPo/Ion batteries
  • USB Jack for connecting optional PC interface
  • 10 audible melodies and sound cues
  • Warning messages for improper input, poor connections, unsuitable battery condition and reverse polarity on output connection
  • Built in cooling fan
  • Extruded aluminum case




VENDOR TECHNOTES
                    This is the ElectriFly AC/DC TritonEQ
Charger, Discharger and Cycler with Built-In Equalizer.

**Primary differences between the TritonEQ and the Triton2 EQ are as follows;**
TritonEQ
Handles 1-14 NiCd & NiMH cells
1-6 LiPo/LiIon
1-6 (2-12V)Pb
Fast Charge Current: 0.1-5.0A
63W max DC, 50W max AC
Battery Memories: 1
Cycle Count (NiCd, NiMH only): 1-5 cycles
No thermal probe port
Triton2 EQ
Handles 1-24 NiCd & NiMH cells
1-6 LiPo/LiIon
3-12 (6-24V)Pb
Fast Charge Current: 0.1-8.0A Linear
120W max DC, 100W max AC
Battery Memories: 10
Cycle Count (NiCd, NiMH only): 1-10 cycles
Thermal probe port

***Upgraded features over the ElectriFly Triton Jr. include;***
Lightweight built-in switching AC power supply, plus DC input capabilities
New reversed character LCD with backlight and 0-45 adjustable view angle
Built-in balancing for 1-6S LiPo, Li-Ion or LiFe (A123) cells
with FlightPower and ElectriFly adapters

FEATURES: Charges 1-14 cell NiMH and NiCd cells and 1-6 cell LiPo, Li-Ion and
LiFe (3.6, 3.7 or 3.3V cells)
Peak detection technology for NiCd and NiMH batteries, and constant
current/constant voltage technology for lithiums and lead-acid
batteries
Ideal for radio batteries and with charge currents adjustable from
100mA to 5 amps (limited to 1C for lithiums) it can also handle
large power packs
Built-in balancing for up to 6S LiPo, Li-Ion or LiFe (A123) cells
with FlightPower and ElectriFly adapters (GPMM3200 and GPMM3201)
Discharge cutoff voltage can be adjusted for NiCd/MH, and is fixed
for lithiums and lead-acid batteries
NiCd and NiMH trickle current is automatically set at 1/20th of
the fast charge current setting
Reversed LCD with backlight plus a 0-45 adjustable view angle
clearly displays input and output volts, peak volts, individual
lithium cell voltages, average discharge volts, charge and
discharge capacity, currents and time, error messages and more
Touchpad controls and super-simple programming make for
simplicity and reliability
Safety features include fast charge safety timer, current overload
and reverse polarity protection
One year limited warranty

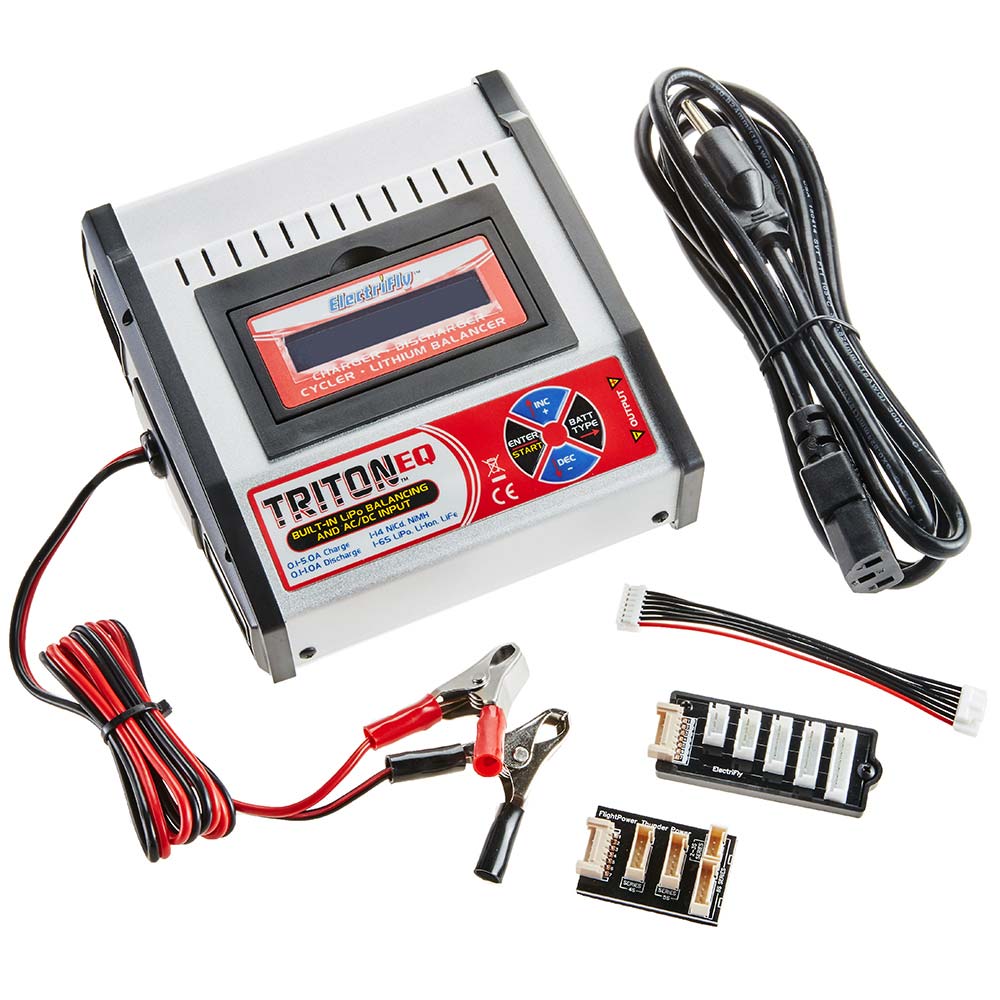

INCLUDES: ElectriFly AC/DC TritonEQ with FlightPower and ElectriFly adapters,
AC power cord, DC power cord with alligator clips and
instruction manual

REQUIRES: Matching connector for discharge lead depending on battery
HCAP0101 Futaba J Tx/Rx Charge Leads NO 9VAP
Futaba J Tx/Rx Charge Leads 9VAP ONLY
HCAP0105 JR Tx/Rx Charge Leads
HCAP0106 Hitec/Airtronics Z Tx/Rx Charge Leads
GPMM3148 Charge Lead BANANA/DEANS MALE U
GPMM3149 Charge Lead BANANA/DEANS MICRO
Charge Lead Banana Plugs To Traxxas Male

**A more complete list of connectors can be found in the Accessory
Completion Guide**

SPECS: AC Input Voltage: 110V 60Hz - 240V 50Hz (detachable AC cord)
DC Input: 11-15.0V DC, with large alligator clips
Number of Outputs: One, banana jacks
Battery Types, # cells: 1-14 NiCd, NiMH
1-6 LiPo, Li-Ion, or LiFe (3.6, 3.7 or 3.3V cells)
2, 4, 6, 8, 10, 12V Pb (2V per cell)
Fast Charge Current: 0.1-5.0A (1C maximum for lithiums)
63W max DC, 50W max AC
Fast Charge Termination: Peak detection NiCd, NiMH, cc/cv for Pb and
lithiums
Trickle Current (NiCd/MH only): Chg current / 20
Peak Sensitivity (NiCd/MH only): 8mV NiCd, 5mV NiMH
Peak Delay at Start (NiCd/MH only): 3 minutes
Fast Charge Safety Timer: NiCd/MH 1.5 hours, lithiums 3 hours, or
turn off
Lithium Balancing Accuracy: 5mV per cell
Lithium Balancing Connector: FlightPower and ElectriFly adapters
included
Lithium Max. Node Current: 300mA
Discharge Current: 0.1-1.0A (5W max)
Discharge Cutoff Voltage: NiCd, NiMH 0.1-16.8V
LiPo, Li-Ion 3.0V per cell
LiFe 2.5V per cell
Pb 1.8V per cell
Cycle Count (NiCd, NiMH only): 1-5 cycles
Battery Memories: One
Programming Controls: Membrane touchpad, 4 buttons
Display Type: 2x16 reversed LCD w/backlight and adjustable angle
Audible Indicators: Beeper
Case Material: Aluminum and ABS plastic
Safety Devices: Solid-state reverse polarity and overload
Case Size: 5.9 x 6.0 x 2.3 in (150 x 153 x 58mm)
Weight: 23.8oz (675g, w/o AC power cord)

jxs 11/07/08
ir/jxs
updt jxs 01/21/09
updt kw 2/2/09
updt lmm 3.26.10
