GPMM3010

PolyCharge 12V 1-3 Cell Li-Po

Product Info | Fits What?
GREAT PLANES

GPMM3010
PolyCharge 12V 1-3 Cell Li-Po
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... Battery Chargers, Lithium
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$39.99
Warehouse ?
StockStock availability for pick up
0
$39.99
Warehouse ?
0
$39.99
Store - Charlottetown ?
0
$39.99
Store - Edmonton ?
0
$39.99
Store - Mississauga ?
0
$39.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
11 to 15 DC v
Input Voltage:
1-3 Cells
Li-Po Cells:
3.5 in
Length:
2.2 in
Width:
0.9 in
Height:
4.4 oz
Weight:
27 in
Input Lead:
4 in
Output Lead:

FEATURES
  • Charges 1-3 Lithium-Polymer batteries (not for use with Lithium-Ion batteries)
  • Ideal for small park flyers and small to medium aircraft and helis
  • 250, 500, and 1000mA selectable charge current
  • Warning indicators for common charge problems
PRODUCT RESOURCES
VENDOR TECHNOTES

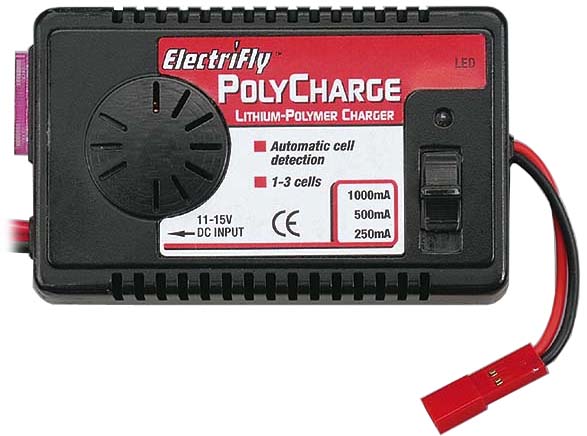

          This is the Great Planes ElectriFly PolyCharge DC Powered
1-3 Cell Lithium Polymer Battery Charger.

FEATURES: Designed for 1-3 cell Lithium Polymer batteries ONLY (NOT for Lithium
Ion batteries)
Ideal for small electrics-Park Flyers, small to medium 3D airplanes,
or helis
250 - 500 - 1000mA selectable Charge current
Warning indicators for voltage input errors, output reverse polarity
and open circuit errors
High intensity Blue LED status indicator for voltage input errors,
output reverse polarity, and open circuit errors
One year limited warranty (USA and Canada only)

INCLUDES: One Great Planes 1-3 Cell Lithium Polymer Battery Charger with 7.5A
fuse, alligator input clips, Red 2-pin output connector and
instruction sheet

REQUIRES: 12V Power Supply. Do not apply more than 15V to
the charger input as permanent damage could result.

SPECS: Input Voltage: 11-15V DC
Battery Types, # Cells: 1-3 Lithium Polymer cells (3.6-11.1V LiPo)
Fast Charge Current: 250, 500, 1000mA
Fast Charge Termination: "Constant Current/Constant Voltage"
Status Indicators: High intensity Blue LED, audible buzzer
Input Connectors: Alligator clips
Case Size: 2.2" x .9" x 3.5" (56x23x89mm)
Weight: 4.35oz (123g)
Length of Input Lead: 27" (686mm)
Length of Output Lead: 4" (102mm)


COMMENTS: Important! Always Charge LiPo packs in a fireproof location, such as
a metal container (like a metal ammo box) or on ceramic tile.
Always monitor the area with a smoke or fire alarm
Have an ABC type fire extinguisher available at all times
NEVER leave the battery unattended during Charging

To use this charger with the ElectriFly BP and PS series LiPos wired
for Balancing, one must use the Equinox and remove the
Red 2-pin plug and install 4mm female bullet connectors (GPMM3115)

jxs 12/28/04
ir/jxs
JCT 06/24/05
