ElectriFly Programmable Brushless ESC 30-Amp 2S-4S

Product Info

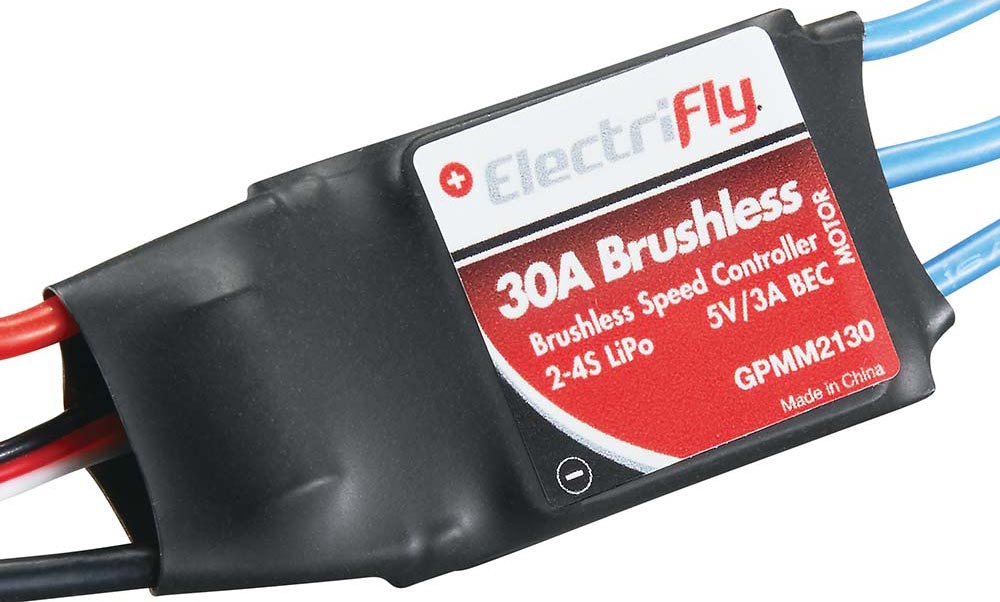

ElectriFly Programmable Brushless ESC 30-Amp 2S-4S
$42.49 CAD    49.99
Save $7.50 (15%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... GREAT PLANES
All items from... GREAT PLANES

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES: For fixed wing aircraft or helis up to 440 watts
May be powered by a 2-4S LiPo, or 6-12 cell NiMH/NiCd battery
Auto cell selection
2A/5V linear BEC, heavy duty BEC regulator
Braking and Timing adjustments
Low, medium and high low voltage cutoffs
Normal, Soft and Super Soft start modes
Thermal and signal loss protection
One-year limited warranty through ElectriFly beginning at date of

INCLUDES: ElectriFly 30A Programmable Brushless ESC with Star Battery
Connector, Receiver Connector

SPECS: Input: 2-4S LiPo, 6-12 cell NiMH/NiCd
Current: 30A/40A
Battery Eliminator Circuit (BEC): 2A/5V Linear
Battery Connector: Star
Programmable: Yes
Brake: Enable/Disable
Low Voltage Cutoff: Low/Med/High
Battery Wire Lead Gauge: 16AWG
Motor Wire Lead Gauge: 16AWG
Start Modes: Norm, Soft, Super Soft
Timing: 3.75/15/26.25
Signal Loss Protection: Yes
Dimensions (L/W/H): 1.9 x 1.5 x 1.2" (48.5 x 38 x 32mm)
Weight: 0.88oz (25g)
