GPMM1830

ESC SS-35 Brushless w/BEC

Product Info | Substitutions | Fits What?
RESOURCES

Substitutions (1)
Fits What? (3)
GREAT PLANES

GPMM1830
ESC SS-35 Brushless w/BEC
By GREAT PLANES
$74.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... GREAT PLANES

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
Stock availability for on-line ordering
1
$74.99
Warehouse ?
Stock availability for pick up
1
$74.99
Warehouse ?
0
$74.99
Store - Charlottetown ?
0
$74.99
Store - Edmonton ?
0
$74.99
Store - Mississauga ?
0
$74.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
7-12 Cells
NiCd/NiMH Cells:
3-4 Cells
Li-Po Cells:
35 A
Max Output:
350 W
Max Output:
5V/2A
BEC:
8.5 kHz (fixed)
Operating Frequency:
0.01 ohms
On-resistance:
On/Off
Brake:
battery voltage x 0.67
Voltage Cutoff:
110 °C
Thermal Cutoff:
52 mm
Length:
26 mm
Width:
8 mm
Height:
1.13 oz
Weight:

FEATURES
  • Designed for medium to larger higher performance airplanes
  • Works with outrunner and inner-rotating brushless motors
  • 35A continuous current, 40A surge currents
  • Powerful 2.0A BEC circuit
  • Very simple to use, with on/off brake and safe-start

Li-Po Compatible

The Silver Series speed controls for brushless motors are compatible with NiCd, NiMH and Li-Po type battery packs. The feature pre-installed Deans battery connectors and gold-plated bullet plugs for motor connections. In addition, they come pre-wired with universal radio connectors.

Zero Setup

These speed controllers are so advanced that they require no setup! They automatically detect battery type and input voltage at hookup. This sets the low-voltage cutoff automatically.

Tech Note

There may be an incompatibility issue using ElectriFly Silver Series brushless ESC's with some AXI brushless motors.

PRODUCT RESOURCES
VENDOR TECHNOTES

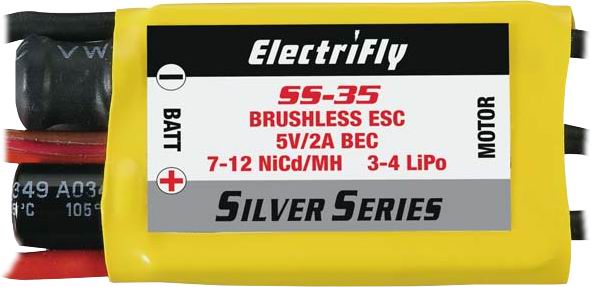

This is the ElectriFly Silver Series 35 amp Brushless Electronic Speed Control.
Great for medium to larger high performance airplanes.
Delivering 35A of continuous current with a built-in
Battery Eliminator Circuit which can handle 2A, this
ESC is very simple to use and very affordable.

FEATURES: Compatible with NiCd, NiMH and LiPo batteries
Auto-detects input volts and sets Low-Voltage cutoff
8.5kHz switching frequency, for good run-time and cool operation
Pre-installed Universal radio connector* (see Comments below)
Pre-installed male star connector for battery (see Comments below)
Pre-installed gold plated 3.5mm female bullet connectors for motor
High powered switching BEC (Battery Eliminator Circuit) which
handles 3 or 4 standard servos
Full proportional forward and smooth throttle response with ON/OFF
brake
Safe Start System** (see details in Comments below)
Thermal Protection stops motor when maximum temperature 230F
is reached
180 Day Warranty (USA & Canada Only)

INCLUDES: One Brushless ElectriFly Silver Series 35A Speed Control with
pre-installed receiver connector, battery connector, and motor
connectors.

REQUIRES: Mating motor connectors, GPMM3112
Mating battery connector, HCAM4020

SPECS: Length: 2" (52mm)
Width: 1.02" (26mm)
Height: .31" (8mm)
Weight: 1.13oz (32g)
Input Voltage: 6-12 cells NiCd/NiMH
2-4 cells LiPo
(20V input w/o BEC)
Output Current: 35A continuous maximum
40A surge maximum
Max Output Power: 350 watts
ON-resistance: .01 ohms
Operating frequency: 8.5kHz
BEC: 5V/2A
Low Voltage Cutoff: Battery voltage x .67
Thermal Cutoff: 230F (110C)
Timing Angle: 12
Brake: ON/OFF

COMMENTS:


*To use with "Old Airtronics" Rx, requires adapter.
**Safe Start System: Move throttle stick to full throttle position,
then to "OFF" position, then slowly advance throttle and motor will
begin to run.

The "Silver Series" line of brushless electronic speed controls
include many built-in safety features. One such feature COULD
POSSIBLY CAUSE THE BRUSHLESS MOTOR TO STOP ROTATING when the
transmitter's stick is at an extremely low position and/or if
rotation of the brushless motor is impeded or obstructed in some
way. This is NORMAL, as the ESC is detecting that a problem
possibly exists with the motor and/or speed control. Rotation of
the motor is stopped to protect the speed control from possible
damage.
WARNING!! If the ESC and motor have already been armed and the motor has been
rotating normally, yet after moving the throttle stick to near minimum the
motor suddenly ceases to rotate normally even if the throttle stick is advanced
above minimum throttle, DO NOT PLACE YOUR HANDS NEAR THE PROPELLER!! FAILURE
TO OBEY THIS WARNING COULD RESULT IN PERSONAL INJURY!! From this point, moving
the throttle stick up - even to full throttle might not cause the motor to
rotate BUT THE MOTOR IS STILL ARMED AND ACTIVE DURING THIS TIME!! To regain
control of the motor, move the throttle stick to absolute minimum throttle
position and then advance the throttle stick upwards once again.
Alternatively, you can disconnect the battery from the ESC, then re-connect the
power source and re-arm the system.
NEVER get near the propeller if the speed control is connected to input power!
ALWAYS make sure the throttle stick is at minimum position before attempting to
disconnect the battery from the speed control! ElectriFly is not responsible
for incidental damage or personal injury as a result of misuse of this product.

jxs 6/20/05
updt tjt 081705
updt mcw 12/28/05
updt jxs 7/15/09
