GPMG4502

Rimfire 250 Outrunner BL Motor

Product Info | Substitutions
RESOURCES

Substitutions (1)
GREAT PLANES

GPMG4502
Rimfire 250 Outrunner BL Motor
By GREAT PLANES
$54.99 CAD    59.99
Save $5.00 (8%)

Order Quantity:
No Picture Available

More like this... Electric Aircraft Motors
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
1
$54.99
Warehouse ?
Stock availability for pick up
1
$54.99
Warehouse ?
0
$54.99
Store - Charlottetown ?
0
$54.99
Store - Edmonton ?
0
$54.99
Store - Mississauga ?
0
$54.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

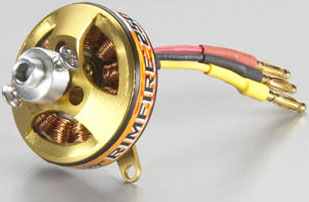

                 This is the Great Planes ElectriFly RimFire
28-13-1750 Brushless Outrunner Electric Motor.

FEATURES: For 3D airplanes up to 5oz (140g) and sport airplanes up to 8oz
(225g)
Designed for explosive acceleration and maximum torque
Lightened aluminum can houses high torque rare earth Neodymium
magnets
Double shielded bearings
Better cooling means 50% more power than many other Outrunners of
similar size
Virtually maintenance-free; no commutators or brushes to wear out
Two year quality guarantee through manufacturer beginning at date of
purchase

INCLUDES: Great Planes ElectriFly RimFire 28-13-1750 Brushless Outrunner
Electric Motor with leads, 2mm male and female connectors, motor
mount, two O-rings, prop saver adapter and instruction sheet

REQUIRES: Speed Control for Brushless Motors such as the ElectriFly Silver
Series 8 (GPMM1800)
3mm Prop Adapter if using a spinner
Slow Fly Propeller

SPECS: Motor Diameter: 1.1" (28mm)
Motor Length: 0.51" (13mm)
Shaft Diameter: 3mm
Kv Rating: 1750RPM/V
Weight: .71oz (20g)
Input Voltage: 7.4-11.1V (2-3S LiPo)
Constant Watts: 90
Burst Watts: 120
Suggested Prop Sizes: 7x6 - 8x4 slow fly

COMMENTS: If 3mm Prop Adapters are needed order;
GPMQ4930 3mm Set Screw Type
GPMQ4959 3mm Collet Type

The three-number designation refers to Motor Diameter, Motor Length
and Kv Rating.

jxs 9/11/09
ir/jxs
735557345020 0735557345020
GPMG4502
