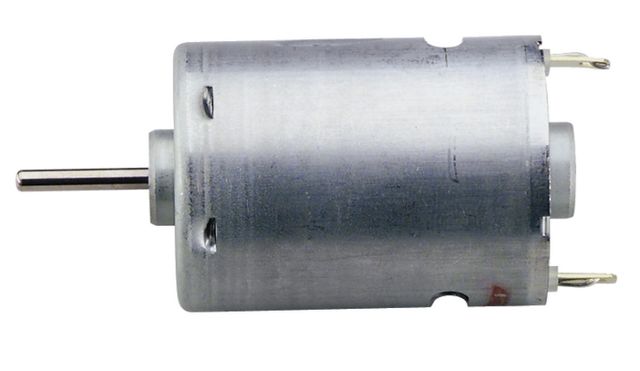

T-400 7.2-8.4v Ferrite Motor
click to enlarge
The T-400 is a 7.2 to 8.4V motor featuring bronze bushing, single wind armature, solid can, fixed timing, and factory installed capacitors.
This is the T-400 7.2-8.4 volt Ferrite Motor from Great Planes. Designed for use with the Park Flyer airplanes or other models that require a Speed 400 size motor. FEATURES: Bronze bushings Single-wind armature Solid can Fixed timing Factory-installed capacitors INCLUDES: One T-400 Ferrite motor REQUIRES: Park Flyer aircraft Wire lead and 2-pin female connector (GPMM3107) Electronic Speed Control For a gearbox SPECS: Can Size: 380 Can Length: 43.18mm (including bushing flanges) Can Diameter: 27.55mm Shaft Length: 13.8mm Shaft Diameter: 2.32mm COMMENTS: Motor does not have replaceable brushes, fan or coreless design. (+) Positive lug is marked with a RED dot just above the lug. JAL 1/5/01 ir/jl updated 21304tjt updated 122704tjt Updated 032805jim
