GPMG0310

T-370 6.0-9.6v Ferrite Motor

Product Info
GREAT PLANES

GPMG0310
T-370 6.0-9.6v Ferrite Motor
By GREAT PLANES
$13.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motors
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$13.99
Warehouse ?
Stock availability for pick up
0
$13.99
Warehouse ?
0
$13.99
Store - Charlottetown ?
0
$13.99
Store - Edmonton ?
0
$13.99
Store - Mississauga ?
0
$13.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
30 T
Windings:
29,000 rpm
Max RPM (no load):
2 mm
Shaft Diameter:
25 mm
Width:
30 mm
Length:
44 g
Weight:
6-9.6 v
Voltage Range:

FEATURES
  • Perfect for small electric R/C planes
  • Ferrite magnets
  • Counter clockwise rotation
VENDOR TECHNOTES

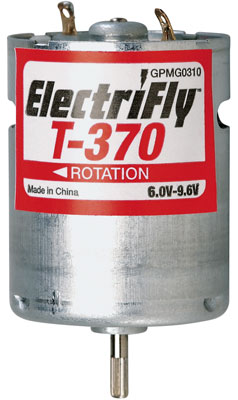

         This is the Great Planes ElectriFly 6.0-9.6V Ferrite Motor.

FEATURES: Larger diameter winds with fewer turns produces high torque for
powering small electric R/C planes and medium size Park Flyers
Constructed with Ferrite magnets
Forward (counter-clockwise) rotation
Can be used with a gear drive
Operates on 6.0-9.6V DC input

INCLUDES: One Great Planes ElectriFly 6.0-9.6V Ferrite Motor with capacitors
and Red 2-pin connector pre-installed

REQUIRES: Installing in model and connecting to speed control

SPECS: Windings: 30 turns of .47mm wire
Maximum RPM (unloaded): 29,000
Rotation Direction: Counter-clockwise
Output Shaft Diameter: .079" (2mm)
Output Shaft Shape: Round
Can Diameter: .96" (24.4mm)
Can Length: 1.2" (30.8mm)
Endbell Type: Closed
Weight: 1.55oz (44g)

jxs 3/16/04
ir/jxs


735557303105 0735557303105
GPMG0310
