GPMA1806

Rifle 1M EP Sport ARF

Product Info | Replacement Parts
RESOURCES

Replacement Parts (6)
GREAT PLANES

GPMA1806
Rifle 1M EP Sport ARF
By GREAT PLANES
$244.99 CAD    257.99
Save $13.00 (5%)

Order Quantity:
No Picture Available

More like this... ARF Park Flyer Electric Aircraft
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
1
$244.99
Warehouse ?
Stock availability for pick up
1
$244.99
Warehouse ?
0
$244.99
Store - Charlottetown ?
0
$244.99
Store - Edmonton ?
0
$244.99
Store - Mississauga ?
0
$244.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
39.5 in
Wingspan:
174 sq in
Wing Area:
22 oz/ft²
Wing Loading:
30.5 in
Length:
750 g
Weight:
4 or more Channels
Radio Requirements:
GPMG5220 recommended
Brushless Motor Requirements:
50A
ESC Requirements:
2200mAh 2s - 3s
Battery Requirements:

FEATURES
  • Reaches 130+ mph (209 km/h) using the recommended "speed" power setup.
  • Optional "sport" setup reduces weight and power for regular sport flying and
  • extended flight times, in a 90-100 mph (145-161 km/h) speed range.
  • Dual aileron servos simplify setup and increase precision – and allow the use of
  • spoilerons with a computer radio for slower, shorter landing approaches.
  • Lightweight, unusually durable composite construction.
  • Carbon-fiber wing spar adds rigidity for bone-chilling, high-G pylon turns.
  • Low parts count and prehinged control surfaces offer fast, easy assembly.
  • Connectorless linkages provide security and simplicity.
  • Includes machined aluminum spinner and complete hardware.
  • Bright, high-visibility trim scheme.

The original, 31" span Great Planes Rifle scored big with pilots looking for fast, full-throttle fun…without needing expensive electronics and spending hours in the workshop prior to flight. This one-meter version offers a larger size for better handling and visibility, easier landings, improved gliding performance, and even faster speeds. It all adds up to a lot of adrenaline-pumping aircraft action!

WARNING: The Rifle 1M requires advanced flying skills and is not suitable for beginning or intermediate pilots. In the Speed Configuration at sea level it reaches 130+ mph (209 km/h) speeds – or 90+ mph (145 km/h) in the Sport Configuration – and should be flown only at an approved AMA flying site. Because it can quickly disappear from sight, pilots should remain focused on the plane at all times

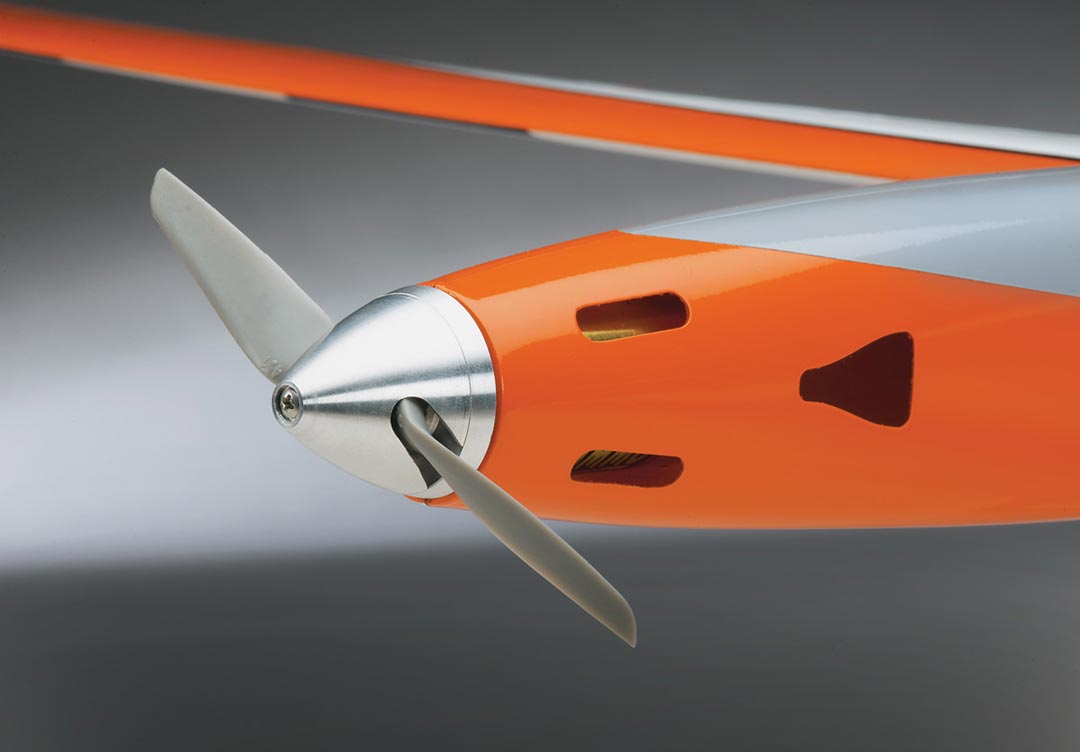

Factory-cut inlets and exits allow air to pass through the battery compartment and keep on-board electronics cool. The machined aluminum spinner is included as part of the model's hardware package.

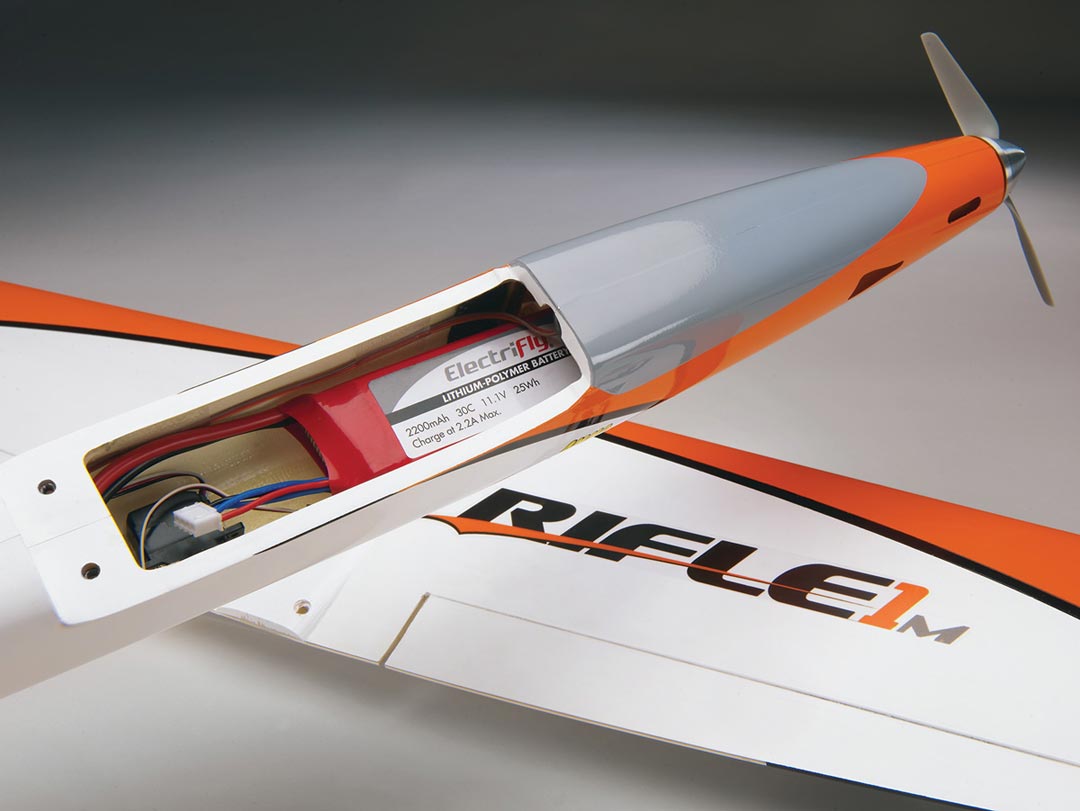

The Rifle 1M can be flown with widely available, economical electronics. Removing the wing allows easy access to the spacious on-board compartment, which greatly simplifies installation of on-board components. A custom tool is also included for easy battery removal!

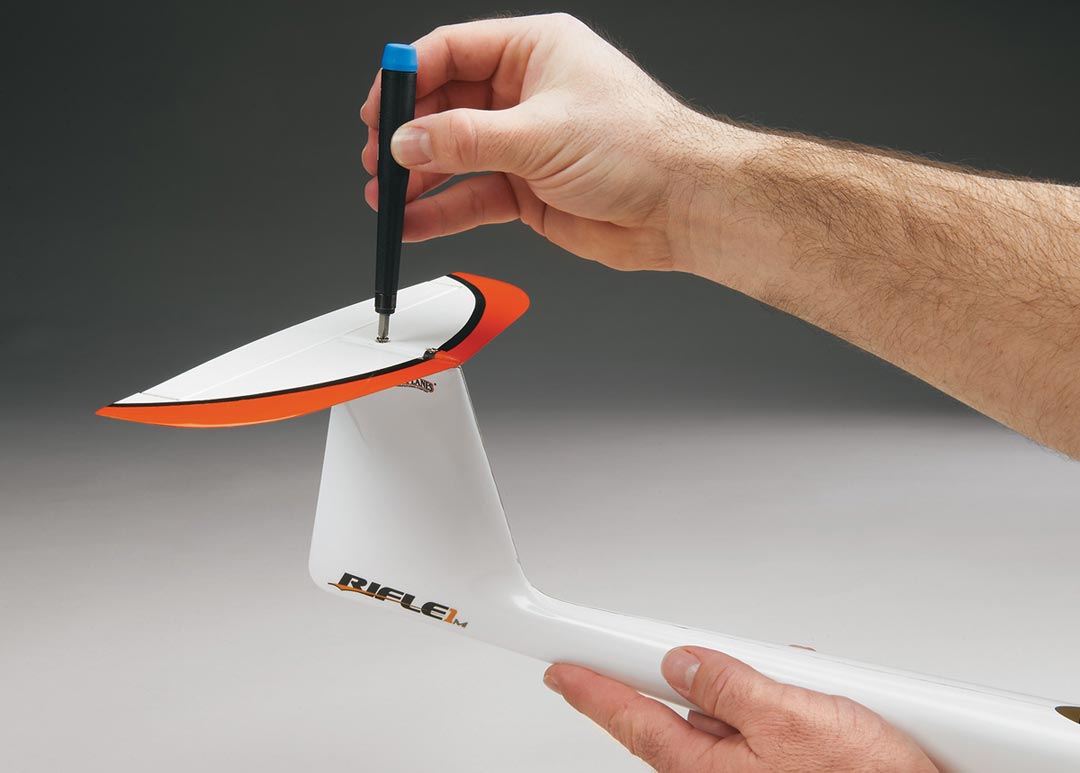

Final assembly requires very little time and effort. Both the wing and stabilizer bolt into place and align automatically. All control surfaces are factory-hinged.

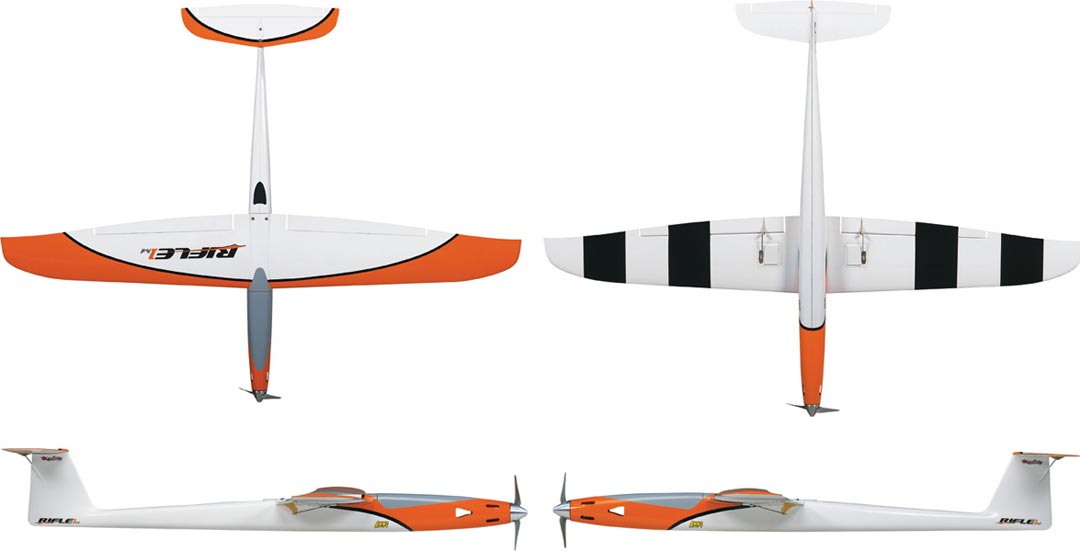

The Rifle 1M features lightweight, durable fiberglass and foam composite construction. Its large, one-meter wing has broad black stripes on the bottom – helping you follow its orientation and stay cool and calm at the controls.


VIDEO



click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES
      This is the Electric Powered, Radio Controlled, Almost Ready to Fly
Rifle 1M 1 Meter Sport Electric Airplane.

**For advanced pilots only, not suitable for beginning or intermediate pilots**
**In the Speed Configuration at sea level it reaches 130+ mph (209 km/h)**
**speeds-or 90+ mph (145 km/h)in the Sport Configuration**
**and should be flown only at the flying site of an AMA-chartered club.**
**Because this model can quickly disappear from sight, pilots should**
**remain focused on the plane at all times.**

FEATURES: Construction: Fiberglass and foam composite
Wings: One-piece with prehinged ailerons, and carbon fiber wing spar
Aileron Control: Dual servo
Spinner: Machined aluminum, 1.2" (29.5mm) diameter, silver in color
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.

INCLUDES: ARF Rifle 1M Sport Electric Airplane, Spinner, One-Piece Wing
Tail Section, Decals and Instruction Manual

REQUIRES: Radio: 4-5 channel with 3 micro servos, and programmable mixing
Motor: Brushless, Ammo 28-45-3600 recommended
ESC: 50A
LiPo Battery: 2S-3S 2200mAh
Battery Charger: Compatible with selected battery

SPECS: Wingspan: 39.5" (1000mm)
Wing Area: 174 sq in (11.2 sq dm)
Weight Range: 25-28 oz (710-795 g)
Wing Loading: 20.7-23.2 oz sq/ft (63-71 g sq/dm)
Length: 30.5" (775mm)
Center of Gravity (CG): 1-3/16" (30mm) from the leading edge of the
wing at the fuselage
Control Throws: Low Rate High Rate
Elevator: Up & Down 3/16" (5mm) 11 Up 5/16" (8mm) 18
Down 1/4" (6.5mm) 14
Ailerons: 3/16" (5mm) 9 5/16" (8mm) 16
Spolierons: 5/16" (8mm) 16 Up
(1/16" (1.5mm) 3 Up Elevator Mix)

jxs 01/31/13
ir/jxs
735557018061 0735557018061
