GPMA1209

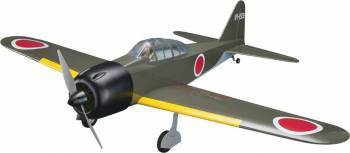

Zero Sport Fighter .46/EP ARF

Product Info | Replacement Parts
RESOURCES

Replacement Parts (12)
GREAT PLANES

GPMA1209
Zero Sport Fighter .46/EP ARF
By GREAT PLANES
$204.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARF Scale R/C Aircraft 40-50
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$204.99
Warehouse ?
Stock availability for pick up
0
$204.99
Warehouse ?
0
$204.99
Store - Charlottetown ?
0
$204.99
Store - Edmonton ?
0
$204.99
Store - Mississauga ?
0
$204.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
56.6 in
Wingspan:
537 sq in
Wing Area:
23 oz/ft²
Wing Loading:
46 in
Length:
4 or more Channels
Radio Requirements:
Four mini size, five if using glow engine
Servo Requirements:
.46-.55 cu in
2-Stroke Engine Requirements:
.70 cu in
4-Stroke Engine Requirements:
GPMG4700 recommended
Brushless Motor Requirements:
60A+
ESC Requirements:
3300 - 4000 mAh 4s
Electric Flight Battery Requirement:
13 x 8e
Propeller Size:


VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES
           This is the Glow or Electric Powered, Radio Controlled
Almost Ready to Fly Zero Sport Fighter from Great Planes.

FEATURES: Construction: Balsa and ply
Wing: One-piece, plywood wing joiner
Aileron Control: Dual servo
Landing Gear: Main, prebent wire with 3" (76mm) diameter wheels
tail gear, prebent wire with 1" (25.4mm) diameter wheel
Cowl: Painted fiberglass
Motor Mount: Plywood
Engine Mount: Two-piece composite plastic
Fuel Tank: Approximately 8oz (240cc)
Spinner: Black plastic construction 2.5" (63mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship
at the date of purchase. This warranty does not cover any
component parts damaged by use or modification.

INCLUDES: ARF Zero Sport Fighter, Cowl, Canopy, Landing Gear, Wheels, Decals,
Fuel Tank, Motor Mount, Engine Mount and Instruction Manual

REQUIRES: Radio: 4-5 channel
Servos: Four mini, five if using glow engine
6" (150mm) Extensions: Four for aileron servos
Receiver Battery: 4-cell at least 2000mAh if using glow engine
Electric Power;
Brushless Motor: Great Planes RimFire .32 42-50-800 recommended
ESC: 60A
Battery: 4S LiPo, 3300-4000mAh
Charger: Compatible with selected battery
Propeller: 13x8E
Glow Power;
Engine: .46-.55 2-stroke OR .70 4-stroke
Muffler: Pitts style
Propeller: Compatible with selected engine
Servo: Mini, for throttle
Glow fuel, glow starter, building and field equipment

SPECS: Wingspan: 56.6" (1435mm)
Length: 46" (1170mm)
Wing Area: 537 sq in (34.6 sq dm)
Wing Loading: 21-25 oz/sq ft (64-76 g/sq dm)
Center of Gravity (CG): 3-4" (75-100mm) back from leading edge of
wing measured at the fuselage side

Control Throws: Low High
Elevator (up & down): 3/8" (10mm) 11 5/8" (16mm) 19
Aileron (up & down): 1/4" (6mm) 11 1/2" (13mm) 21
Rudder (right & left) 1" (25mm) 12 1-3/4" (44mm) 21

COMMENTS: If a replacement fuel tank is needed the Sullivan 8oz (SULQ1427),
or the DuBro 8oz (DUBQ0208) can be used.
Some modification and trimming to the fuselage may be
required when installing any aftermarket tank.
