GPMA1205

Sport Scale P-51 Mustang ARF

RESOURCES

Items Required to Complete (11)
Replacement Parts (6)
Optional Items (3)
GREAT PLANES

GPMA1205

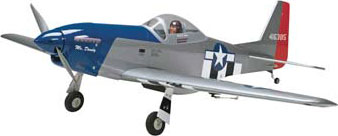

Sport Scale P-51 Mustang ARF
By GREAT PLANES
Discontinued
No Picture Available

More like this... ARF Sport R/C Aircraft 40-50
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$226.99
Warehouse ?
Stock availability for pick up
0
$226.99
Warehouse ?
0
$226.99
Store - Charlottetown ?
0
$226.99
Store - Edmonton ?
0
$226.99
Store - Mississauga ?
0
$226.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
56 in
Wingspan:
543 sq in
Wing Area:
28-31 oz/ft²
Wing Loading:
50 in
Length:
6.5-7.25 lbs
Weight:
.40-.55 cu in
2-Stroke Engine Requirements:
.70 cu in
4-Stroke Engine Requirements:
4-channel
Radio Requirements:
4-5 servos
Servo Requirements:

FEATURES
  • Smooth flight characteristics.
  • Fast and easy to assemble.
  • Includes mounting hardware for glow or electric power.

Combat-tough and easy to assemble, this 56" span P-51 combines smooth sport flight habits with looks that evoke edge-of-your-seat warbird excitement. Its two-piece, balsa-sheeted foam wing has been covered in MonoKote® film, while the detailed cockpit includes an instrument panel, headrest and “ace" pilot figure. Performance is first-rate, too — whether you install glow or electric power!


VIDEO





PRODUCT RESOURCES
VENDOR TECHNOTES
 This is the radio controlled, glow or electric powered, almost ready to fly
Great Planes P-51 Mustang Sport Scale Airplane.

FEATURES: Construction: Balsa and ply
Wings: Two-piece balsa sheeted foam with aluminum wing joiner
Aileron Control: Dual servo
Cowl: Painted fiberglass
Canopy: Clear with painted frame lines and painted pilot bust
Covering: Top Flite MonoKote
Motor Mount: Assembled plywood
Engine Mount: Two-piece adjustable nylon
Landing Gear: Prebent wire
Wheels: Three foam, two main 3" (76mm) diameter, one 1" (25.4mm)
tailwheel
Fuel Tank: 9.1oz (270cc)
Spinner: 3" (76mm) plastic, blue in color
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification

INCLUDES: ARF Great Planes P-51 Mustang Sport Scale Airplane with Pilot Bust,
Fuel Tank, Wheels, Spinner, Motor Mount, Engine Mount, Decals and
Instruction Manual

REQUIRES: Radio: At least 4-channel
Servos: 4-5 standard size, ball bearing recommended (2-aileron, 1-
rudder, 1-elevator, 1-throttle (if using glow engine)
6" (152mm) Extensions: Two for aileron servos
Y-Harness: One for aileron servos if using radio without mixing
functions
Glow Power-
Engine: .40 - .55 cu in (6.5 - 9 cc) two stroke OR
.70 cu in (11.5cc) four-stroke, glow specific prop, fuel,
Electric Power-
Motor: Rimfire .55 (42-60-480) brushless outrunner with 13x10 prop,
ESC, two LiPo Batteries and Charger
Building and field equipment

SPECS: Wingspan: 56" (1420mm)
Length: 50" (1270mm)
Wing Area: 543 sq in (35 sq dm)
Wing Loading: 28 - 31oz/sq ft (85 - 95g/sq dm)
Weight: 6.5 - 7.25lbs (2950 - 3290g)
Center of Gravity (CG): 4-11/16" (119mm) back from the leading edge
of the wing at the fuselage sides
Configuration: Low wing
Airfoil: Semi-symmetrical
Control Throws- Low Rate High Rate
Ailerons: 1/4" (6mm) 9 5/16" (8mm) 11
Rudder: 1-7/16" (37mm) 27 1-7/8" (48mm) 36
Elevator: 5/16" (8mm) 9 7/16" (11mm) 12

COMMENTS: Following are the Top Flite MonoKote colors used to cover this model
and order numbers for 6' rolls;
Aluminum, TOPQ0205 Sapphire Blue, TOPQ0226
White, TOPQ0204 Missile Red, TOPQ0201
Black, TOPQ0208

jxs 02/07/11
ir/jxs
735557012052 0735557012052
GPMA1205
