Revolver 46-70/EP Sport ARF

Product Info | Required Items | Replacement Parts

Revolver 46-70/EP Sport ARF
Click to Enlarge
click to enlarge

More like this... ARF Sport R/C Aircraft 40-50
But only from... GREAT PLANES
All items from... GREAT PLANES

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Revolver 46-70 ARF Fuselage
Revolver 46-70 ARF Tail Set
Revolver 46-70 ARF Landg Gear
Revolver 46-70 ARF Wheel Pants
Revolver 46-70 ARF Canopy
Revolver 46-70 ARF Wing Set
Revolver 46-70 ARF Spinner
Revolver 46-70 ARF Decals
59 in
563 sq in
Wing Area:
6-7 lbs
Flying Weight:
25-29 oz/ft²
Wing Loading:
48 in
.46-.55 cu in
Engine 2C:
.70 cu in
Engine 4C:
Rimfire 42-60-800
Brushless Motor:
80A Brushless
ESC Requirements:
4-channel 5-servo
Radio Requirements (glow):
4-channel 4-servo
Radio requirements (brushless):

  • Almost ready to fly
  • Balsa and ply construction
  • Two-piece wing; foam core and balsa sheeted with aluminum wing tube
  • Pre-painted fiberglass cowl
  • Plywood reinforced radio compartment
  • Pre-formed composite landing gear

Sleek, contemporary lines make the Revolver a real standout on the flight line. Once airborne, it really takes center stage — regardless of whether it's equipped with a glow engine or brushless motor!

Other Videos:

click image to enlarge

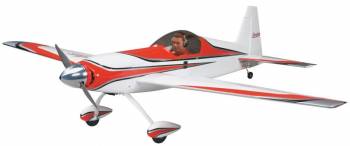

 This is the radio controlled, glow or electric powered, almost-ready-to-fly,
Great Planes Revolver Sport Aerobatic Airplane.
For Average Sport Pilots.

FEATURES: Construction: Balsa and ply
Wings: Two piece, foam core balsa sheeted, aluminum wing tube
Cowl: Painted fiberglass
Covering: Factory applied Top Flite MonoKote
Radio Compartment: Plywood reinforced
Landing Gear: Pre-formed composite
Wheels: Two main 2.71" (69mm) diameter, one 1.18" (30mm) tail wheel
Wheel Pants: Painted and constructed of fiberglass
Spinner: 3.25" (83mm) diameter aluminum
Canopy: Vacuum formed, tinted
Aileron Control: Dual servo
Tail Group: Airfoil shaped tail surfaces for better tracking
Fuel Tank: Approximately 16oz (480cc)
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase.

INCLUDES: Pre-built and covered wings, fuselage and tail assemblies, pushrods,
pre-bent main landing gear, main and tail wheels, wood servo trays,
two wheel pants, fiberglass cowl, hardware package,engine mount,
pilot, fuel tank, photo-illustrated instructions and decal sheet

REQUIRES: Engine: .46 -.55 cu in (7 - 9cc) two stroke OR
.70 cu in (11.5cc) four stroke OR brushless motor (see below)
Muffler: Pitts type (BISG4046)
Motor: Brushless type Great Planes RimFire 42-60-800 (GPMG4725)
Motor Mount: Medium size, (GPMG1255)
Electronic Speed Control: 80A (GPMM1860)
Radio: 4-channel minimum
Servos: 4 standard size coreless ball bearing for electric operation,
one extra servo required for throttle if using glow engine
6" (152mm) Servo Extension: (HCAM2701)
Y-Harness: One for aileron servos (HCAM2751)
Battery: Two 3200mAh 11.1V Balanced LiPo
Equinox LiPo Cell Balancer:
Adapter: Deans U Adapter 2 to 1 (GPMM3143)
Battery Charger: LiPo compatible
Propeller: Glow, size depending on engine selected
Electric, 11.5x5 (APCQ1055)
Misc. Items: Building and field equipment

SPECS: Wingspan: 59" (1500mm)
Wing Area: 563 sq in (36 sq dm)
Flying Weight: 6 - 7lb (2720 - 3180g)
Wing Loading: 25 - 29 oz/sq ft (76 - 88 g/sq dm)
Length: 48" (1220mm)
Airfoil: Semi symmetrical
Center of Gravity: 4-5/16" (110mm) Back from the leading edge of the
wing at the fuselage
Control Throws: Low Rate High Rate
Elevator: Up & Down, 5/16" (8mm) 1/2" (13mm)
Rudder: Right to Left, 1-3/8" (35mm) 2-1/4" (57mm)
Ailerons: Up & Down, 1/4" (6mm) 3/8" (10mm)

COMMENTS: If a replacement fuel tank is needed, order the Sullivan 16oz Slant
Type Flextank (SULQ1743), or the DuBro 16oz tank (DUBQ0216).
Some minor trimming and modifications may be required.

jxs 5/12/07
tlw 7/26/07
updt jxs 11/13/09
