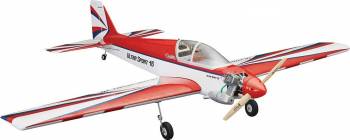

Ultrasport .46/EP Sportflier ARF
click to enlarge
564 sq inWing Area:
22-26 oz/ft²Wing Loading:
4 or more ChannelsRadio Requirements:
5 Standard HD + 1 RetractServo Requirements:
.46-.55 cu in2-Stroke Engine Requirements:
.70 cu in4-Stroke Engine Requirements:
9 ccGasoline Engine Requirements:
Rimfire 55Brushless Motor Requirements:
60 AmpESC Requirements:
22.2 3800mah+Electric Flight Battery Requirement:
- Flies well with glow OR electric power.
- Included mechanical retracts enhance performance and style.
- Large hatch for easy access to on-board gear and battery.
- The symmetrical airfoil offers a wider aerobatic range.
For years the Ultra Sport has been the epitome of what a sport aerobatic airplane should be: quality construction, versatile performance and contemporary style. The 4th iteration of the Ultra Sport incorporates the most up-to-date features, resulting in an Almost-Ready-to-Fly model that sport pilots and veterans alike will enjoy
This is the Radio Controlled Glow or Electric Powered Almost Ready to Fly Ultra Sport 46 from Great Planes. FEATURES: Construction: Balsa and ply Wing: One-piece with two plywood wing joiners Aileron Control: Dual servo Covering: High quality self-adhesive Landing Gear: Mechanical prebent wire retracts with 2.75" (70mm) diameter main foam wheels, and 1" (25.4mm) diameter foam tailwheel Cowl: Fiberglass, painted to match color scheme of covering Canopy: Clear with painted-on frame lines and painted pilot bust Motor Mount: Plywood Engine Mount: Two-piece composite Fuel Tank: 9.1oz (270cc) Spinner: 2.75" (70mm) diameter plastic, red in color Warranty Period: Great Planes Model Manufacturing guarantees this kit to be free from defects in material and workmanship at the date of purchase. This warranty does not cover any components damaged by use or modification. INCLUDES: Preassembled Wing, Fuselage and Tail Sections, Retractable Landing Gear, Wheels, Fuel Tank, Spinner, Decals, Landing Gear, Canopy, painted Pilot Bust and Instruction Manual REQUIRES: Radio: 4-6 channel Servos: Five with at least 54 oz-in of torque and one retract servo Y-Harness: For ailerons Building and field equipment Electric Power; Great Planes RimFire .55 (42-60-480) Outrunner Brushless ESC: To match selected motor Battery: 6S at least 3800mAh Battery Charger: To match selected battery 6" Servo Extension: One for ESC LiPo Charging Bag, Propeller Glow Power; .46 - .55 cu in (7 - 9cc 2-stroke glow engine OR .70 ( 11.5 cc) 4-stroke glow engine Propeller, On/Off Switch, Charge Receptacle, Receiver Battery SPECS: Wingspan: 55" (1395mm) Wing Area: 564 sq in (36.4 sq dm) Wing Loading: 22-26 oz/sq ft (67-79 g/sq dm) Length: 49.5" (1255mm) Weight Range: 5.5 - 6.5lbs (2.4 - 2.9kg) Airfoil: Symmetrical Center of Gravity (CG): 2-7/8" - 3-1/2" (73mm - 89mm) behind the leading edge of the wing measured at the fuselage Control Throws- Low Rate High Rate Elevator, Up & Down: 1/4" (6mm) 7° 1/2" (13mm) 14° Rudder, Right to Left: 1" (25mm) 14° 1-5/8" (41mm) 24° Ailerons, Up & Down: 5/16" (8mm) 16° 1/2" (13mm) 26° jxs 01/12/17 ir/jxs
