SPECIFICATIONS
24 Channels
Channels:
ACCST D16/ACCESS
Modulation:
2.4 GHz
Band:
213 mm
Length:
225 mm
Width:
112 mm
Height:
950 g
Weight:
240mA@7.4V
Operating Current:
6.5-8.4 V
Voltage Range:
480*272
Backlit LCD resolution:
FEATURES
High-speed module digital interface with installed ACCESS protocol
Supports spectrum analyzer function
Supports wired training function
New PARA wireless training system
High-speed training system with a lower latency
Compatible with FrSky Free Link App and AirLink S via mobile devices
Dual internal antennas and a single detachable external antenna work in unison to create a robust link
Antenna detection and SWR warning
Industrial LCD: 480*272 readable outdoor color screen
Supports 2S Li-battery balancing charge with Mini USB interface
Easily accessible battery compartment (*Batteries not included)
MC12P all CNC digital higher accuracy ten bearings hall sensor gimbals and extendable stick ends

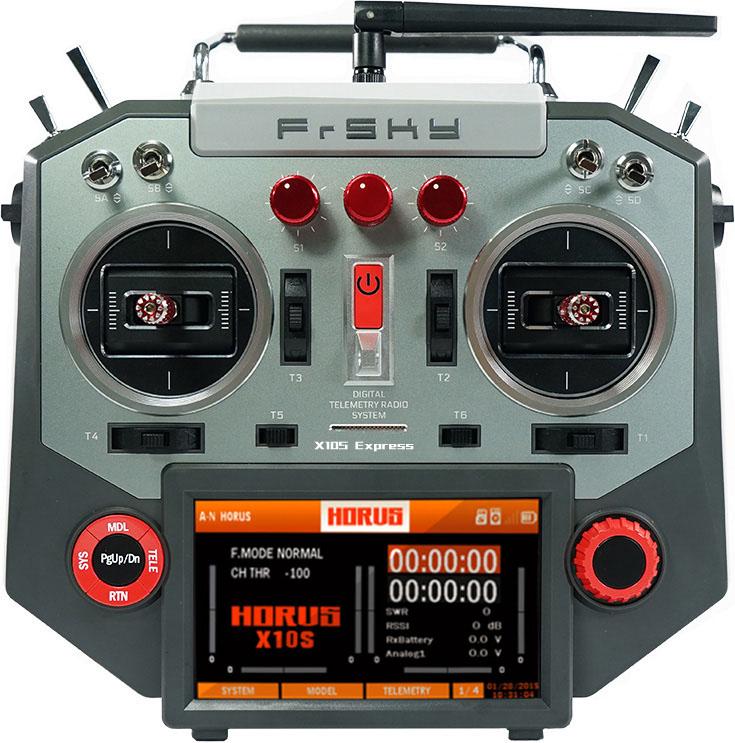

With the demand for further extending the legacy of the Horus Series Transmitters, the Horus X10/S Express version was born. With many new updates like applying the ACCESS protocol and hardware tweaks.
Horus X10/S Express use the ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency equipped with a high-speed module digital interface. Along with the new spectrum analysis function and added FrOS/OpenTX firmware, it is now possible to check the airwaves for RF noise.
Both X10 and X10S Express support balancing charge for 2S Li-ion battery via a collateral USB cable. The accessible battery compartment design is another change worth mentioning, with two 18650 Li-ion batteries you can expect to be able to fly all day. The Express carries forward all of their predecessor’ features like the industrial LCD color screen, and the highly-accuracy M10/MC12P hall sensor gimbals which offer the most precise control. Additionally, it features a remarkable PARA wireless trainer function which also makes them compatible with the FrSky Free Link App and AirLink S. All that makes the Express version an ideal transmitter for, gliders, helis, multirotor and every type of fixed-wing imaginable.
