EVOE777

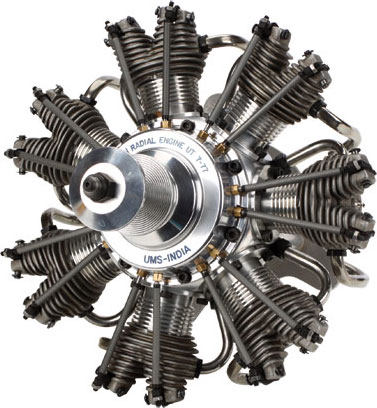

77cc 7-Cylinder Radial 4-Stoke Glow Engine

Product Info | Replacement Parts | Optional Items
EVOLUTION

EVOE777
77cc 7-Cylinder Radial 4-Stoke Glow Engine
By EVOLUTION
$1,729.99 CAD    1859.99
Save $130.00 (7%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... 4-C Glow Aircraft Motors Multi-Cylinder
But only from... EVOLUTION
All items from... EVOLUTION


 Inventory Status Legend
StockStock availability for on-line ordering
0
$1,729.99
Warehouse ?
StockStock availability for pick up
0
$1,729.99
Warehouse ?
0
$1,729.99
Store - Stratford ?
0
$1,729.99
Store - Edmonton ?
0
$1,729.99
Store - Mississauga ?
0
$1,729.99
Store - Ottawa ?
0
$1,729.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Rocker Arm Sub Assembly 7-77/9-99
$18.99

7-77 Glow Ignition Harness
$39.99

Prop Extension 10mm (0.4") 7-77&9-99 Radial
$84.99

Prop Extension 25mm (1.0") 7-77 & 9-99 Radial
$84.99
SPECIFICATIONS
23.7 mm
Bore:
25.0 mm
Stroke:
1300-6500 RPM
RPM Range:
5.7 lbs
Weight:
2 blade 24 x 8, 24 x 10 - 3 blade 22 x 8
Prop Range:

FEATURES
  • Cylinder head and crank cases produced from aircraft grade alloys
  • Heavy duty double bearing crankshaft
  • Billet aluminum pistons and hardened steel rings
  • Hard chromed and lapped cylinder bores
  • Hardened steel cams
  • Carburetor jet valve incorporating of latest design with a split opening for smooth acceleration
  • Zero percent or low nitro (5-10%) fuel with low oil content (5-7% oil/fuel ratio)

A stunning engine with solid performance and reliability – the 7 Cylinder 77cc 4-stroke glow radial engine is designed for larger models, specifically scale applications that the use of a radial engine in a round cowl will provide the ultimate scale look for the modeler’s plane. While providing great looks and sound, it also delivers the dependability and performance of Evolution.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
605482041222 0605482041222
