EFLG100

10 - 15 Main Electric Retracts

Product Info | Replacement Parts | Fits What?
RESOURCES

Replacement Parts (4)
Fits What? (2)
Manual/Diagram
Manual.
E-FLITE

EFLG100

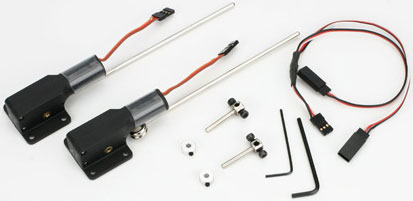

10 - 15 Main Electric Retracts
By E-FLITE
$94.99 CAD    99.99
Save $5.00 (5%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Accessories, Retracts Mains
But only from... E-FLITE


 Inventory Status Legend
Stock availability for on-line ordering
0
$94.99
Warehouse ?
Stock availability for pick up
0
$94.99
Warehouse ?
0
$94.99
Store - Charlottetown ?
0
$94.99
Store - Edmonton ?
0
$94.99
Store - Mississauga ?
0
$94.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
10-15 Size Aircraft
Application:
4.8V (1.25 seconds), 6.0V (1.0 seconds), 7.4V (.80 seconds)
Speed:
87.8 g
Weight:
Electric Brushed
Motor Type:
JR, universal
Connector Type:
Metal
Gear Type:
5mA
Current Draw Idle:
200mA
Current Draw Stall:
4.8-7.4 V
Voltage:

FEATURES
  • Robust landing gear strut and mounting bracket
  • Integrated electric motor with a micro PCB
  • Built-in overcurrent protection
  • Aircraft Weight: 2.00 - 4.50 lb (0.90 - 2.00kg)
  • Strut Diameter .118 inch (3mm)

 You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite’s completely self-contained retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.
