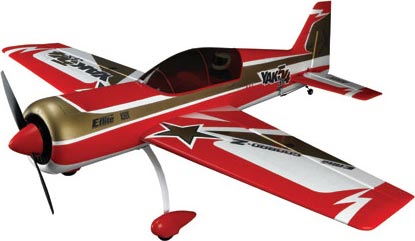

Carbon-Z Yak 54 3X PNP

Product Info | Replacement Parts

Carbon-Z Yak 54 3X PNP
Click to Enlarge
click to enlarge

More like this... ARF Park Flyer Electric Aircraft
But only from... E-FLITE
All items from... E-FLITE

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
13g Digital Micro Servo
Electric Propeller 12x5.25 C-Z Yak 54 AS3X
60-Amp Pro Switch-Mode BEC Brushless ESC (v2)
Yak 54 C-Z Servo Arm
Yak 54 C-Z Servo Ext Set All
Prop Adapter Carbon Z Yak-54 3X
BL25 Outrunner Motor Shaft
Yak 54 C-Z Wing Tube Yak
48 in
525 sq in
Wing Area:
13.8 oz/ft²
Wing Loading:
48.5 in
3.9 lbs
25-size 1,000Kv brushless outrunner
Electric Motor Included:
ESC Included:
6 or more Channels
Radio Requirements:

  • Easy to complete, final assembly
  • CA hinged control surfaces with control links installed
  • High-output, 25-size, 1000Kv brushless Q-Power system installed
  • E-fliteĀ® 60-Amp Pro Switch-Mode BEC Brushless ESC V2 installed
  • Digital high-speed, metal gear mini servos installed
  • Vibrant, Mirco Pecorari original trim scheme

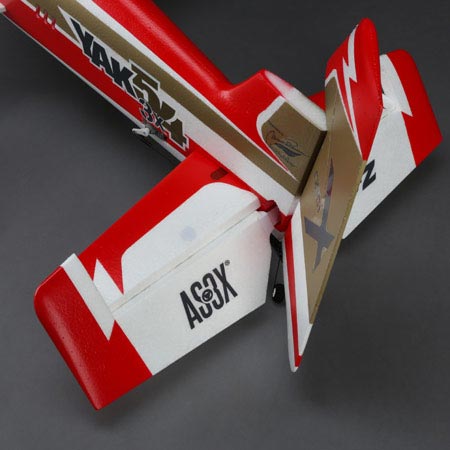

  • Plug-in wings and stabilizers
  • Cockpit details, pilot figure and tinted canopy

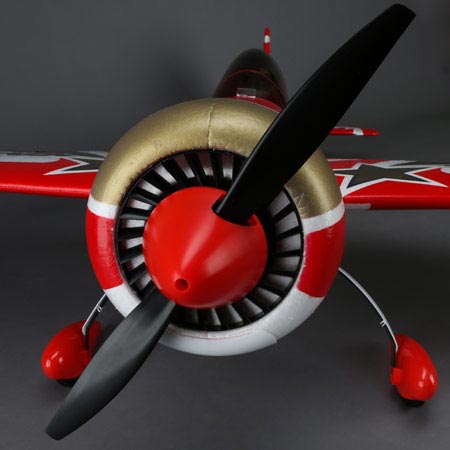

  • Smoother running, E-flite V2 propeller included
  • Taller landing gear for easier takeoff and Harrier landings

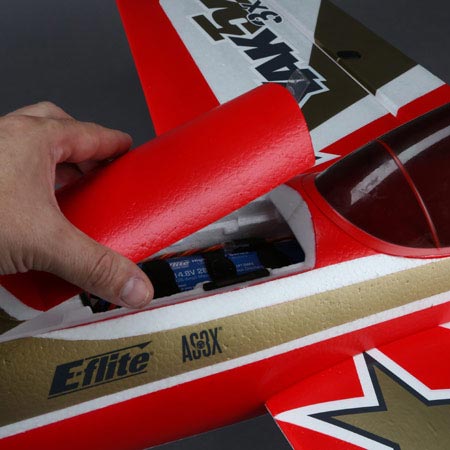

  • Multiple access hatches with magnetic and mechanical latch closure

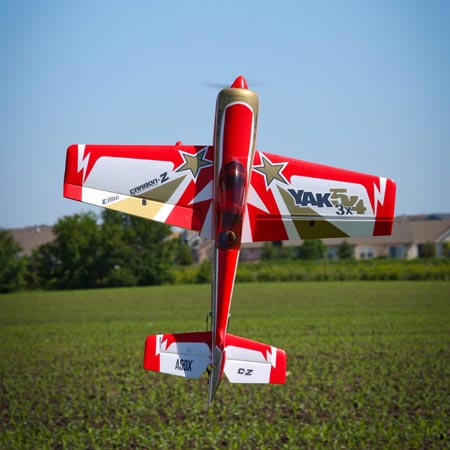

The E-flite® Carbon-Z® Yak 54 3X airplane is an exciting evolution of material and technology. An array of improvements have been made to give this model a definitive edge in performance over the groundbreaking original. Beginning with the latest in Carbon-Z construction, the entire airframe features strength enhancements that increase its durability and the ability to withstand aggressive 3D maneuvers better than ever. At the same time, engineering enhancements allowed the low wing loading and 2-to-1 power to weight ratio to be maintained. The proven E-flite 25-size outrunner motor now uses an improved ESC that features a more robust BEC so the complement of upgraded digital servos can consistently deliver peak precision. Even its propeller has been refined to deliver greater efficiency and smoother power.

The CA hinged control surfaces feature serviceable hardware with ball-links installed. The landing gear has been made slightly taller so that you can takeoff more easily from grass and perform Harrier landings with less risk to the propeller. The two-piece wings feature a carbon fiber joiner tube and bolt into place with a single socket-head screw each. Multiple access hatches with magnetic and mechanical latch closure allow easy access and quick battery changes. The original Mirco Pecorari trim scheme provides definitive attitude recognition while cockpit details, pilot figure and tinted canopy give the model a distinctive scale appearance.

Whether you’re an intermediate park pilot looking for a performance upgrade, or a 3D hotshot, the E-flite Carbon-Z Yak 54 3X is ideal. This aircraft is ready for your favorite full-range, 6-channel radio, 4S Li-Po battery and required Li-Po balance charger. For precision and agility without equal, be sure to choose the recommended Spektrum™ 6-Channel AS3X® Sport receiver (SPMAR635)—sold separately.
