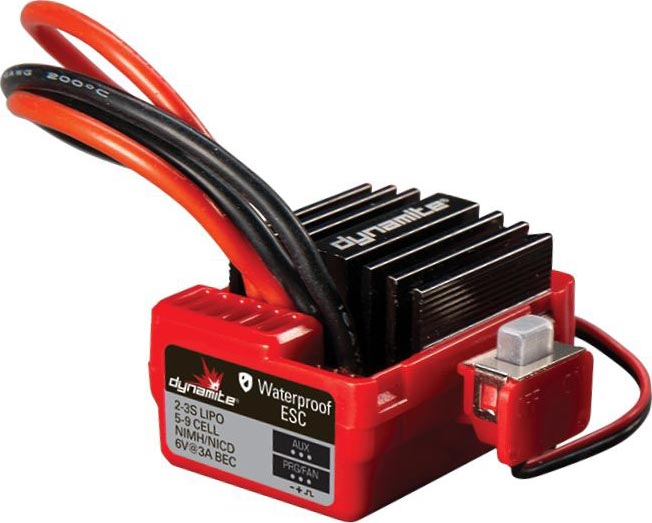

Waterproof Crawler ESC LiPo/NiMH
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
More like this... Car Electronic Speed Controls (ESC)
But only from... DYNAMITE
All items from... DYNAMITE
But only from... DYNAMITE
All items from... DYNAMITE
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|||||||||||||
SPECIFICATIONS
Brushed Crawler
Type:
40 A
Max Continuous:
180 A
Max Burst Current:
540/550 Brushed Motors
Below 8.4V; Down to 12T
Below 12.6V; Down to 35T
Compatible Motors:
Below 8.4V; Down to 12T
Below 12.6V; Down to 35T
Yes
Waterproof:
2-3 cells
LiPo Cells:
4-9 cells
NiMH/NiCd Cells:
11.4 V
Max Voltage:
3 A (peak) @ 6.0 V
Max BEC Output:
.002 mOhms
On Resistance:
68 g
Weight:
46.5 mm
Length:
34 mm
Width:
28.5 mm
Height:
IC3
Battery Connector:
3.5mm Bullet
Motor Connector:
FEATURES
NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC.
