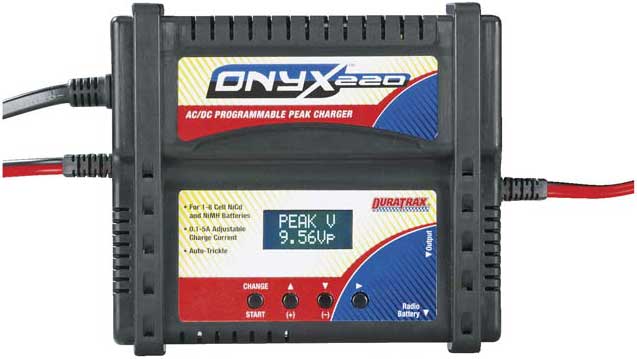

Onyx 220 AC/DC Prog Chg w/LCD
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
||||||||||||||||||||||
SPECIFICATIONS
110V AC 60Hz
AC Input:
11-15V DC
DC Input:
4-8 NiCd or NiMH cells (4.8-9.6V)
Battery Types:
50-9900mAh
Battery Capacity Range:
0.1A, 5.0A linear adjustable
Fast Charge Current:
Peak detection
Fast Charge Termination:
OFF-300 minutes
Fast Charge Safety Timer:
3 - 20mV adjustable
Peak Sensitivity:
Automatic 1/20 fast charge setting or manual
Trickle Charge Current:
4 Pushbuttons
Controls:
5
Battery Memories:
2x8 reversed LCD with backlight
Display Type:
Start, stop, errors
Audible Indicators:
Built-in lead with standard connector
Output Connections:
Built-in jack for charging 4 or 5 cell Rx packs
Output Connections:
Solid-state reverse polarity and current overload
Protective Devices:
5.7 x 5.1 x 1.8 in
Dimensions:
20.4 oz
Weight:
110V AC 60Hz
AC Input:
FEATURES
- Charges 4-8 cell NiCd or NiMH 4.8 - 9.6V cells
- Pushbutton controls
- Audible tones for easy setup and control
- Five battery memories are included for quick changes between battery types
- Fully adjustable charge currents and NiCd and NiMH flexibility for a wide range of applications
- Precise peak detection with automatic TRICKLE charge fills packs completely for optimum voltage and run time
- 3 - 20mV adjustable peak detection helps to customize charger-to-battery performance
- Built-in jack included for charging 4 or 5 cell NiCd or NiMH receiver batteries for nitro models
- Custom reversed LCD with backlight for easy viewing in any condition shows input and output voltges, peak voltage, charge current, charge capacity and time and more
- Small, lightweight switching AC power supply delivers up to 5 amps of charge current
- Solid state reverse polarity and current overload safety devices
- Five year warranty
- Comes Equipped with standard Tamiya connector
The Onyx 220 charger is great for a wide variety of applications! With adjustable charge current ranging from 0.1 to 5 amps, it’s an excellent choice for applications as small as 1/32 scale micros to 1/8 scale electrics – even nitro receiver batteries and transmitter packs! An advanced LCD with reversed characters and backlight – previously only found in top-end racing chargers – is great for use indoors or outdoors, daytime or night. A tiny, lightweight built-in switching AC power supply, combined with a DC input means the Onyx 220 can be used anywhere!
