DLEDLEG9017

DLE-170 Tuned Exhaust Complete

Product Info
DL ENGINES

DLEDLEG9017
DLE-170 Tuned Exhaust Complete
By DL ENGINES
$269.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES


 Inventory Status Legend
Stock availability for on-line ordering
0
$269.99
Warehouse ?
Stock availability for pick up
0
$269.99
Warehouse ?
0
$269.99
Store - Charlottetown ?
0
$269.99
Store - Edmonton ?
0
$269.99
Store - Mississauga ?
0
$269.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

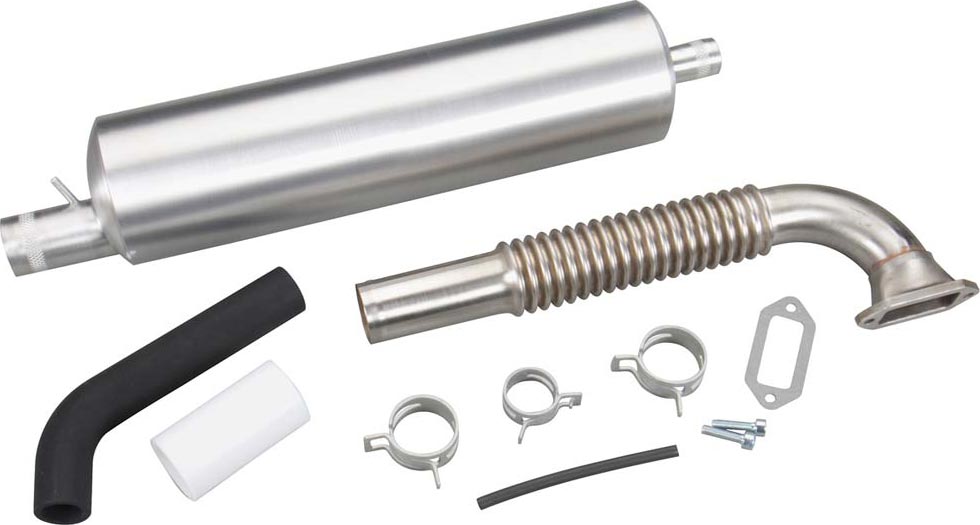

           This is the optional Tuned Exhaust Kit for use with the
DLE-85cc DLEG0085, and DLE-170cc Gasoline Engine, DLEG0170.

**NOTE The DLE-170cc is a two cylinder engine.**
**This kit is for one cylinder ONLY, two are REQUIRED per DLE-170cc engine.**

FEATURES: Brushed natural finish aluminum construction

INCLUDES: Exhaust Pipe Canister, DLEG9016
Header Pipe, DLEG9015
Silicone Coupler, 1.18"x2.56" (30mmx65mm)
Silicone Outlet Tube 20mm, DLEG9110
Three Clamps, DLEG9112 (2) 30mm, DLEG9113 (1) 20mm
Fiber Gasket
Two 5x20mm Header to Engine Mounting Screws
Smoke Tube, 1/8x4" (3mm x 100mm)

SPECS: Exhaust Pipe Length: 13.86" (352mm)
Exhaust Pipe Inlet Diameter: 3.0" (75mm)
Exhaust Pipe Outlet Diameter: 0.79" (20mm)
Header Pipe Length: 10.4" (265mm) from center of exhaust port on
cylinder
Header Pipe Diameter: 1.18" (30mm)
