DLE61-Z4

Bearing Front 6002 DLE-61

Product Info
DL ENGINES

DLE61-Z4
Bearing Front 6002 DLE-61
By DL ENGINES
$9.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES


 Inventory Status Legend
Stock availability for on-line ordering
0
$9.99
Warehouse ?
Stock availability for pick up
0
$9.99
Warehouse ?
0
$9.99
Store - Charlottetown ?
0
$9.99
Store - Edmonton ?
0
$9.99
Store - Mississauga ?
0
$9.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

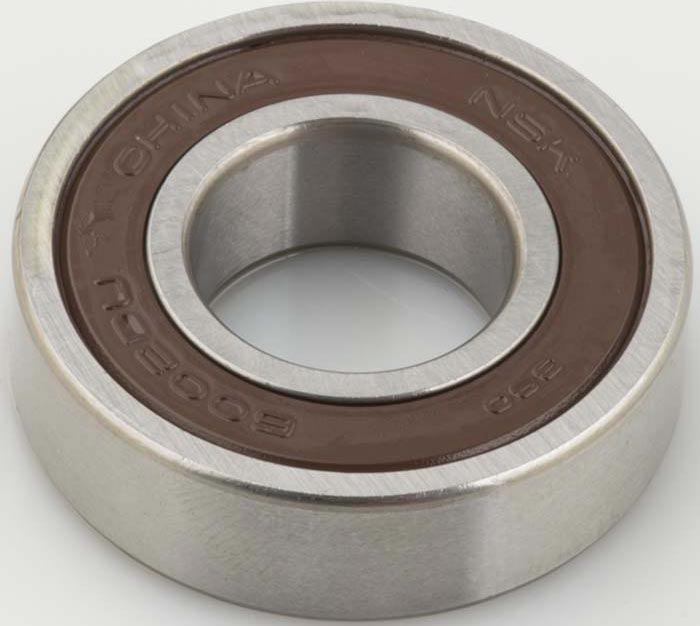

  This is the Front Ball Bearing for the DLE-61cc Gasoline Engine, DLEG0061.

FEATURES: Hardened steel construction
Installs in crankcase and supports front section of crankshaft

INCLUDES: Front Ball Bearing, key #4

SPECS: Inner Diameter: 0.63" (16mm)
Outer Diameter: 1.2" (32mm)
Thickness: 0.35" (9mm)

jxs 05/09/14
ir/jxs
667300861047 0667300861047
DLEG6104
