DLE40-S35

Engine Mount DLE-40

Product Info
DL ENGINES

DLE40-S35
Engine Mount DLE-40
By DL ENGINES
$23.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES
All items from... DL ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$23.99
Warehouse ?
StockStock availability for pick up
0
$23.99
Warehouse ?
0
$23.99
Store - Charlottetown ?
0
$23.99
Store - Edmonton ?
0
$23.99
Store - Mississauga ?
0
$23.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

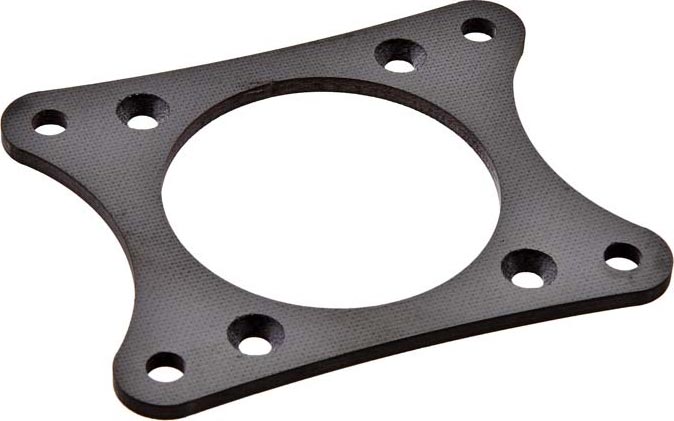

                      This is the Engine Mount for the
DLE 40cc Twin Cylinder Gasoline Engine, DLEG0040.

FEATURES: Layered carbon fiber construction
Fastens to crankcase, and with the standoffs holds the engine to the
firewall of the airplane

INCLUDES: Engine Mount for the DLE 40cc Twin Cylinder Gasoline Engine

SPECS: Distance between center of Outer Holes: 2.1" (54mm) vertical
Distance between center of Outer Holes: 2.8" (70.5mm) horizontal
Distance between center of Inner Holes: 2.0" (50.5mm) vertical
Distance between center of Inner Holes: 1.7" (44.5mm) horizontal
Thickness: 0.12" (3.2mm)

jxs 05/26/14
ir/jxs
667300840356 0667300840356
DLEG4035
