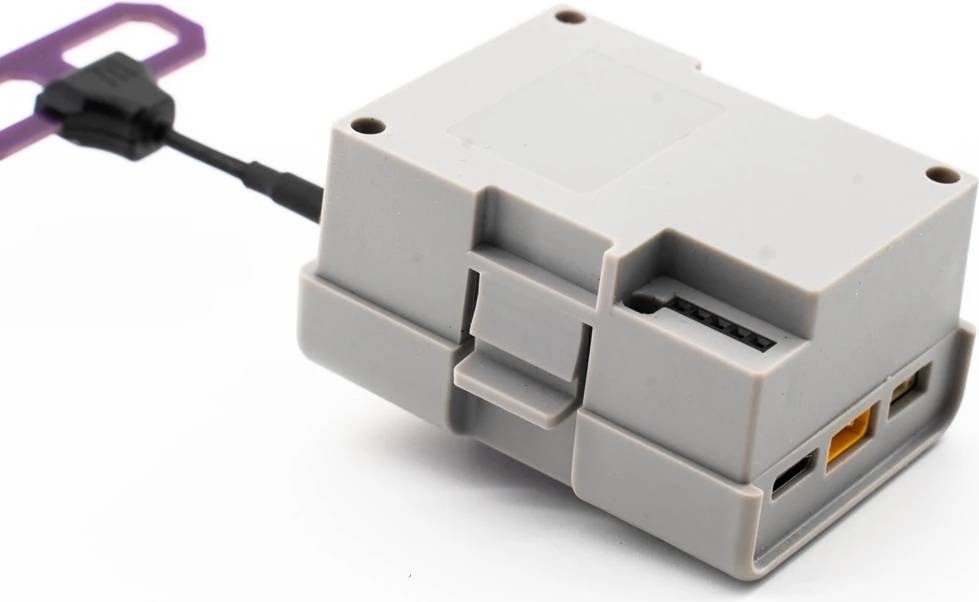

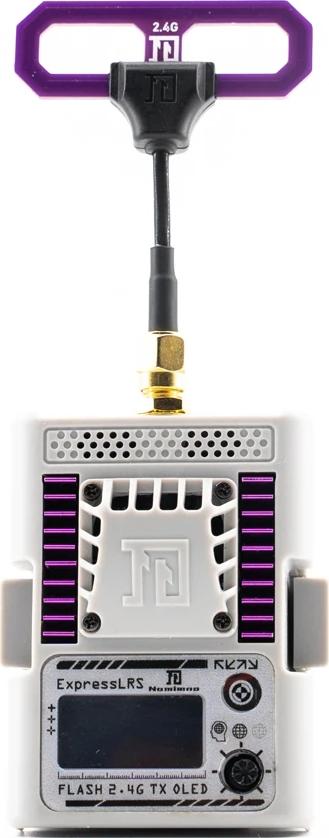

FLASH_TX is based on the open sourced EXPRESS LRS project, The hardware has been optimized and designed for real world environments, and it adopts the popular Lora SX1280 radio frequency chip with excellent performance. The Express LRS firmware allows for low latency and high refresh rates, suitable for long range flights and FPV racing. The entire transmitter module is built within a JR-style module. Equipped with customized heat sinks and fans, excellent heat dissipation performance ensures the stability of the transmitter module during flight.
FLASH_RX is based on the open-sourced EXPRESS LRS project. The hardware has been optimized and designed for real-world environments giving it a compact size and stable performance. Conveniently upgradable via WIFI.
The Express LRS firmware allows for low latency and high refresh rates. Built-in telemetry functionality sends aircraft parameters in real-time.
Matched with an optimized antenna and enjoy increased distance and telemetry.
2.4GHz Flash TX Module:
Model: FLASH_TX
Wireless frequency: 2400-2480MHz
Transmitting power: <27dBm
Remote control distance: >3000m
Remote control refresh rate: 25Hz-500Hz
RF interface: SMA-outer screw inner hole (adapted antenna inner screw inner pin)
Power supply: internal power supply: 6-13V, external power supply 6-16V
Size: 64*52*40mm
2.4GHz Flash Nano Receiver:
Model: FLASH_RX
Wireless frequency: 2400-2480MHz
Transmitting power: <12.5dBm
Remote control distance: >3000m
Remote control refresh rate: 25Hz-250Hz
RF interface: IPEX generation
Power supply: 4.5-10V
Size: 18.35*11.5*3.5mm

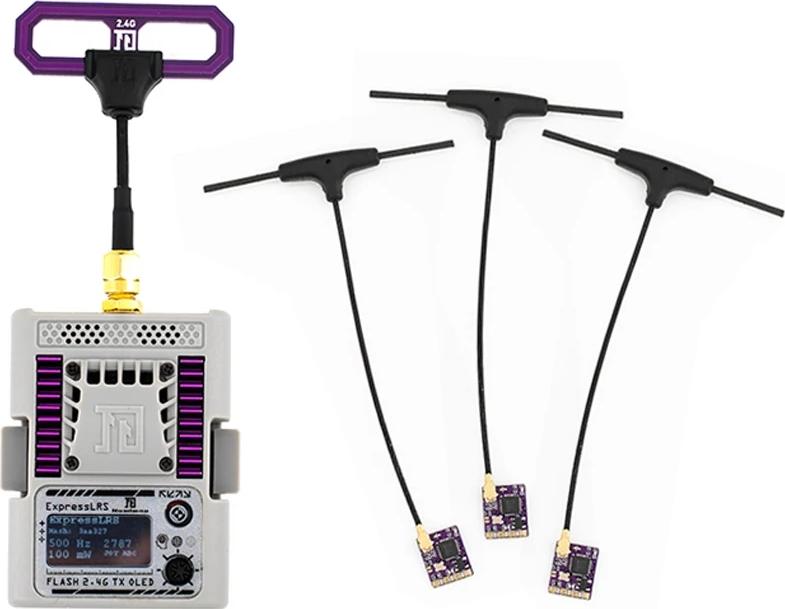

Package Included:
1 x Flash TX Module
3 x Nano Receiver (with T antenna)
