COBCP220723

Cobra Brushless MR Motor CP-2207 2300kV

Product Info
COBCP220723
Cobra Brushless MR Motor CP-2207 2300kV
By COBRA MOTORS
Discontinued
Click to Enlarge
click to enlarge

More like this... Electric Multirotor Motors
But only from... COBRA MOTORS


 Inventory Status Legend
Stock availability for on-line ordering
0
$27.19
Warehouse ?
Stock availability for pick up
0
$27.19
Warehouse ?
0
$27.19
Store - Charlottetown ?
1
$27.19
Store - Edmonton ?
1
$27.19
Store - Mississauga ?
4
$27.19
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

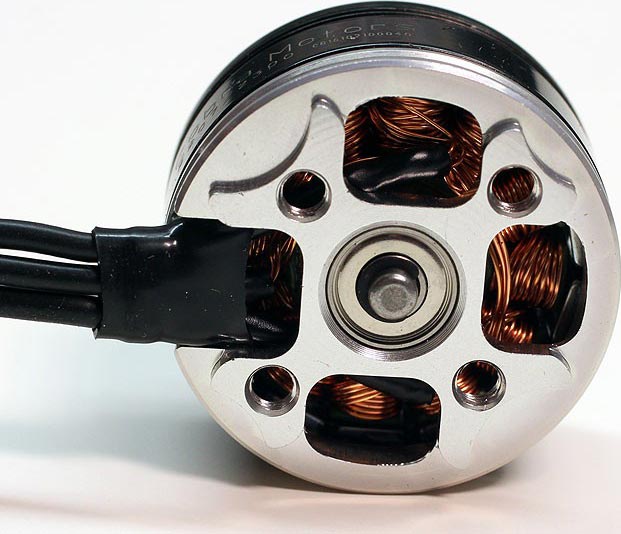

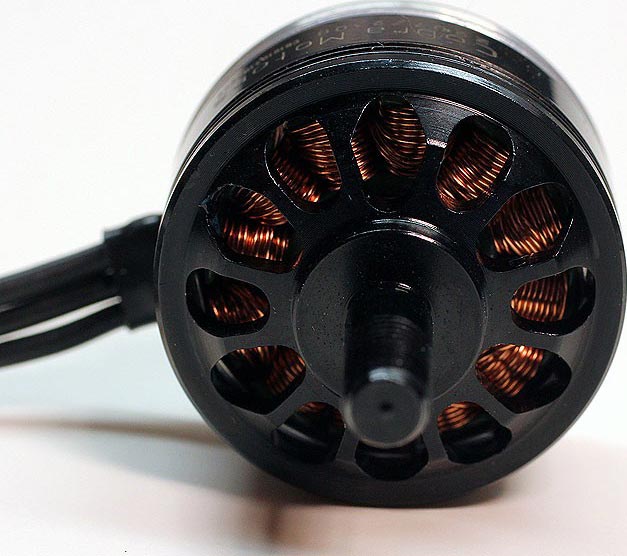

The Cobra Champion series motors are the most powerful versions ever made for FPV Racing! A completely new design that increases cooling and efficiency, these motors provide the ultimate power for your FPV Racing Quads. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the CP-2207 motor comes without bullet connectors, and feature extended pre-tinned motor leads that are 2-1/4 inches (55mm) long. These motors also have 3mm threaded holes in a 16x19mm pattern on the back plate for easy installation on your model.

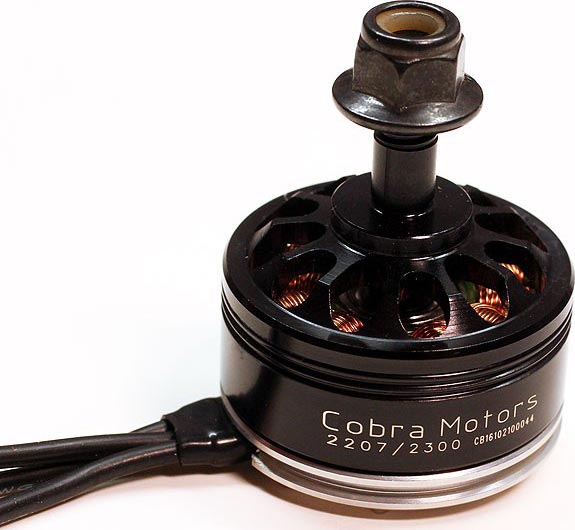

The CP-2207 series motor features an integrated 5mm threaded motor shaft which eliminates the chance of having a prop adapter spin off in flight. The included nylon insert prop nut, which has an integrated prop washer, provides a solid attachment for your propellers that will not loosen up and slip during use.

Also included with every Cobra CP-2207 Series Motor is a complete accessory pack, which includes everything you need to securely mount the motor to your quad frame, and to mount the prop to the motor.

The hardware kit contains the following items:

● Four M3x6mm Socket Head Motor Mount Screws
● Four M3 Flat Washers
● One Locking Prop Nut with Nylon Insert

click image to enlarge
ADDITIONAL PHOTOS
