Theory Type W Wing FPV Ready BNF Basic


Theory Type W Wing FPV Ready BNF Basic
Click to Enlarge
click to enlarge

More like this... FPV Electric Aircraft ARF
But only from... BLADE
All items from... BLADE

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Elec Flyer Hinge Tape 1" x 15'
AR636 6-Channel AS3X Sport Receiver
Theory Type W Replacement Airframe
Replacement Canopy Set Theory Type W
Thrust 2205-2350kV FPV Racing Motor
A3055 Sub-Micro Digital Airplane MG Servo
Replacement Wing Set Theory Type W
FPV Racing Motor 2205-2650Kv
760 mm
360 mm
480 g
Spektrum DSM2/DSMX 6 or more Channels
Radio Requirements:
3S or 4s 1300mAh LiPo
Electric Flight Battery Requirement:
AR636 6-Channel AS3X Sport Receiver
Receiver Included:
Spektrum Mini Metal-Gear Servos
Servo(s) Included:
2205-2350Kv FPV Racing Motor
Brushless Motor Included:
ESC Included:

  • SAFE Technology with Optional Flight Envelope Protection
  • Advanced AS3X Technology Delivers Rock-Solid Flight handling
  • Brushless Power System Capable of Producing 90+ MPH Flight Speeds
  • Removable Wings for Easy Transportation
  • Tool-less Motor Mount
  • Durable Z-Foam Material with Carbon-Fiber Reinforcement
  • Digital High-Speed Spektrum Mini Metal-Gear Servos

The FPV Race Wing phenomenon is catching on like wildfire across the globe. Like FPV quad racing, it connects the immersive action of First-Person View with a high-performance aircraft that's easy to fly. The Blade Theory Type W race wing delivers outstanding performance that's user friendly out of the box. The result is an FPV-ready airplane that flies incredible whether soaring with the birds for sport or scorching through race gates from 60-90 MPH. The wings come off in a snap with a modular clip in connection, making transport a breeze and repairs even simpler. Fully integrated flight components such as digital metal gear servos, AS3X® stabilization technology and SAFE technology give pilots rock solid stabilization at blazing speeds. The 200mw 5.8ghz video transmitter with frequency control lets pilots fly further without having to worry about video issues. The high-output brushless motor accepts 4S Li-Po batteries to suit mild or wild flying styles. With all these features packed into such a compact airframe, there is still designated room for a Mobius or Legend style HD video camera, giving pilots the ability to record their high speed soaring. Overall, the Theory Type W was designed with performance and ease of use in mind. This product will absolutely make getting into FPV fixed wing racing or exploring an absolute breeze!

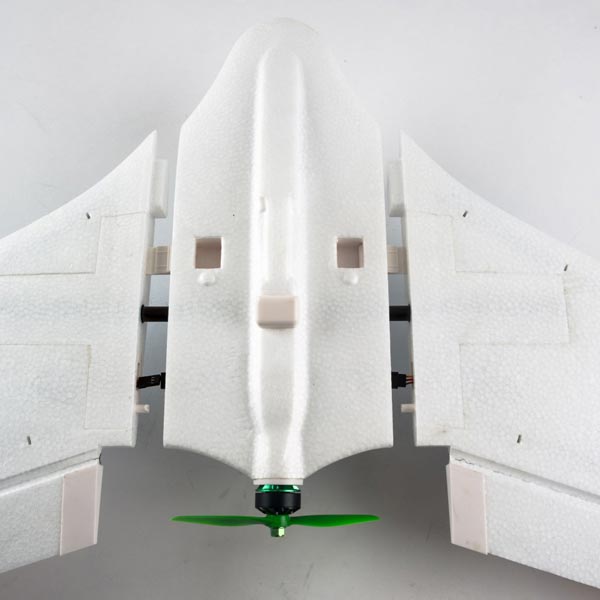

Modular Wings

Modular and easily removable wings make transport a breeze. Just plug in the integrated servo leads from the wings and merely snap them into the push-button locking system, and you’re ready to fly!


Precision engineered wing design, combined with SAFE and AS3X, makes this wing extremely stable at slower cruising speeds along with screaming race speeds upwards of 90 MPH. Dedicated flight modes allow smooth, hand launch take offs, 90 degree bank angle limits, and an agility mode that gives you full control with the stable precision of AS3X.

AR636 Receiver

This powerful receiver offers incredible flight characteristics for an unmatched flying experience.

4S Power

Capable of carrying a 4s, 1300mAh LiPo, this wing offers screaming speeds with respectable flight times to match. The Thrust 2350Kv motor offers competitive power for a wing in this class, with the option to upgrade to a 2650Kv Thrust Series motor for those seeking that extra speed.

HD Ready

Dedicated mount is designed to host a Mobius or Legend style camera so pilots can play back their races and high flying expeditions in crystal clear HD video!

FPV Ready

The FPV ready version has dedicated spaces for a pilot to add his own video transmitter and camera.

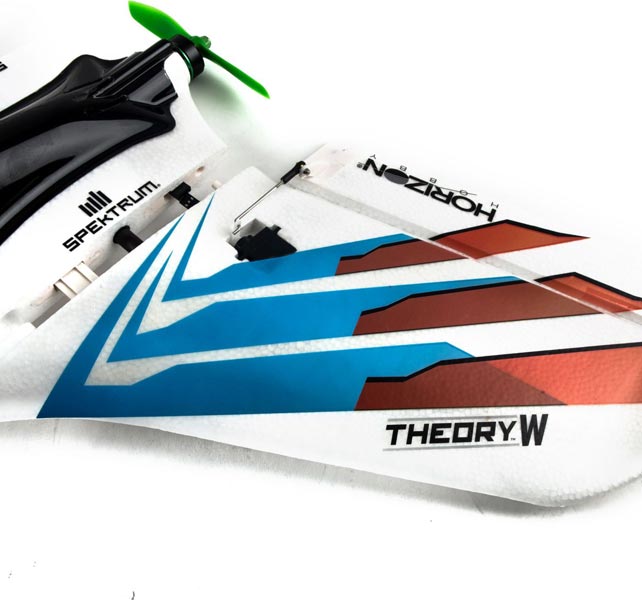

Personalize It

3 vivid decal sheets come in the box, so pilots can customize their trim scheme and make this wing stand out so everyone can see who's at the head of the pack!
