AXL90074T1

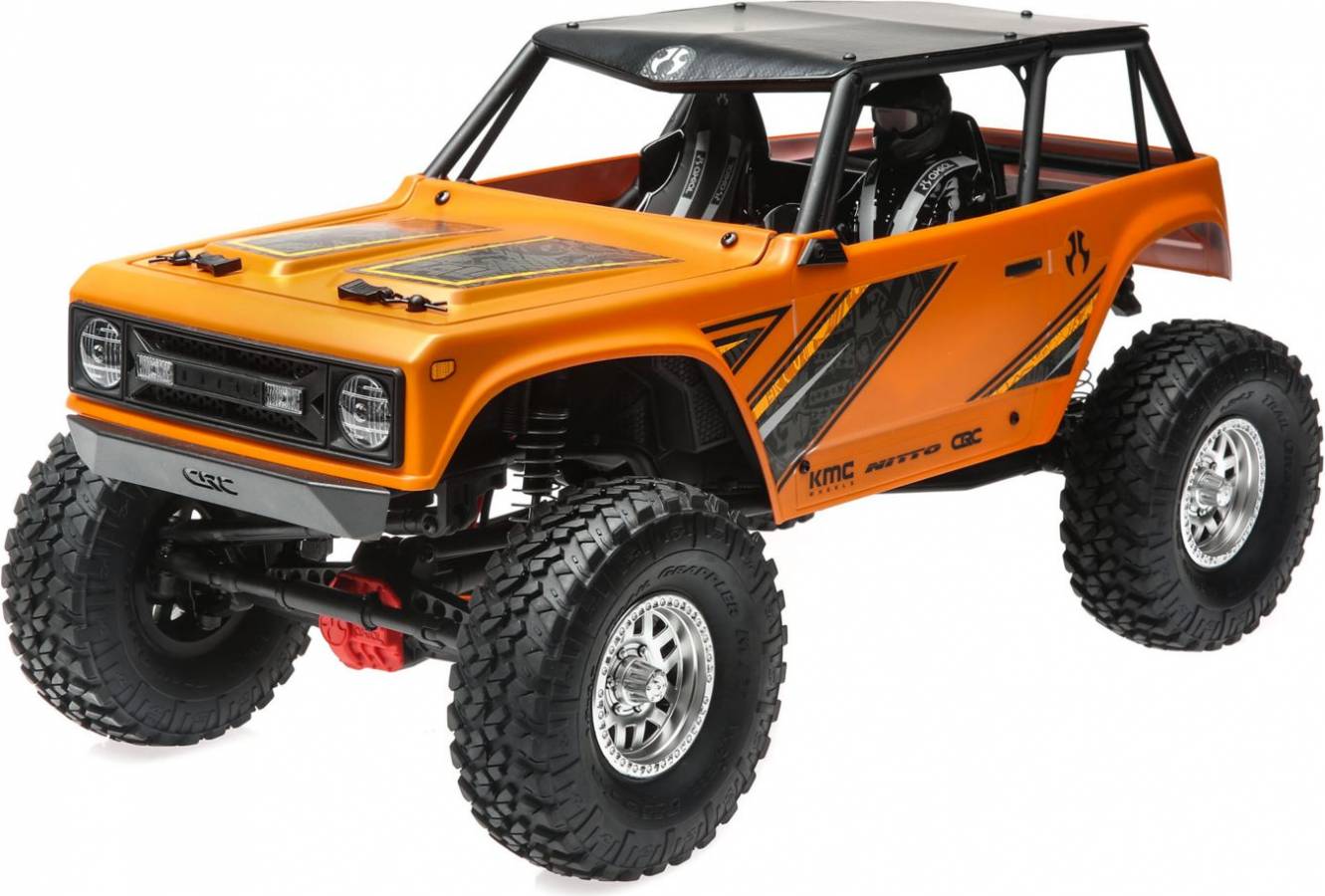

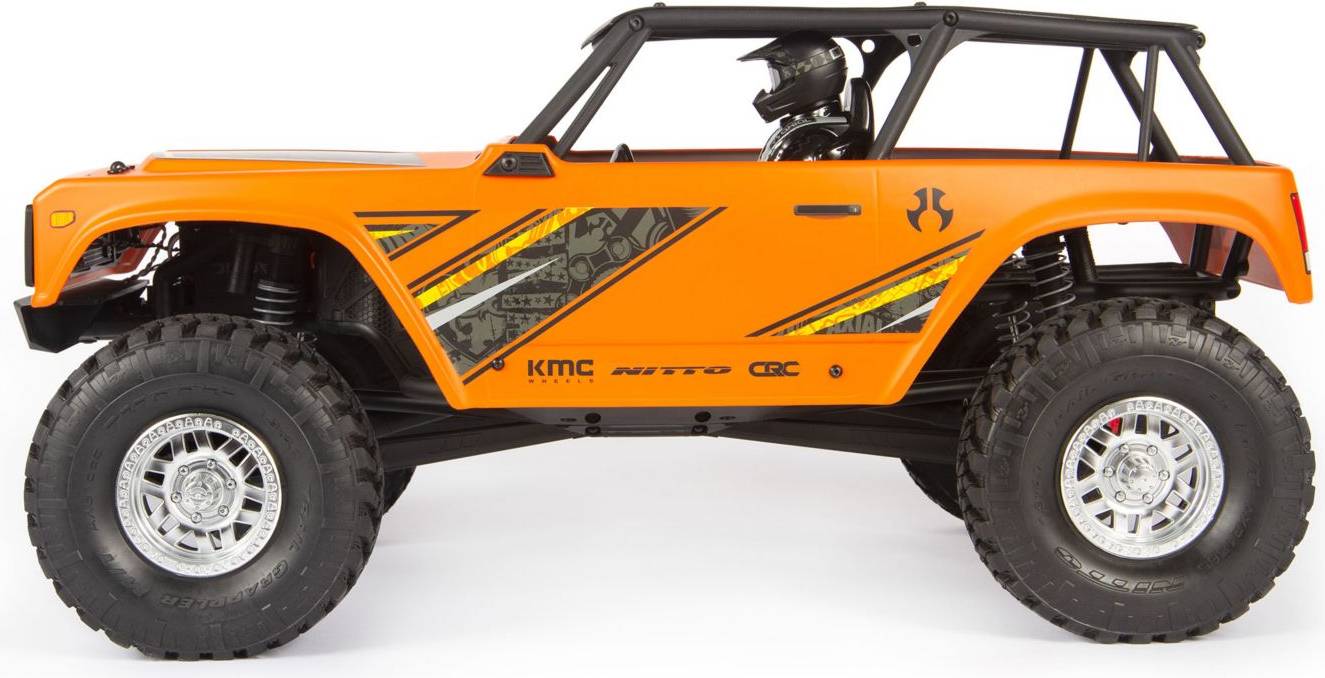

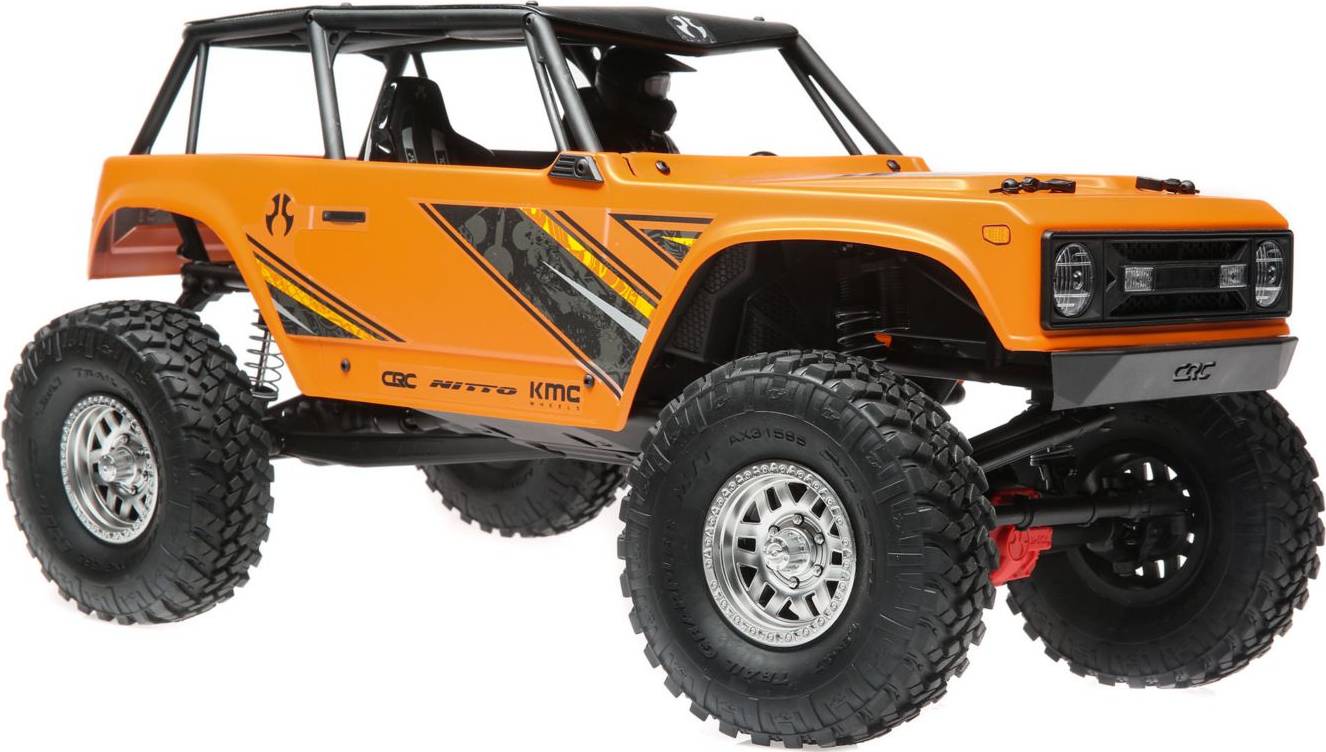

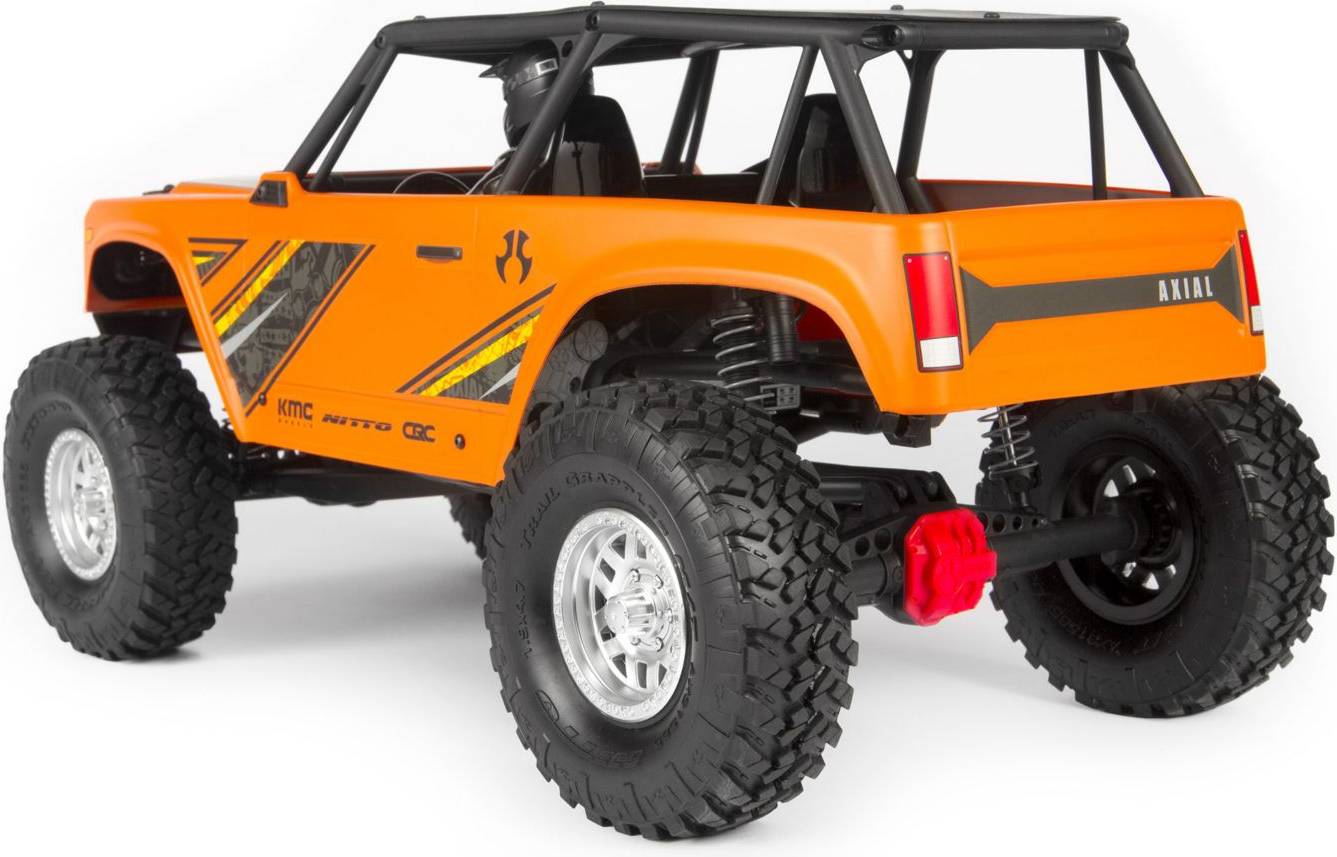

Wraith 1.9 1/10 Scale Electric 4WD RTR Orange

AXIAL

AXL90074T1
Wraith 1.9 1/10 Scale Electric 4WD RTR Orange
By AXIAL
$499.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Scale Trail Truck & Crawler
But only from... AXIAL
All items from... AXIAL


 Inventory Status Legend
StockStock availability for on-line ordering
2
$499.99
Warehouse ?
StockStock availability for pick up
2
$499.99
Warehouse ?
1
$499.99
Store - Charlottetown ?
3
$499.99
Store - Edmonton ?
2
$499.99
Store - Mississauga ?
2
$499.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Cap Head M2x6mm Black Oxide (10)
$4.49

Aluminum Hub Narrow 12mm Black (4)
$9.99

Radio Box Seal Yeti
$13.99

Spring 12.5x60mm 1.70lb/in Green (2)
$9.99
Bearing 5x14x5mm (2)
$9.99

LED Controller w/Lights
$39.99

SRX200 2Ch 2.4GHz FHSS Receiver
$19.99

Bearing 7x14x3.5mm (2)
$9.99
SPECIFICATIONS
17.8 in
Length:
8.8 in
Width:
8.8 in
Height:
4.65 lbs
Weight:
2.73 in
Ground Clearance:
12.13 in
Wheelbase:
4WD Shaft Driven
Drivetrain:
2-3 Cell LiPo or 5-9 Cell NiMH with IC3/EC3 connector
Battery Requirements:
To suit battery
Charger Requirements:
Spektrum™ SRX200
Receiver Included:
Tactic® TSX45 Metal Gear Servo
Servo Included:
Axial® 35T
Brushed Motor Included:
No
Battery Included:
No
Charger Included:

FEATURES

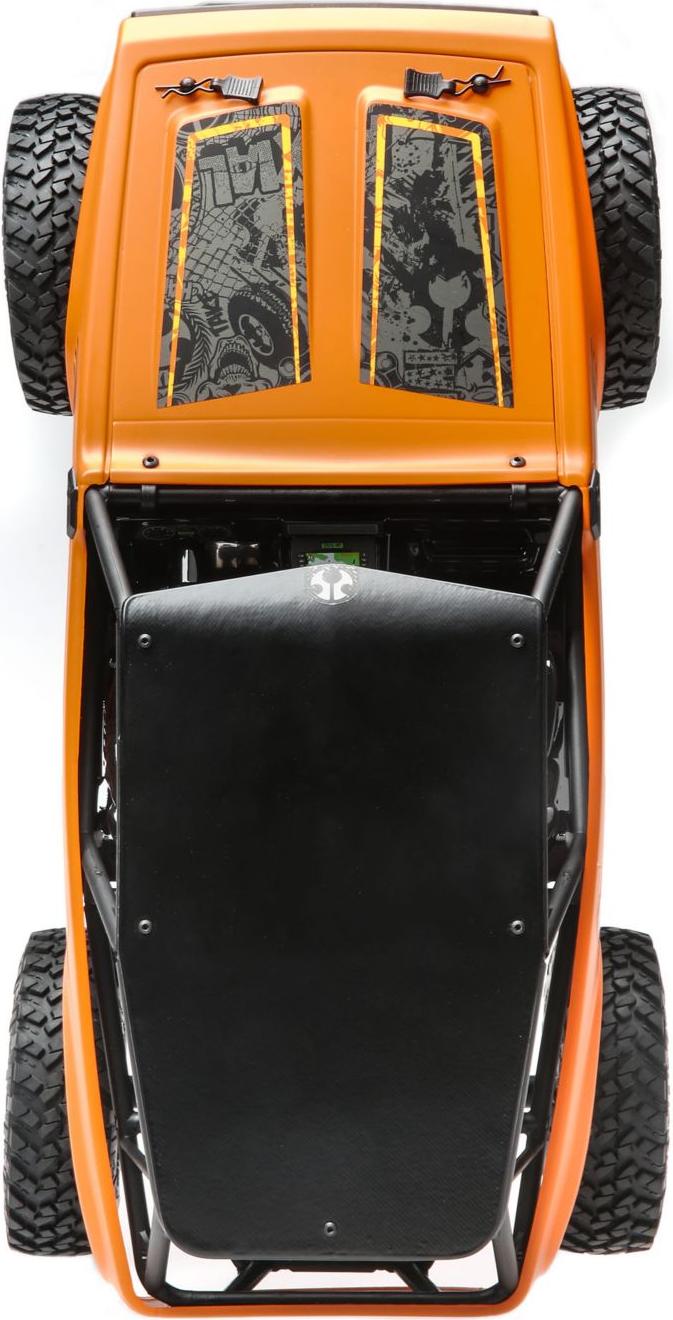

  • Strong tube chassis with forward-mounted battery position
  • Boatsides/skid plate for extra clearance
  • Chassis-mounted servo for a realistic look
  • Easy access to electronics, and adjustable battery tray
  • New body design with LED lights, and grille, radiator, fender, and V8 engine details
  • Spektrum Transmitter and Receiver
  • 1.9 Nitto Trail Grappler M/T tires on KMC XD229 Machete crawl wheels
  • Compact AX10 transmission
  • AR44 hi-pinion axles for added ground clearance

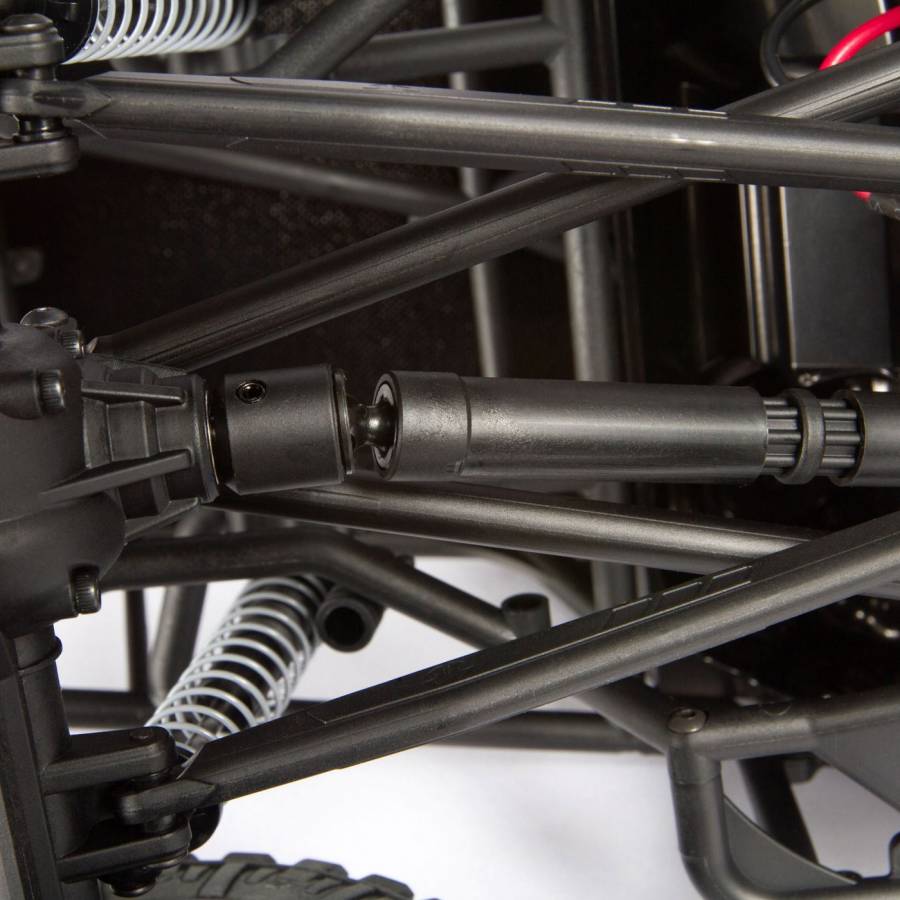

  • WB8 HD Wildboar driveshafts
  • Dual slipper clutch with 32-pitch gearing
  • 4-Link rear suspension

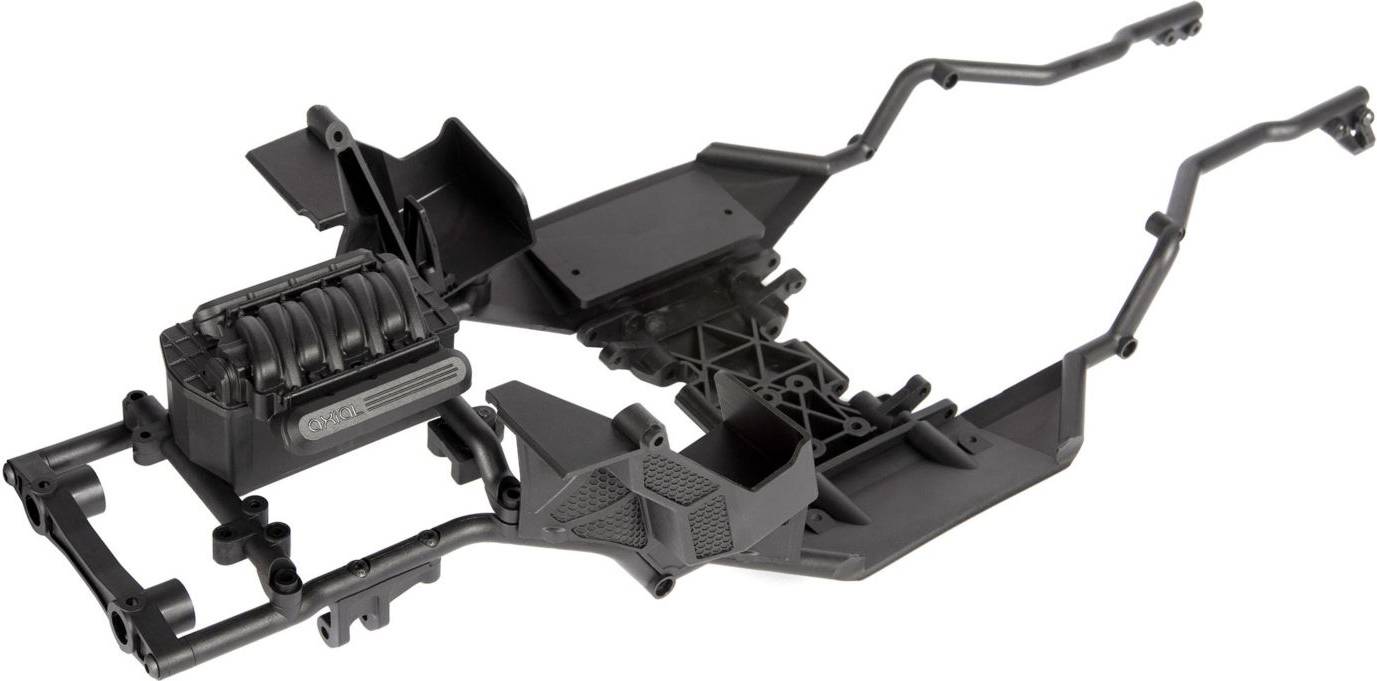

 At its foundation the Axial Wraith 1.9 4x4 is the first full tube frame chassis in RC, providing the durability you need for aggressive action on tough terrain. Refining the proven 2.2 Wraith chassis design, Axial improved the ground clearance for this version by reducing the size of its skid plate and lower rails. Boatsides on the skid plate improve handling by helping the vehicle slip through and past obstacles.

Your battery mounts at the front of the chassis, for easy access and to provide the best weight distribution for aggressive climbing. For scale looks, Axial moved the servo off the top of the axle and onto the chassis - just as a full-size truck has its steering box located on the frame.

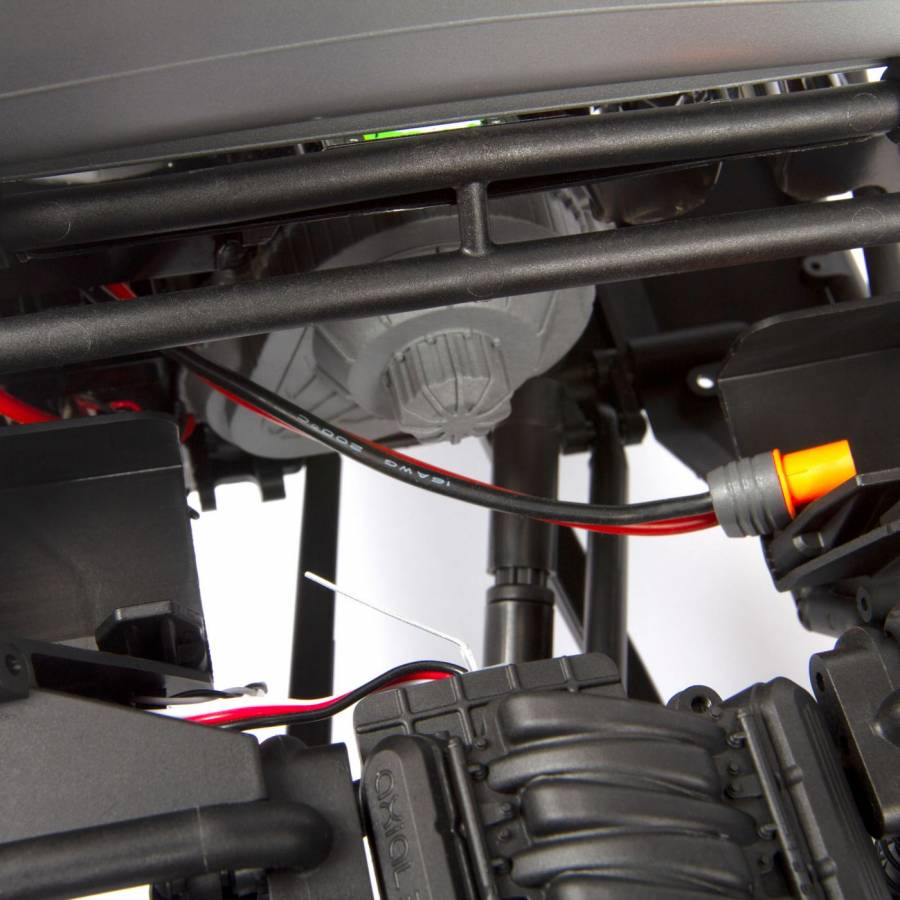

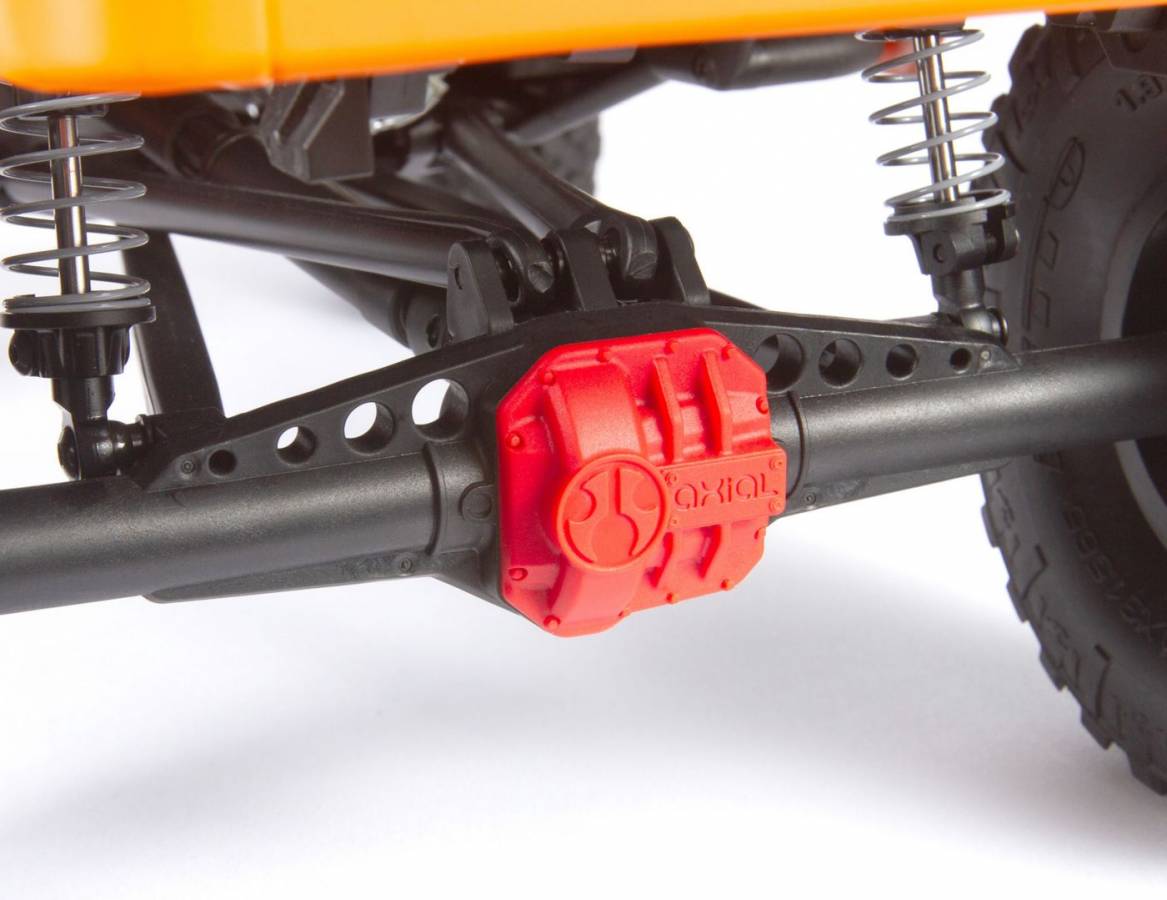

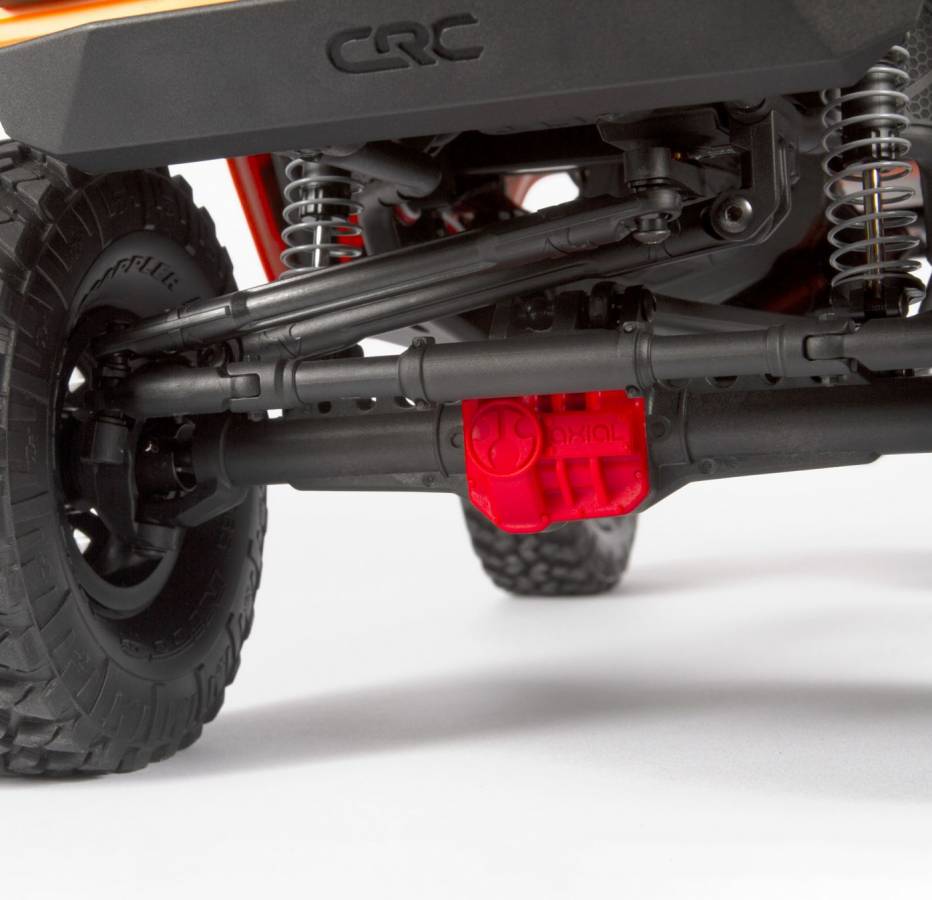

The Wraith 1.9 truck's drivetrain uses a powerful brushed 540 motor to turn its proven front and rear, single piece AR44 axles. The pinion gear is 6mm above center, raising the ground clearance and improving driveshaft angles. Axial boosts the overall strength with metal gear construction; large, flex-reducing load bearings; increased gear surface contact; and a gear ratio that's optimized to reduce torque twist.

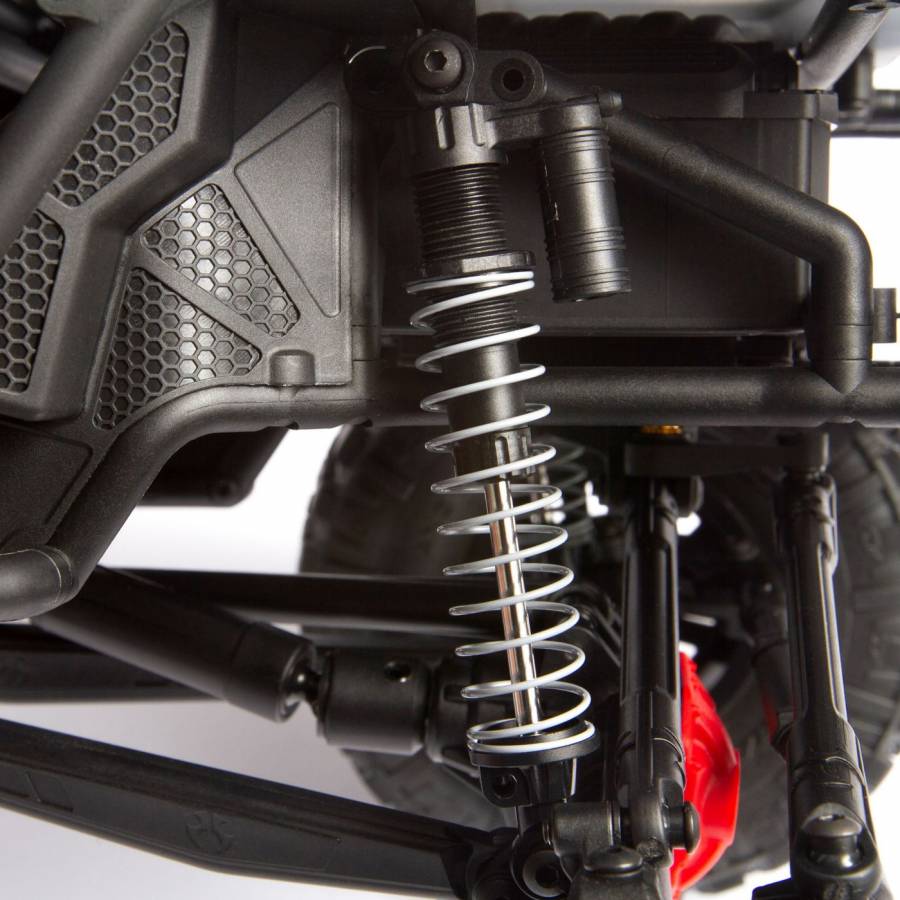

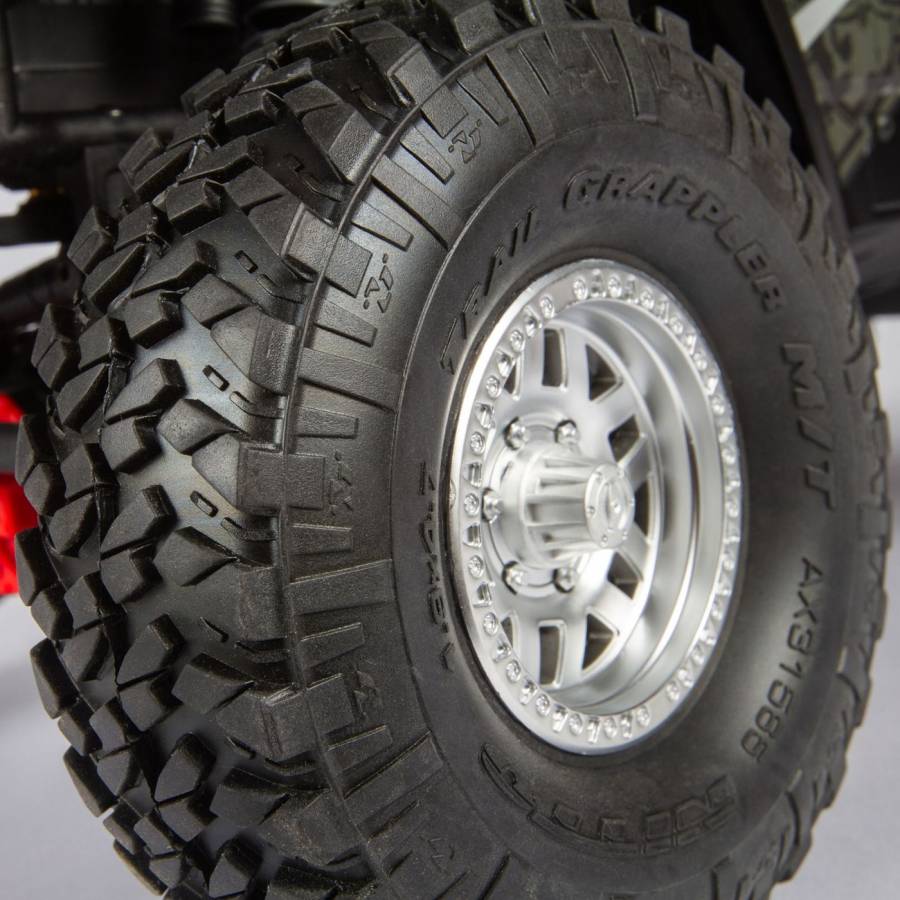

Adjustable oil-filled, coil over shocks allow you to tune dampening for the best handling on any track. Molded from durable S30 compound, the officially licensed Nitto Grappler tires have a large block tread that gets excellent bite on a wide range of surfaces.

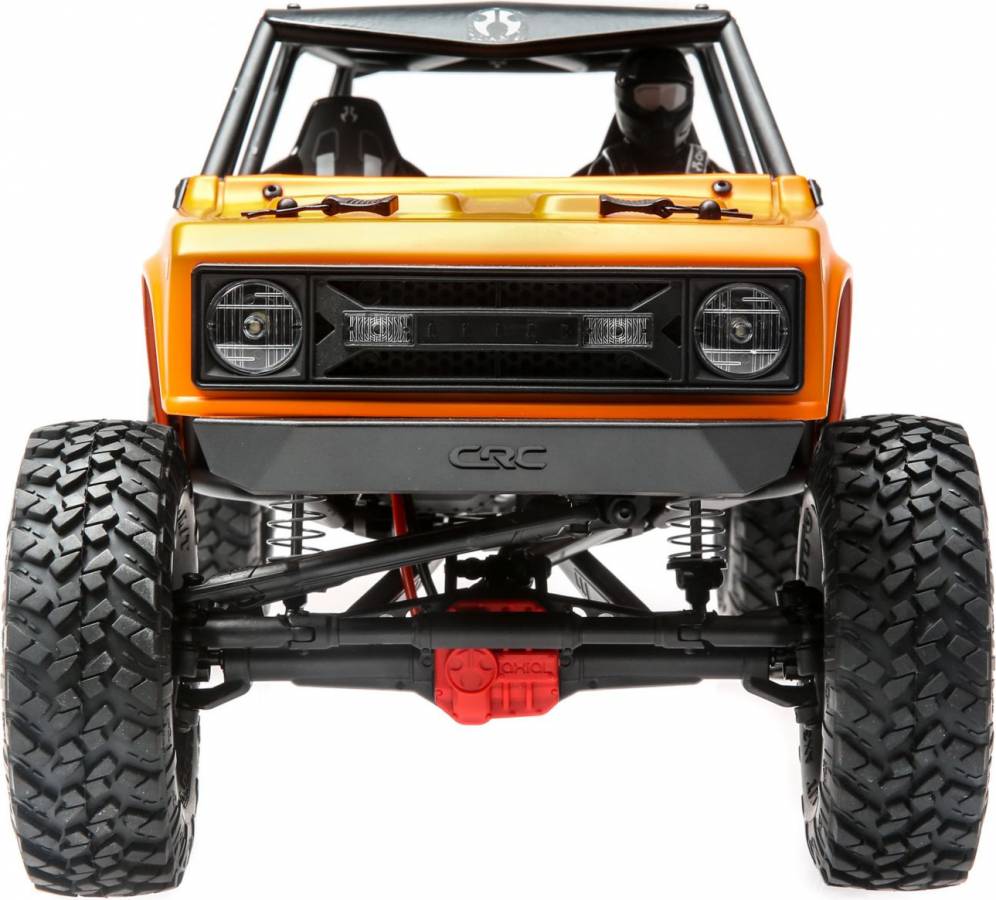

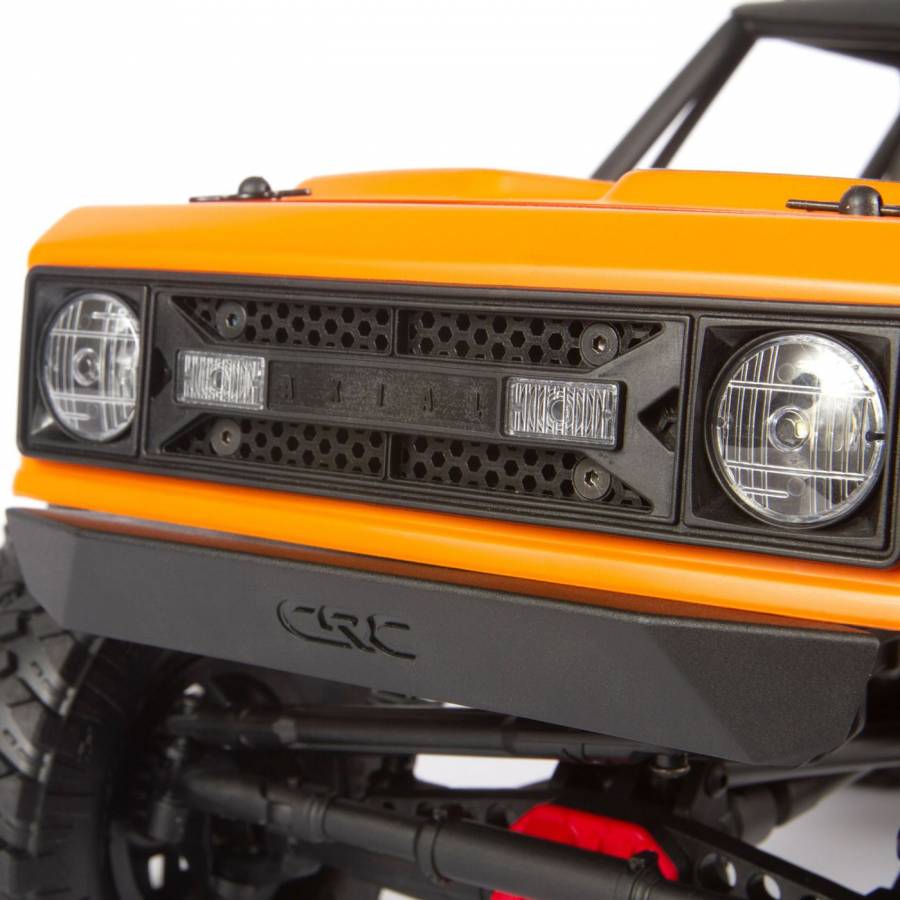

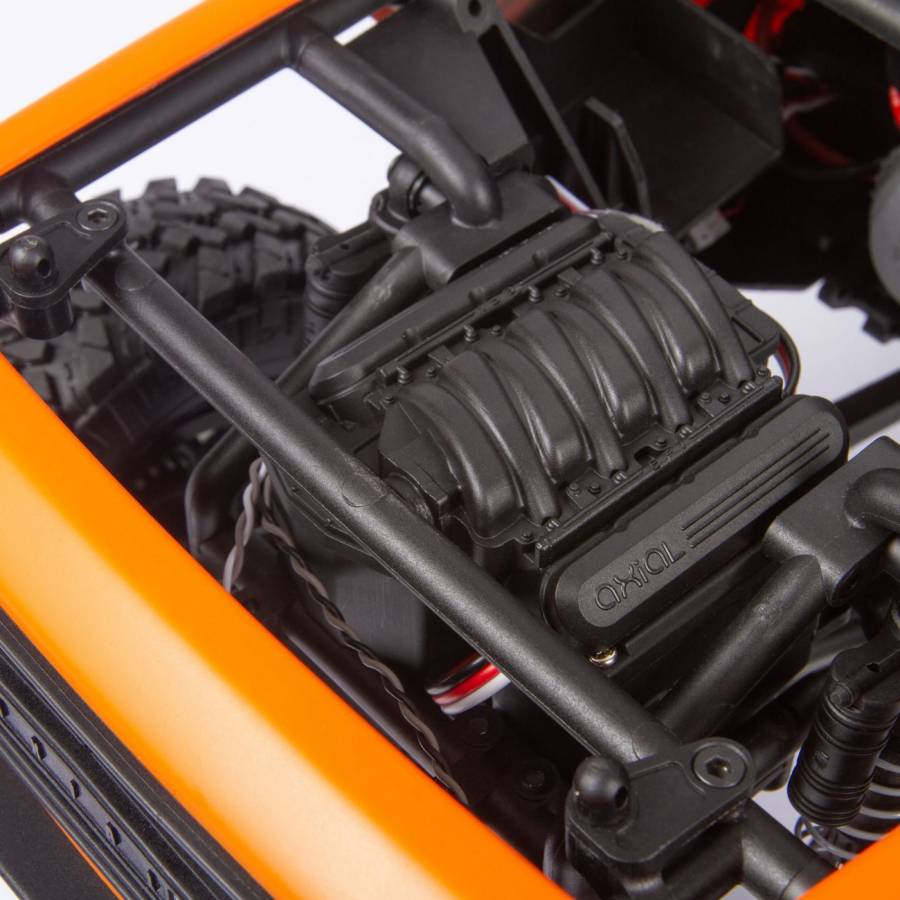

The Wraith 1.9 truck looks ready to climb mountains even when it's standing still. At the front end of its polycarbonate body you'll find a molded plastic grille, radiator detail, and two large, LED-equipped headlights. Raise the hood and you'll see a replica V8 engine tucked in front of the chassis battery mount. That V8 isn't just for show. It's also a rugged receiver box that guards the model's Spektrum SRX200 receiver from water, dust, and debris.

The Axial Wraith 1.9 RTR comes factory-assembled and requires only a battery pack with IC3 connector, compatible battery charger, and four AAs for the included Spektrum 2.4GHz transmitter. It's easy enough for new RC hobbyists, with the design sophistication to take experienced drivers on incredible adventures far beyond the end of the road.

 In the box

  • (1) Axial Wraith 1.9 1/10 4WD RTR with:
    • (1) Spektrum SRX200 Receiver (installed)
    • (1) Tactic TSX45 Metal Gear Servo (installed)
    • (1) Axial 35T Electric Motor (installed)
    • (1) Dynamite Electronic Speed Control with Drag Brake (installed)
    • (1) Spektrum STX2 Transmitter
  • (1) Product Manual

Required to complete:

  • 2-3 Cell LiPo or 5-9 Cell NiMH/NiCd battery with IC3/EC3 connector
  • Compatible battery charger
  • (4) AA Alkaline batteries
