AXL90066

1/10 SCX10 II 4WD RTR Deadbolt

AXIAL

AXL90066
1/10 SCX10 II 4WD RTR Deadbolt
By AXIAL
$399.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric Scale Trail Truck
But only from... AXIAL


 Inventory Status Legend
StockStock availability for on-line ordering
2
$399.99
Warehouse ?
StockStock availability for pick up
2
$399.99
Warehouse ?
0
$399.99
Store - Charlottetown ?
1
$399.99
Store - Edmonton ?
0
$399.99
Store - Mississauga ?
1
$399.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
1946 Dodge Power Wagon Clear Body 12.3" WB Crawler
$69.99

1.9" 8 Hole Beadlocks Black (2)
$26.99

1.9" 8 Hole Beadlocks Satin Chr (2)
$26.99

Axial 20T Electric Motor
$26.99

SPECIFICATIONS
18.1 in
Length:
8.8 in
Width:
9.0 in
Height:
2.65 lbs
Weight:
3.8 in
Ground Clearance:
12.0 in
Wheelbase:
4WD Shaft Driven
Drivetrain:
TTX200 2.4GHz transmitter is
Radio Included:
Tactic TR325 2.4GHz
Receiver Included:
Tactic TSX45 metal gear
Servo Included:
35T
Brushed Motor Included:
AE-5 Waterproof Forward/Reverse ESC w/Drag Brake
ESC Included:

FEATURES

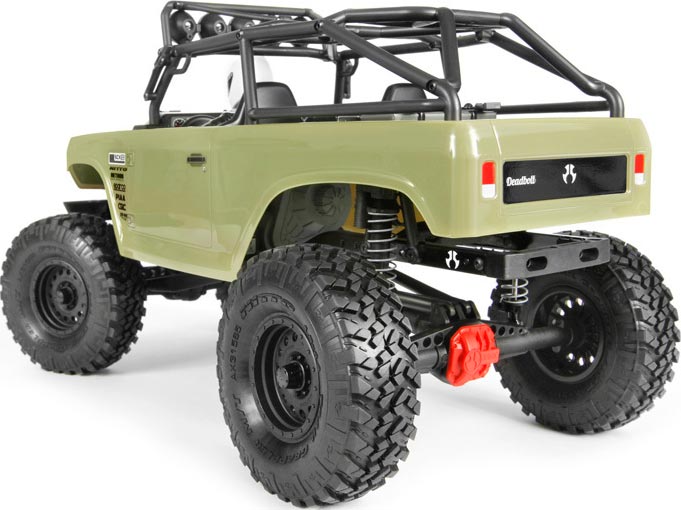

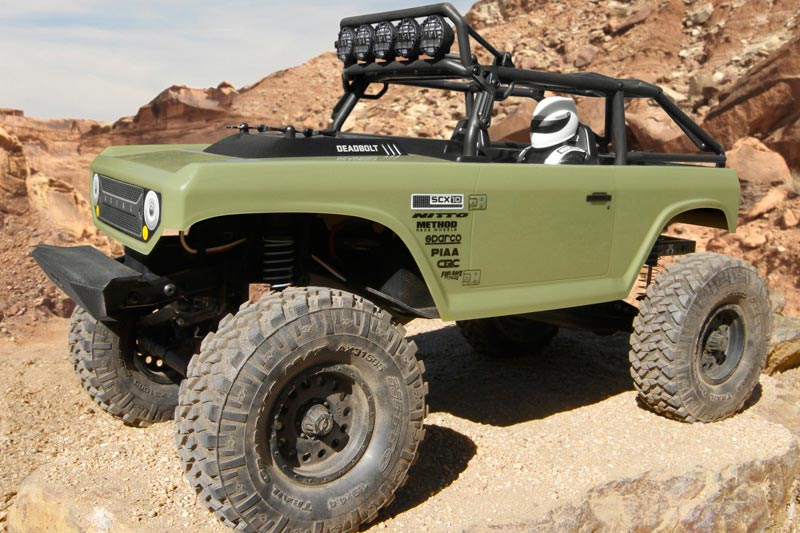

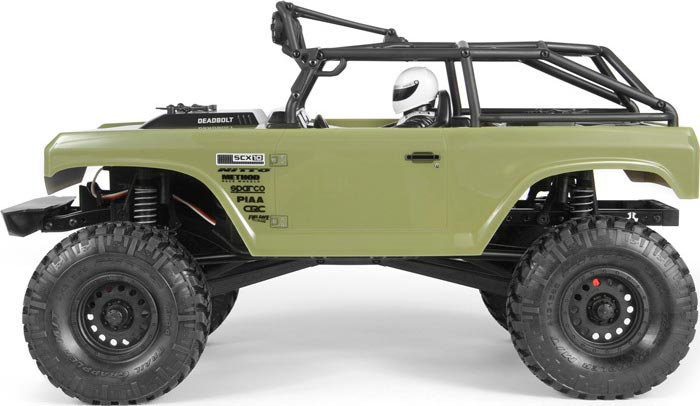

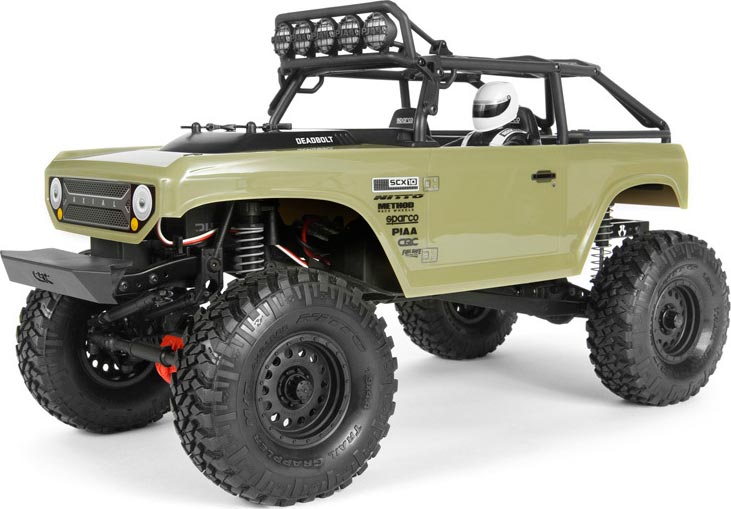

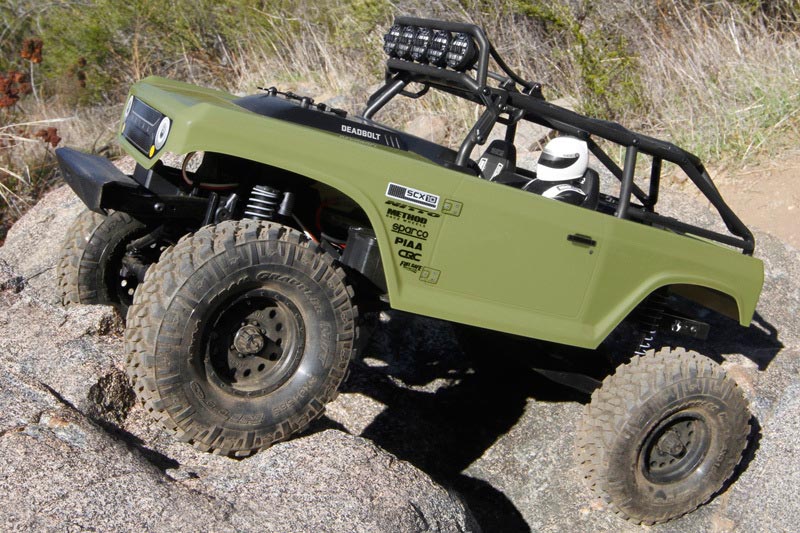

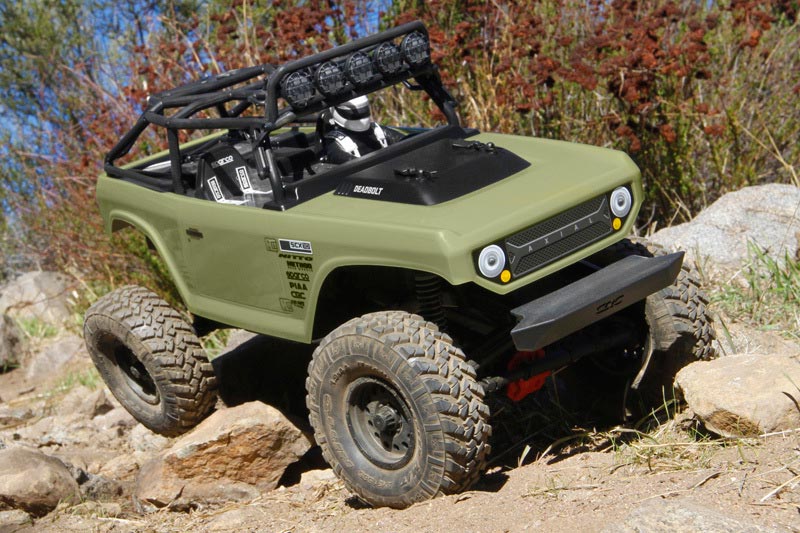

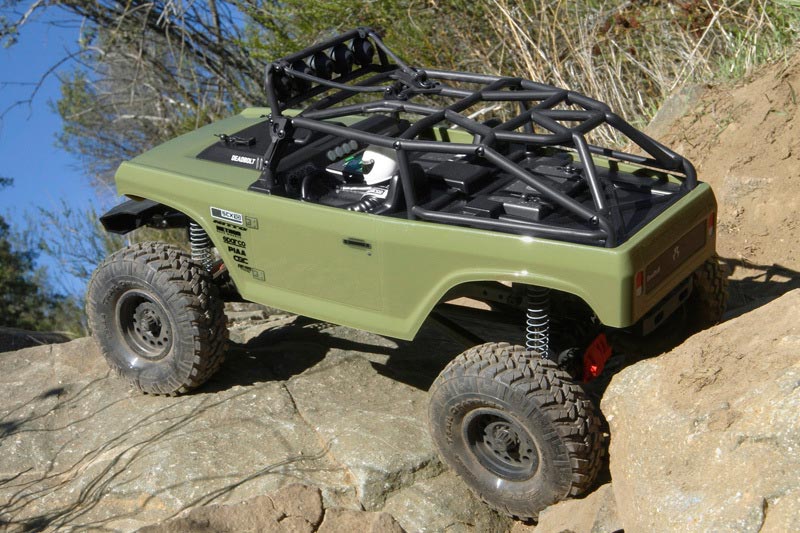

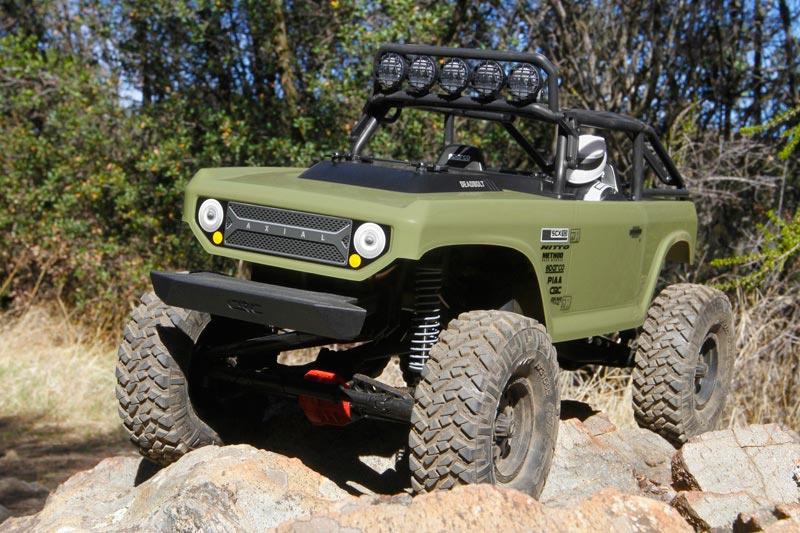

Time to rule the rocks with some attitude! Axail combined the rugged good looks of the Deadbolt™ with the exceptional handling of the trail-ready SCX10™ II chassis, giving you a rig that’s got both charisma and competence. The Deadbolt™ body is now coated with an olive drab paint scheme while keeping the original features you’ve come to love about it; narrow stance, bulging hood, realistic driver figure and exterior cage complete with light bar (LED lights sold separately). Finalizing the look is a licensed CRC front bumper and Method Hole wheels wrapped in Nitto Trail Grappler tires.

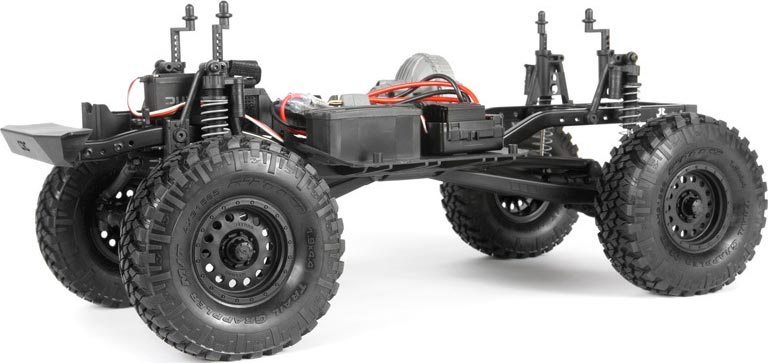

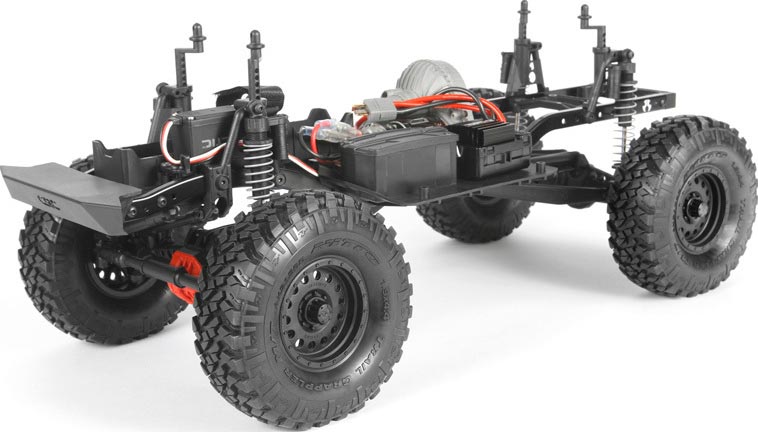

Underneath the muted-green shell sits the SCX10™ II, a reliable chassis that is equipped for extreme trailing - AX10™ transmission, single-piece AR44 axles and WB8 HD Wildboar™ driveshafts. This rig doesn’t just meet the standards for offroading, it defines them.

click image to enlarge
ADDITIONAL PHOTOS
PRODUCT RESOURCES
VENDOR TECHNOTES
FEATURES: Chassis: Scale steel C-channel side rails with adjustable body mount,
adjustable bumper mounts with swaybar mounting points, mounting
points for optional 2-speed and servo winch, adjustable chassis
mounted servo system
Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar
driveshafts with updated design with a larger diameter crosspin
(2x11mm) with an M4 screw shaft (2mm hex drive) for added strength
center splined slider floats between each end with added material
that reduces flex and fatigue

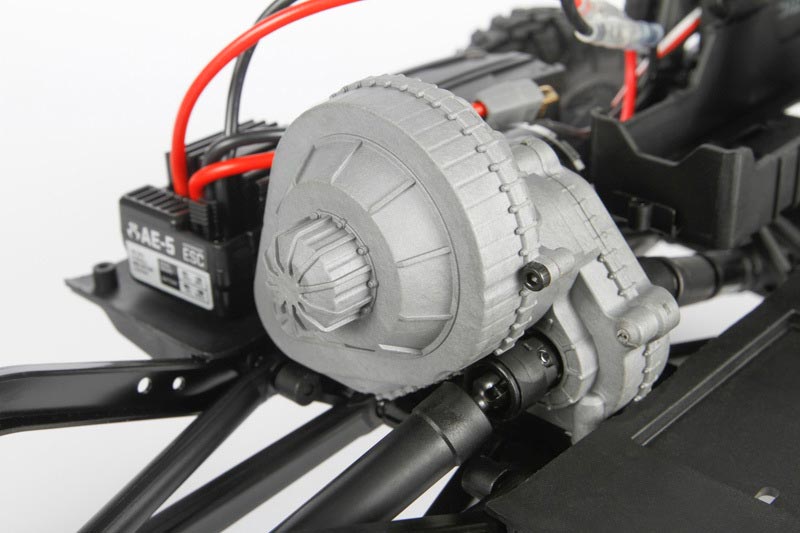

Transmission: AX10 three gear layout, metal motor plate, adjustable
ratio for high speed or competition level crawling speed, 20T
metal drive gear, plastic idler and lower gear, optional all metal
gear set is available, AX31585, better mounting points at base of
transmission-no more stripped screws
Slipper Clutch: Dual pad design for added surface area, 32P gear
pitch for high-torque applications
Motor: 35 turn, brush equipped, water resistant, integrated cooling
fan
Radio: Tactic TTX200 2-channel transmitter with TR325 3-ch Receiver,
Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in
torque rating, dual ball bearings

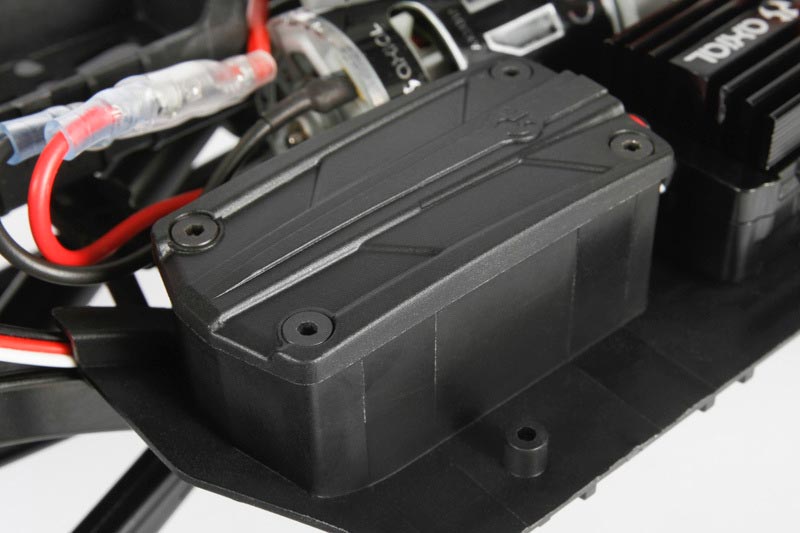

Receiver Box: Waterproof with separate silicone seals for antenna,
servo wires and gasket for receiver box cover, receiver box
located on side plates for easy access and low center of gravity

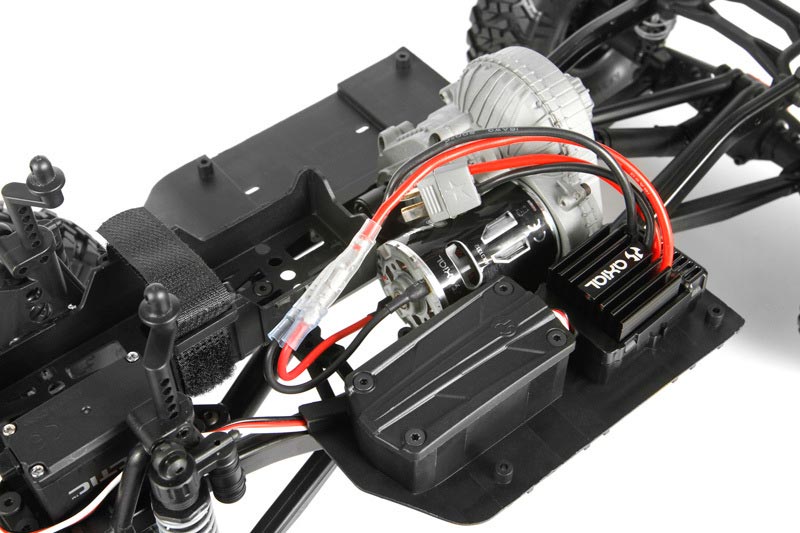

ESC: AE-5 waterproof, switchable between LiPo or NiMH
operation with a simple jumper-jumper 1 provides simple plug and
play choice between LiPo or NiMH, jumper 2 switches Drag Brake
settings, waterproof design with Star plug battery connector,
Spur Gear: 56T 32-pitch, plastic construction
Pinion Gear 15T 32-pitch, steel construction

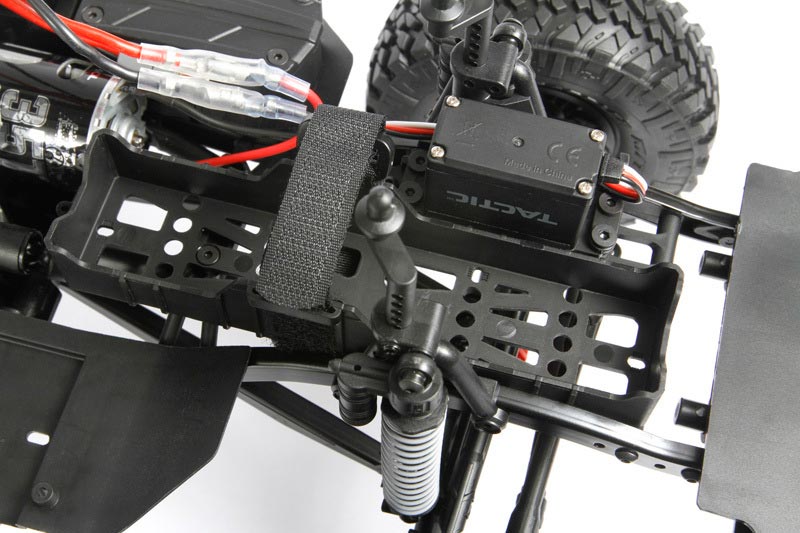

Battery Tray: Easy access front mount, adjustable, accomodates
batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
Front and Rear Axles: Hardened steel

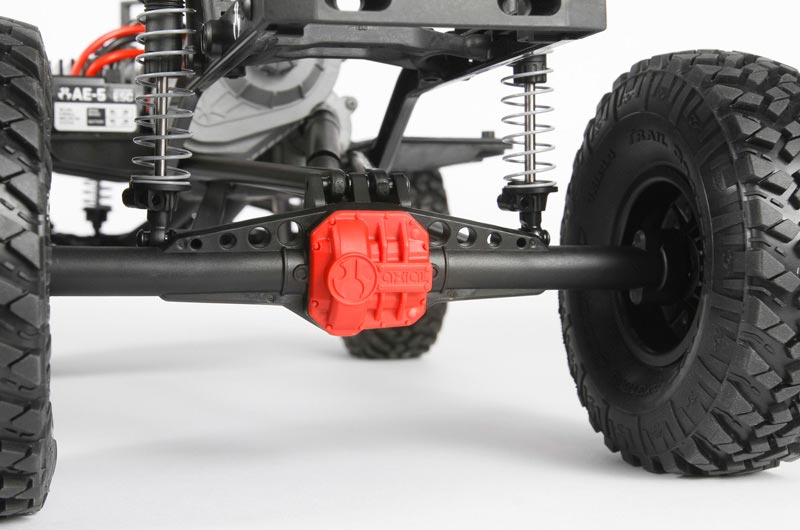

AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear
ratio for reduced torque twist, optional gearing choices, one-
piece axle housing, increased clearance, larger load rated
bearings for durability, 8 kingpin axle eliminates tire scrub,
single piece axle housing, one-piece all metal locker, 10
increment adjustments for knuckle carriers and straight axle
adapters, optimized gear ratio; 3.75 compared to 2.92 previously,
for less torque twist
Body: Trimmed and painted olive in color, dashboard, driver figure
plastic rollbar cage with light bar (lights not included)

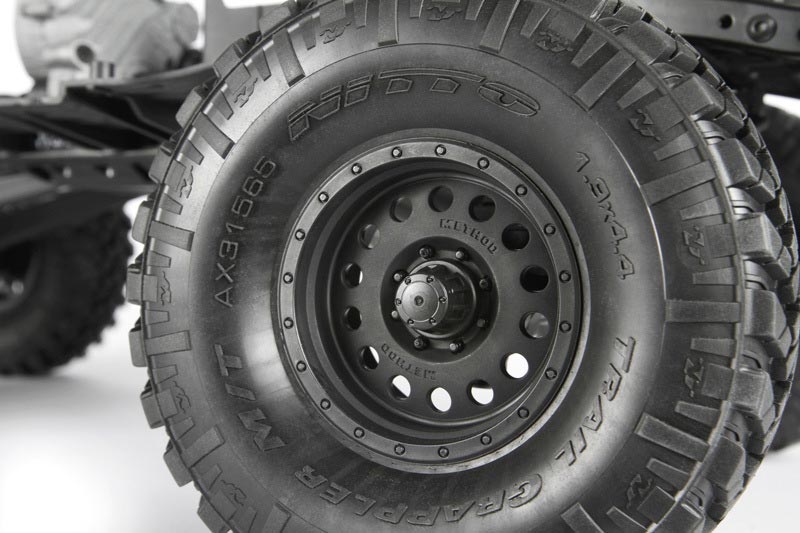

Wheels: Method Hole wheels, molded composite 1.02" (26mm) wide,
2.12" (53.9mm) construction, black in color, 12mm hex

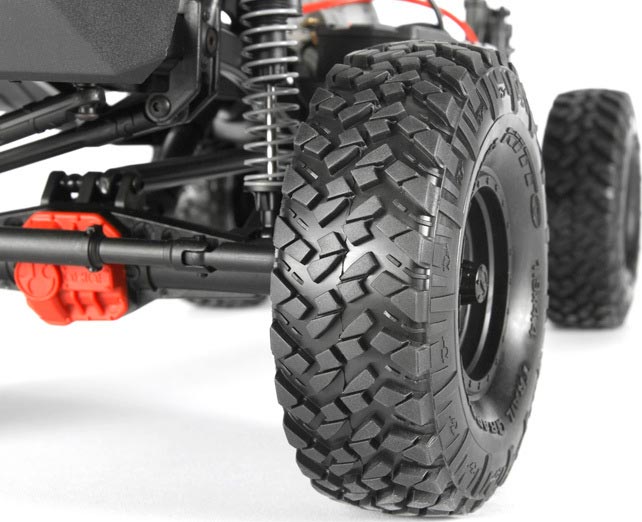

Tires: 1.9" Nitto Trail Grappler M/T, S30 compound with large blocks
for excellent bite in all terrain 4.7" (119.4mm) 1.9" (48.2mm)
wide

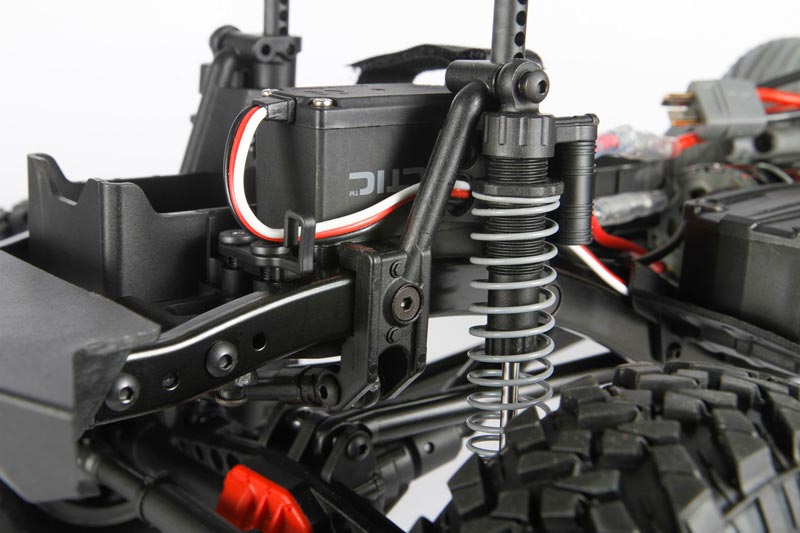

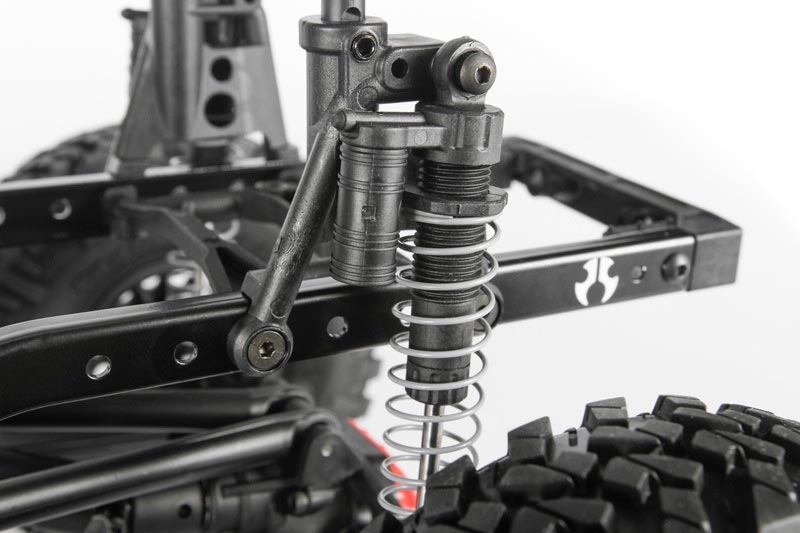

Shocks: Coil over, oil filled, steel springs, white in color,
multiple mounting positions

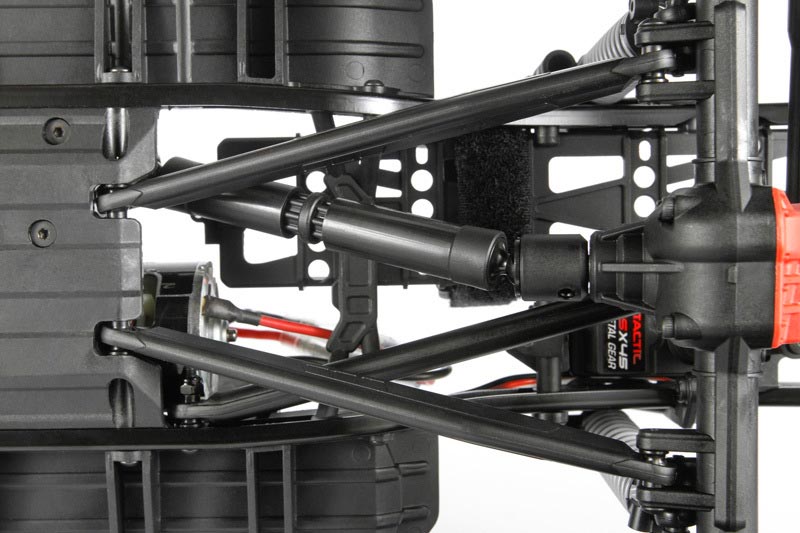

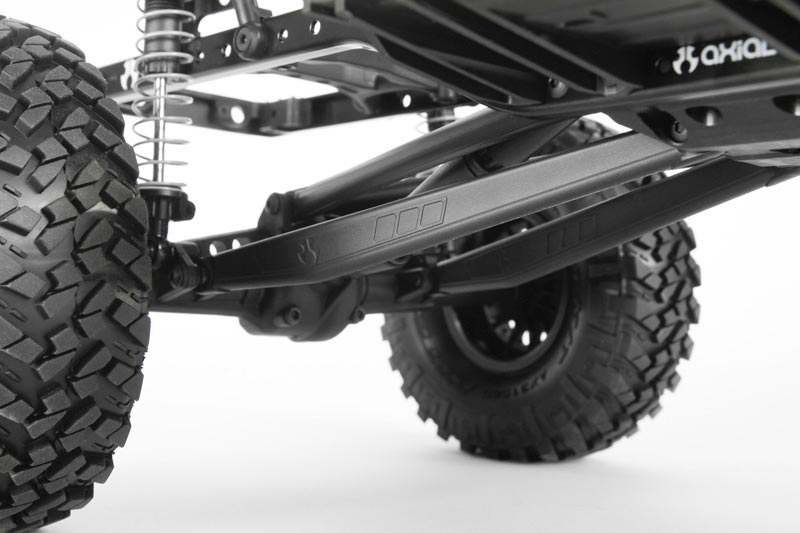

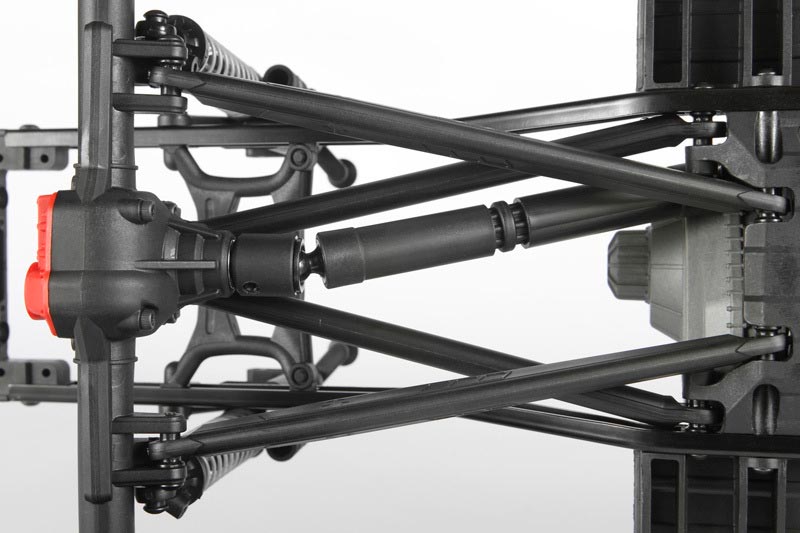

Suspension: Optimized suspension geometry with integrated mounts
upper and lower aluminum links, 4-link design reduces axle steer
and torque twist, and guards against suspension wrap-up in high-
power applications, all steel links

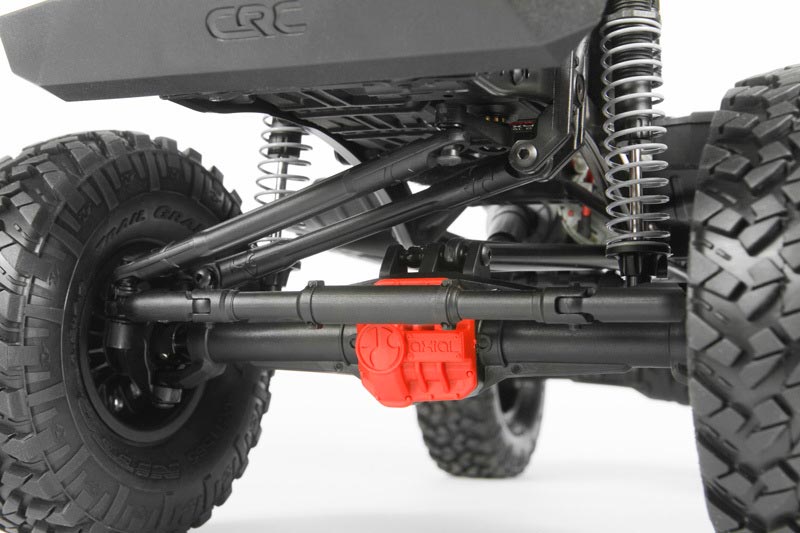

Steering: Proper CMS geometry using 3-link setup with panhard bar,
45 steering angle

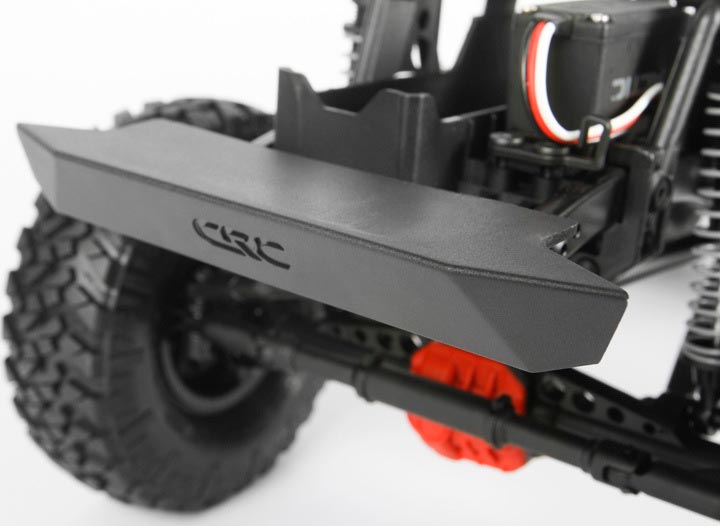

Front Bumper: Rigid plastic
Warranty: One year bumper to bumper limited. Axial's warranty center
Hobby Services will repair or replace any incorrectly made part.
Proof of purchase is required for Axial to honor any warranty
claim. Axial reserves the right to change or modify this warranty
without notice. This warranty does not cover damages due to normal
wear and tear, users' failure to perform routine maintenance, user
error of assembly or installation, modifications, misuse, crash
damage, or the addition of aftermarket parts or optional parts.
Note: Purchasing products from unauthorized retailers may void the
warranty and prevent support and service.
Repair or replacement of the product by Hobby Services is the sole
and exclusive remedy for any loss or damages.

INCLUDES: RTR SCX10 II Deadbolt 4WD with Oil-Filled Shocks, Wheels, Tires,
Painted Body, Radio, ESC, Motor, Decals, Waterproof Receiver Box,
Light Bar (lights not included) and Instruction Manual

REQUIRES: Battery: 6-cell NiMH or 2-3S LiPo
Battery Charger: Compatible with selected battery
Building and track equipment

SPECS: Vehicle-
Length: 18.1" (460mm)
Width: 8.8" (225mm)
Height: 9.0" (229mm)
Wheelbase: 12.0" (305mm), optional link kit allows wheelbase
adjustment to either a 11.4" 12.0" or 12.3" wheelbase
Ground Clearance: 2.7" (68mm)
Weight: 4.65lbs (2.1kg) approximately, with electronics
Optimized Gear Ratio: 3.75:1
Final Drive Ratio (FDR): 42.00, stock
(33.69-54.15 with different spur/pinion gear combinations, extra
spur and pinion gears must be purchased separately)
Adjustable Battery Tray Dimensions: 5.75 x 1.2" (147 x 32mm)
Body-
Length: 17.5" (444mm)
Width: 6.25" (159mm)
Height: 6.4" (162mm) bottom of body to top of roll cage
3.3" (84mm) bottom of body to top of driver's door

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Qty. Stock Number
2 7x14mm Ring Gear 1 AXIC4406
2 5x14mm Pinion gear 1 AXIC4407
2 5x11mm Pinion Gear 1 DTXC1547
1 5x11x4mm Spur Gear 1 DTXC1547
2 10x15mm Front Uprights 1 DTXC1595
2 5x11mm Front Uprights 1 DTXC1547
2 5x11mm Rear Axles 1 DTXC1547
2 5x11mm 2-sp Top Shaft 1 DTXC1547
2 5x11mm 2-sp Bottom Shaft 1 DTXC1547
4 5x10mm Transfer Case 1 DTXC1535
