ATDTVTXN5825

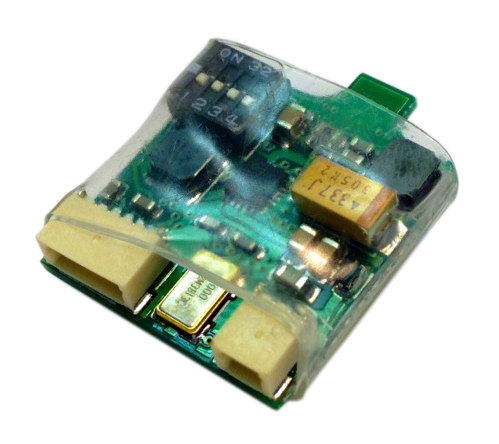

TinyVtx Nano 25mw 5.8Ghz A/V Transmitter

Product Info | Optional Items
RESOURCES

Optional Items (3)
ATDTVTXN5825
TinyVtx Nano 25mw 5.8Ghz A/V Transmitter
By ALTITUDE RC
$46.74 CAD    54.99
Save $8.25 (15%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... Video Equipment Transmitters, 5.8GHz
But only from... ALTITUDE RC

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
Stock availability for on-line ordering
1
$46.74
Warehouse ?
Stock availability for pick up
1
$46.74
Warehouse ?
0
$46.74
Store - Charlottetown ?
0
$46.74
Store - Edmonton ?
1
$46.74
Store - Mississauga ?
1
$46.74
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
0.74 in
Width:
0.8 in
Length:
0.26 in
Height:
4 g
Weight:
3-12.6 V
Input voltage range:
3.7 V
Camera output voltage:
14dbm = 25mw
Output power:

FEATURES

The latest craze in FPV is going micro.  The Ultra light 25mW 5.8GHz micro video transmitter from the guys at AltitudeRC is compatible with Fatshark and Skyzone goggles (Band D) .  The transmitter antenna is the same as many 2.4GHz receiver antennas and requires snipping the end to the appropriate length, don't worry a template is provided and it's very easy.  The advantage is a super light weight set up.

Power connector : JST RCY (standard battery) female
Camera connector : JST SH on the transmitter, loose end wire to camera.

Frequencies :
Switch #
1 2 3
Position (1=on, 0=off)
1 1 1 -> 5740MHz (CH1)
1 1 0 -> 5760MHz (CH2)
1 0 1 -> 5780MHz (CH3)
1 0 0 -> 5800MHz (CH4)
0 1 1 -> 5820MHz (CH5)
0 1 0 -> 5840MHz (CH6)
0 0 1 -> 5860MHz (CH7)
0 0 0 -> 5860MHz (CH7)
