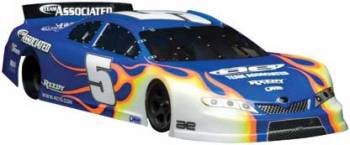

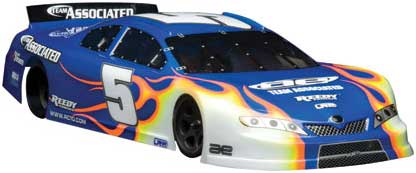

Factory Team RC10R5 1/10 Oval
 |
|
|
Discontinued
|
click to enlarge
|
More like this... R/C Electric On-Road Kits
But only from... ASSOCIATED
All items from... ASSOCIATED
But only from... ASSOCIATED
All items from... ASSOCIATED
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||
FEATURES
- Updated active strut front end features symmetrical components with independently adjustable caster and track width, as well as in-line front axles \.
- Woven carbon fiber front arm mounting plate makes for a stiffer front end assembly featuring Indexed wheelbase options and an automatic 0.5mm (0.020") trail in right front
- Newly designed rear pod features a 3-point upper pod plate with an aluminum stand-off that increases stiffness and dissipates heat by transferring the heat from the motor mount to the left rear bulkhead
- 3-point upper pod plate is more open, allowing easier access and installation of brushless motors
- Full ball-bearing drivetrain
- Ultra-rigid one-piece 2.5mm woven carbon fiber chassis allows for both LiPo and NiMH cells, featuring indexed battery adjustments for LiPo packs
- Factory Team side shocks feature a through-shaft design making for equal damping with no rebound in both directions
- VCS2 bladder style center shock provides consistent damping and easy maintenance
- Woven carbon fiber center shock tower allows for incremental adjustments of rear spring rate
- Ball differential and IRS graphite rear axle
- Foam front bumper helps protect body and chassis during impact
- Servo mounts flat for a lower CG and includes Ackermann adjustment spacers
- Updated T-plate sockets and hard-anodized aluminum pivot balls give the 10R5-Oval a lower rear roll center for better rear traction
click image to enlarge
ADDITIONAL PHOTOS|
|
PRODUCT RESOURCES
784695080218 0784695080218
ASC8021
