Home » Product Info »
ARA390211

BLX185 6S ESC

Product Info | Fits What?
ARRMA RC

ARA390211
BLX185 6S ESC
By ARRMA RC
$159.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Car Electronic Speed Controls (ESC)
But only from... ARRMA RC
All items from... ARRMA RC


 Inventory Status Legend
StockStock availability for on-line ordering
1
$159.99
Warehouse ?
StockStock availability for pick up
1
$159.99
Warehouse ?
0
$159.99
Store - Stratford ?
0
$159.99
Store - Edmonton ?
0
$159.99
Store - Mississauga ?
0
$159.99
Store - Ottawa ?
0
$159.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

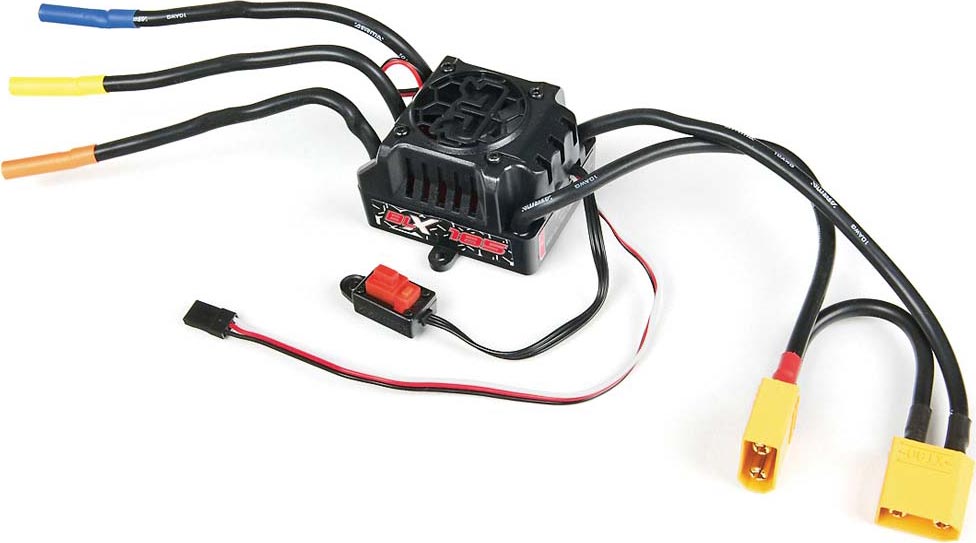

          This is the Arrma BLX185 6S 150A Electronic Speed Control.

FEATURES: Can be powered by 3S, 4S, OR 6S (11.1V, 14.8V, OR 22.2V) LiPo
with loop connector
35C 5000mAh minimum requirement
6.0V/3A continuous output, 12A max
Bridge connector for using single 4S OR 6S battery (5S is not
compatible)
Over voltage and overheat protection
Two stage LiPo cutoff, single stage NiMH cutoff
Temperature protection mode if ESC temperature exceeds 221F
(105C)
Integrated cooling fan to reduce heat during extreme running
Waterproof under normal usage
Integrated hold down tabs easily secure inside vehicle chassis
Set up from factory to default to a LiPo battery mode, settings can
changed, see COMMENTS below;

INCLUDES: BLX185 6S ESC with Cooling Fan, two Amass XT90 Battery Connectors
with 10AWG Wires, Receiver Plug, Power Switch and Set Button
10AWG Motor Wires with 4mm Diameter Gold Plated Female Connectors,
Instructions and Bridge Connector

REQUIRES: Motor such as the Arrma BLX 2050Kv 6S Brushless Motor, ARAG2000

SPECS: Length: 2.26" (57.5mm)
Width: 2.34" (59.5mm) including hold down tabs
Height: 1.53" (38.9mm)
Weight: 6.9oz (196g)
Switch Length: 1.15" (29.3mm)
Switch Width: 0.5" (12.8mm)
Switch Height: 0.71" (18mm)
Receiver Wire Length: 7.87" (200mm)
Battery Wire Length: 6.5" (165mm)
Motor Wire Length: 5.12" (130mm) including connector
Motor Limit: 3000kV
Wire Size: 10AWG
Motor Connectors: Gold bullet
Battery Connectors: Two Amass XT90
BEC Voltage: 6.0V
BEC Current Minimum Continuous: 3A
BEC Current Max Burst: 12A
Low Voltage Cutoff: 3.2V
Over Voltage Protection: Over 6S LiPo (22.2V)
Continouous Amp Rating: 150A
Throttle Mode: FWD/BRAKE/REV
Throttle Setup: Manual via pushbutton
User Programmable: Yes, via button only
Battery Mode: LiPo/NiMH, default LiPo mode

COMMENTS: The BLX185 was set from factory to default to a LiPo battery mode.
If any adjustments such as recalibration were made, check to see
that the battery mode has not been inadvertently set to NiMH
mode.
Follow these steps to verify battery mode;
1. Raise the vehicle chassis so that the wheels are not touching
anything.
2. With the battery or batteries charged and connected to the
vehicle's ESC leads, switch on the transmitter and then switch
on the vehicle. If a green LED flashes once the ESC is in LiPo
mode. If there is no LED flash on the ESC, and a pulsing noise
is made by the motor, the ESC is in NiMH mode. If you intend to
use LiPo batteries DO NOT operate ESC in NiMH mode, the
batteries may be damaged.

To switch ESC from NiMH mode to LiPo mode perform the following
steps;
1. Connect battery, switch on transmitter, press and hold set
button and turn on ESC. The red LED will flash.
2. Keep holding set button until green LED flashes. The number of
flashes represents the variable number of attributes being
programmed.
3. To enter the battery mode programming function, release the set
button when one green LED flashes.
4. Press the set button to change battery mode between LiPo and
NiMH. One RED LED flash indicates ESC is set to LiPo mode.
5. To save setting, switch ESC off.

CRC 07/02/16
jxs 03/24/16
ir/jxs
updt jxs 04/03/17
