ARA102690

1/10 Kraton 4X4 4S BLX RTR Red w/STX2

Product Info | Replacement Parts | Optional Items
ARRMA RC

ARA102690

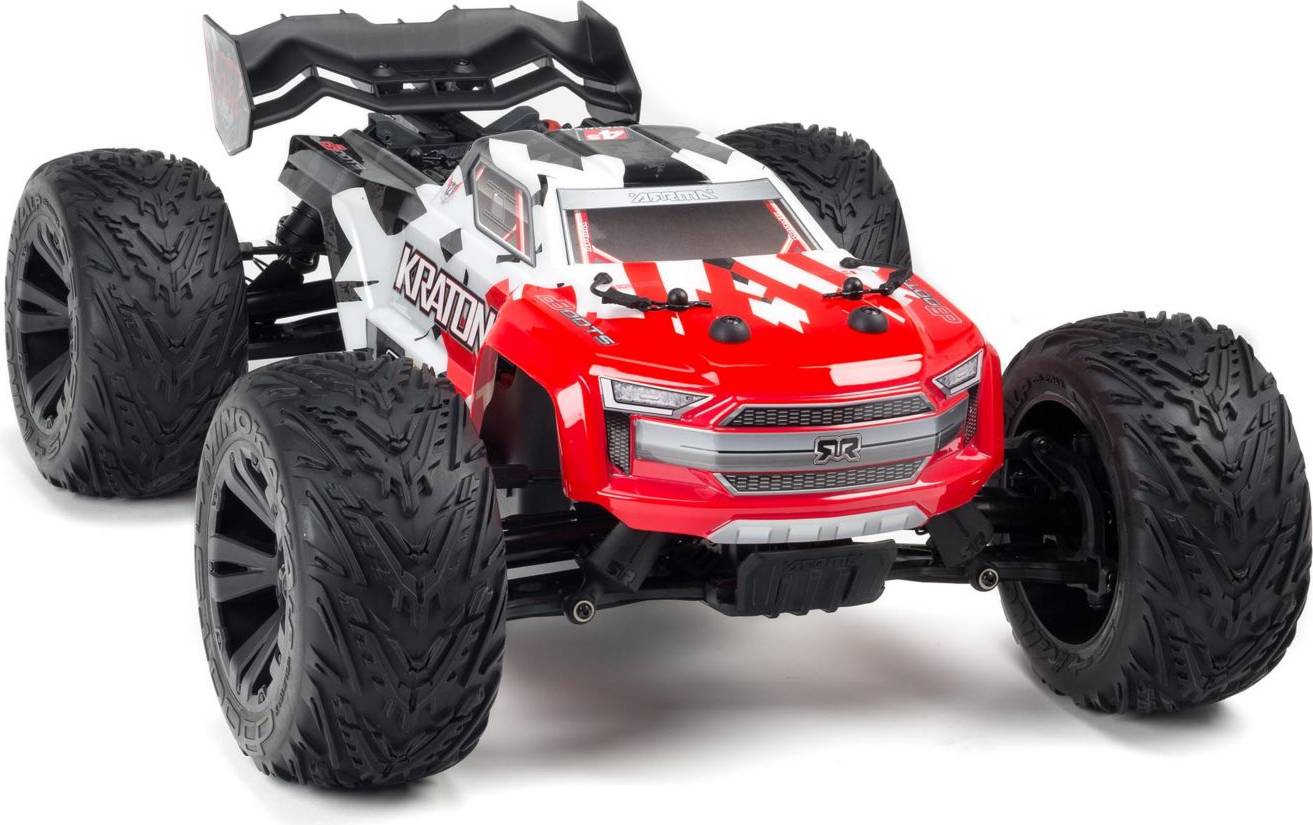

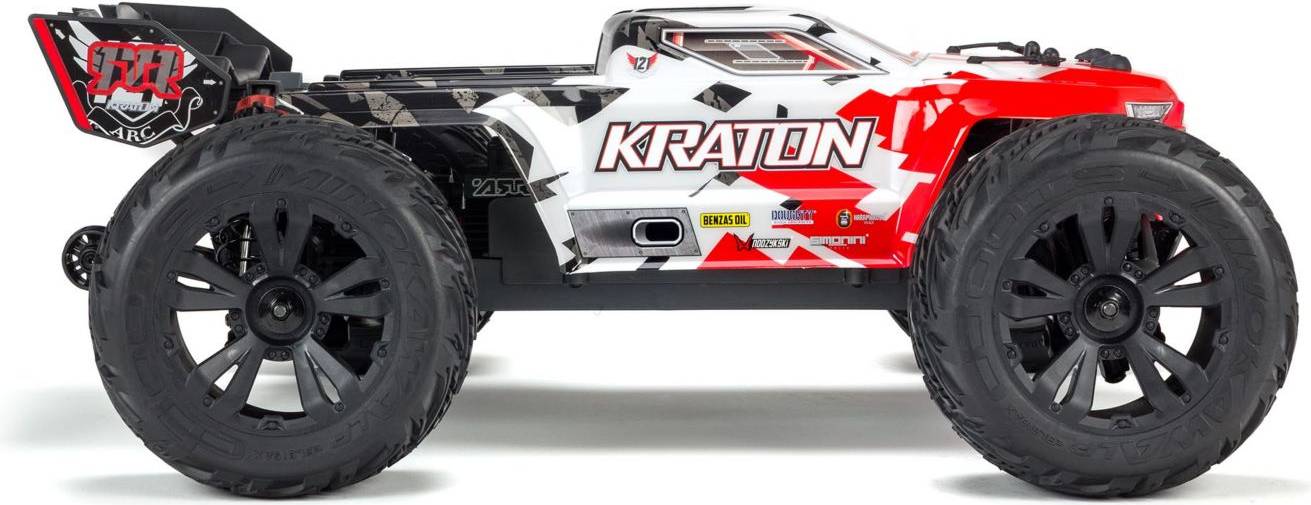

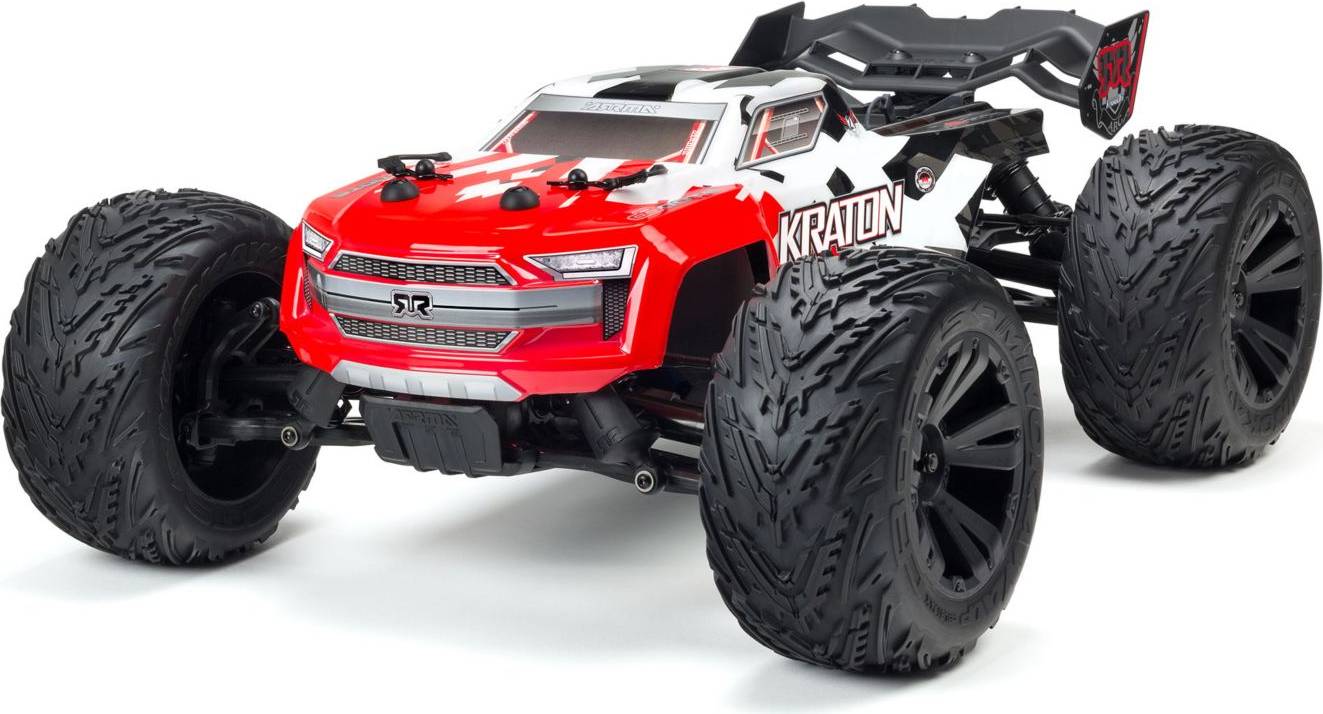

1/10 Kraton 4X4 4S BLX RTR Red w/STX2
By ARRMA RC
$529.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARR R/C Electric 4WD Monster Truck
But only from... ARRMA RC
All items from... ARRMA RC


 Inventory Status Legend
StockStock availability for on-line ordering
2
$529.99
Warehouse ?
StockStock availability for pick up
2
$529.99
Warehouse ?
2
$529.99
Store - Charlottetown ?
2
$529.99
Store - Edmonton ?
2
$529.99
Store - Mississauga ?
2
$529.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Body Clip Retainer 1/10 Scale Black (4)
$5.99

Bearing 15X21X4mm (2)
$8.99

Comp Center Slider Driveshaft BLX 3S
$11.99

F/R Composite Upper Gearbox Covers/Shock Tower
$16.99
F/R Lower Skidplate (2) 4X4 Granite Mega
$6.99

Slipper Clutch Maintenance Set
$13.99

Bearing 10x15x4mm (2)
$5.99

Motor Fan Set 4x4 BLX
$17.99
SPECIFICATIONS
20.79 in
Length:
15.55 in
Width:
7.56 in
Height:
7.99 lbs
Weight:
2.28 in
Ground Clearance:
12.87 in
Wheelbase:
4WD
Drivetrain:
3S/4S or (2) 2S LiPo battery setup
Battery Requirements:
Appropriate LiPo balancing charger
Charger Requirements:
Spektrum STX2® Transmitter
Radio Included:
SRX200 Waterproof Receiver
Receiver Included:
ARRMA® ADS-15M Metal Gear Servo
Servo Included:
ARRMA® 4S-capable BLX3668 Brushless Motor
Brushless Motor Included:
ARRMA® 4S-capable BLX120 Electronic Speed Control
ESC Included:

FEATURES
  • ARRMA® speed and toughness
  • 4S-capable BLX120 Brushless Power System for 50+ mph speed
  • Performance approaching the KRATON™ 6S BLX in a smaller, yet still beast-like setup
  • Spektrum™ STX2® 2.4GHz Radio System
  • 2-Channel SRX200 waterproof receiver
  • Built-in 3-position throttle limiter
  • Extended range and interference-free performance
  • Throttle/steering reversing
  • Throttle/steering travel adjust
  • Throttle limiting
  • ADS-15M waterproof metal-gear high-torque servo

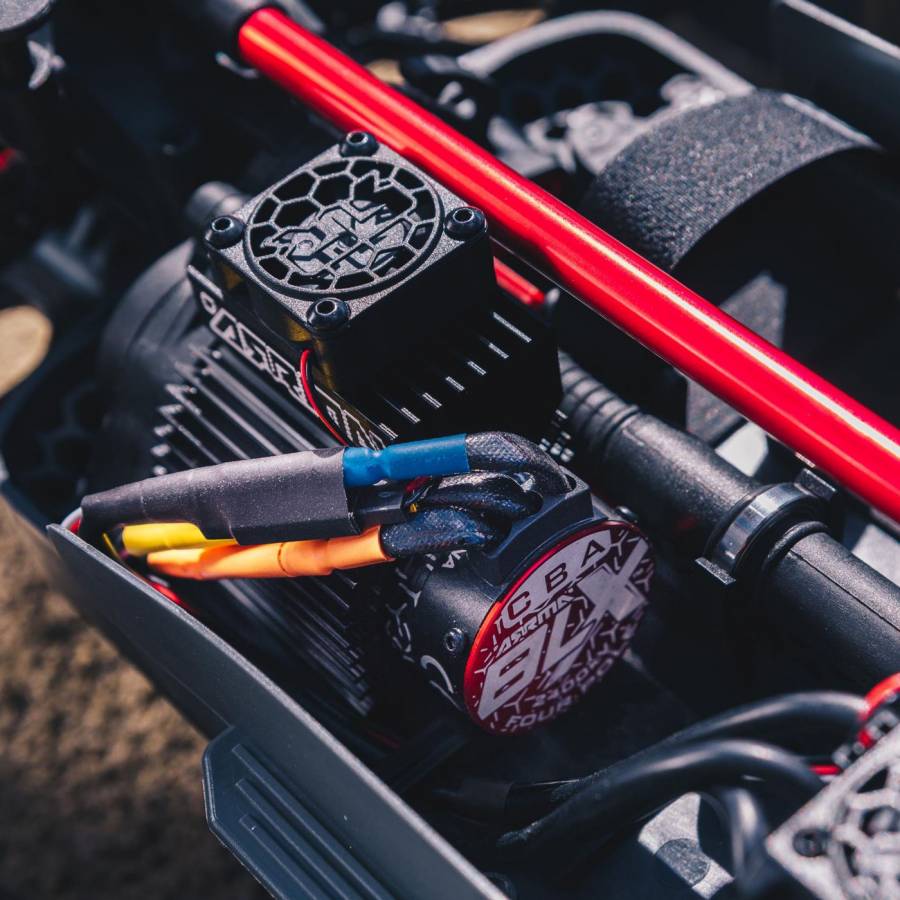

  • 2400Kv brushless motor with large heatsink
  • BLX120 ESC with dual EC5™ battery connectors for two 2S LiPo packs
  • Lengthened suspension arms and driveshaft for wider track than 3S BLX vehicles
  • Center chassis brace for maximum durability
  • Metal spur gear and castellated slipper pads

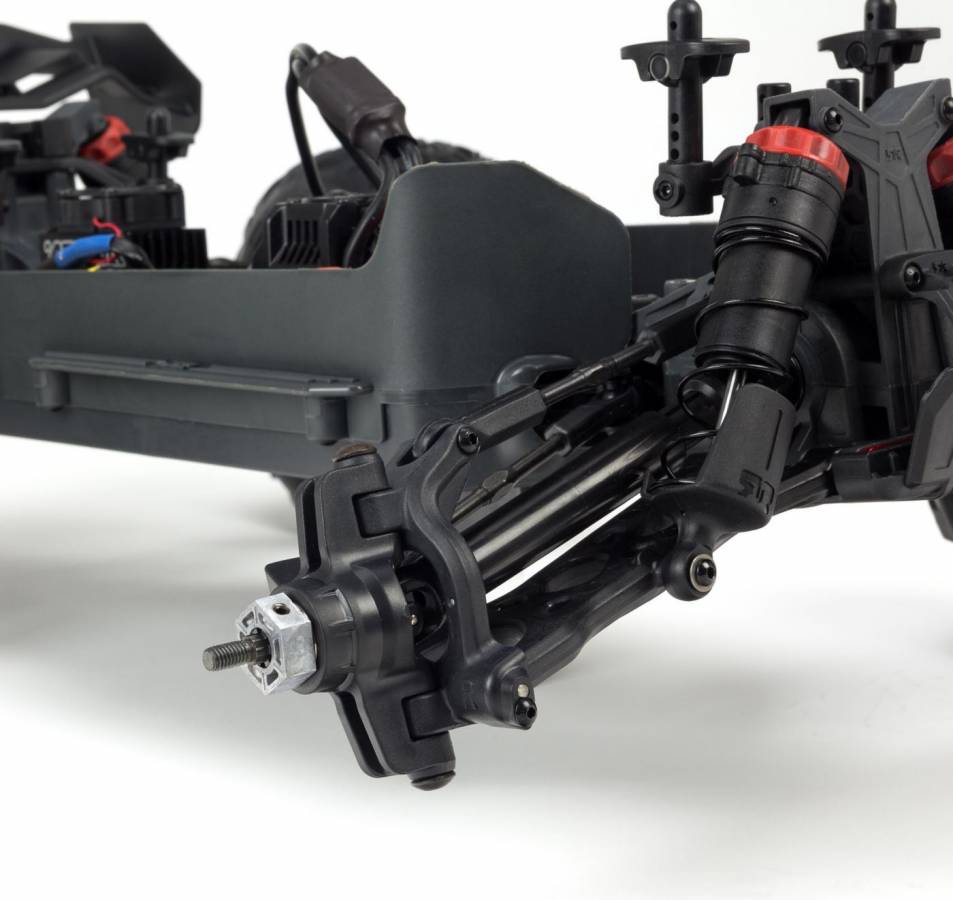

  • Enlarged front and rear hubs for added strength
  • Durable 17mm aluminum hexes
  • 16mm big bore shocks with molded-in shock rod end and top-loading spring
  • Front and rear gearboxes with metal internal differential gears

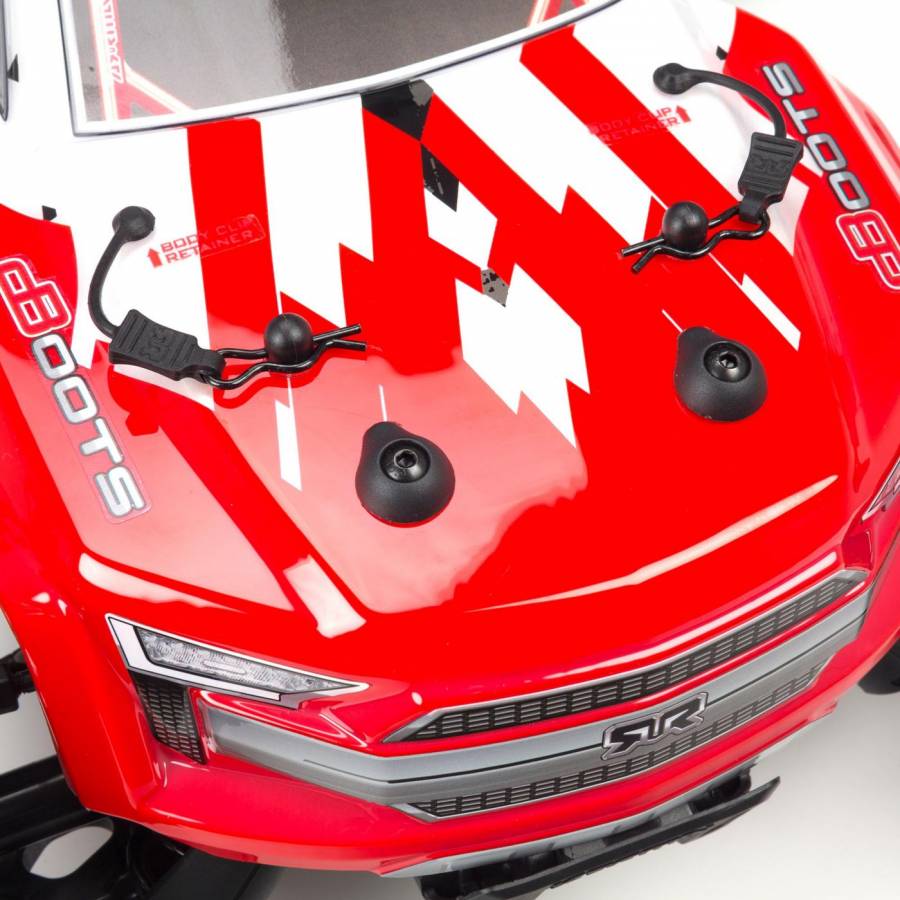

  • New wing, wing mounts, and bumpers
  • New body mounts
  • Low-profile MINOKAWA tires
  • ADS-15M metal gear servo
  • 2-year limited warranty

Needed to Complete

  • (1) 3S/4S or (2) 2S LiPo battery setup
  • (1) Appropriate LiPo balancing charger
  • (4) AA batteries for transmitter

What's in the Box?

  • (1) ARRMA KRATON™ 4x4 4S BLX Vehicle with
    • (1) Spektrum SRX200 Waterproof Receiver (installed)
    • (1) ARRMA® ADS-15M Metal Gear Servo (installed)
    • (1) ARRMA® 4S-capable BLX120 Electronic Speed Control (installed)
    • (1) ARRMA® 4S-capable BLX3668 Brushless Motor (installed)
  • (1) Spektrum STX2® Transmitter
  • (1) Product Manual


Overview

Powered by the BLX120 brushless system, the KRATON™ 4X4 4S BLX is unstoppable on trails, race tracks, and muddy courses. Its 2400Kv brushless motor is matched to an ESC with dual EC5™ connectors for using two 2S LiPo batteries. Differential gears inside the front and rear gearboxes are made of durable metal.

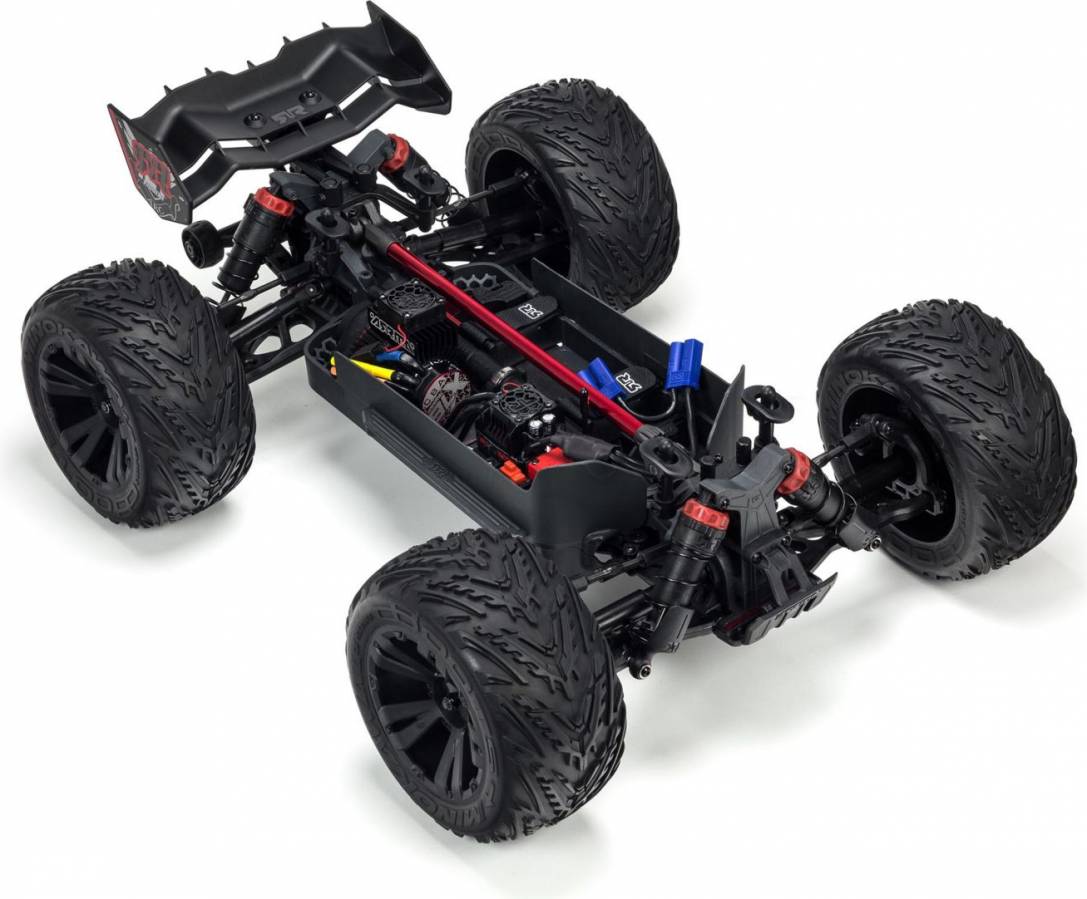

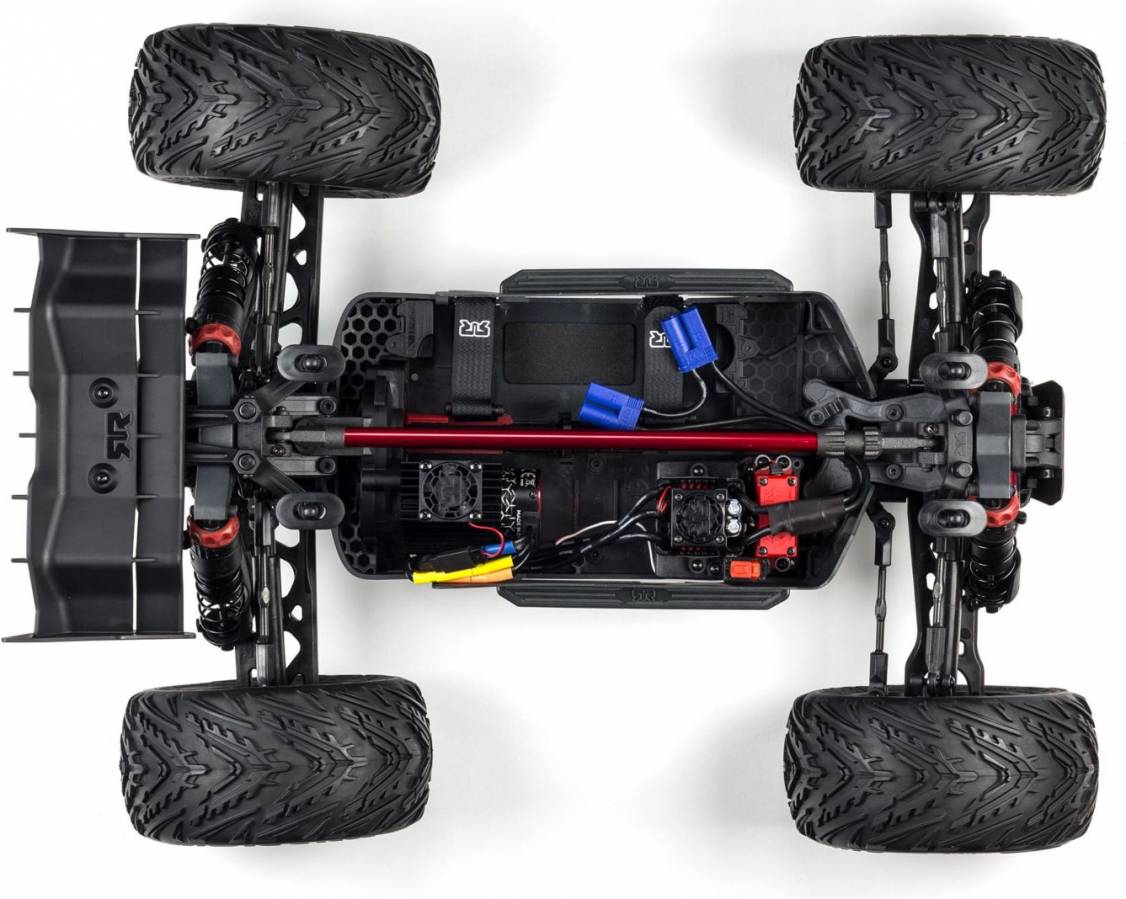

To develop the chassis, ARRMA® engineers started with the proven 4X4 3S platform. They stretched the track width by widening the suspension and drive shafts, and added a center brace along the length of the chassis for maximum durability (it can be removed in just four quick steps when it's time to perform maintenance). The molded 16mm Big Bore shocks include top-loading springs and molded-in shock rod ends to prevent spring loss.

The body has the same aggressive styling as that of the KRATON™ 6S BLX, with a smaller version of its rear wing. There are also many subtle tweaks that give the KRATON™ 4X4 4S BLX a personality all its own. Large, tough wheels hubs and durable 17mm wheel hexes hold standard 3.8" wheels, outfitted with low-profile MINOKAWA LP tires.

Included with the ready-to-run package is a Spektrum™ STX2® 2.4GHz radio with SRX200 waterproof receiver and an ARRMA® ADS-15M metal gear servo. Just add your choice of battery, charger, and "AA" transmitter batteries – and start unleashing ARRMA® monster speed and performance in a whole new size.
