ABMNAZE32A

Naze 32 Acro Flight Controller Rev 5

Product Info
ABMNAZE32A
Naze 32 Acro Flight Controller Rev 5
By ABUSEMARK (NAZE)
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Helicopters, Flight Control Systems
But only from... ABUSEMARK (NAZE)
All items from... ABUSEMARK (NAZE)


 Inventory Status Legend
StockStock availability for on-line ordering
0
$25.49
Warehouse ?
StockStock availability for pick up
0
$25.49
Warehouse ?
0
$25.49
Store - Charlottetown ?
0
$25.49
Store - Edmonton ?
0
$25.49
Store - Mississauga ?
0
$25.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES
  • STM32F103CBT6 32-bit ARM Cortex M3 processor (72MHz, 3.3V)
  • Invensense MPU6050 MEMS accelerometer + gyro
  • Built-in Micro-USB for programming/firmware update
  • 36x36mm size, ~5 gram weight w/o headers
  • Made in JAPAN

These come with all needed headers, NOT soldered to the board. RC input breakout cable is included if selected below, to allow connecting to 4channel+ receiver.

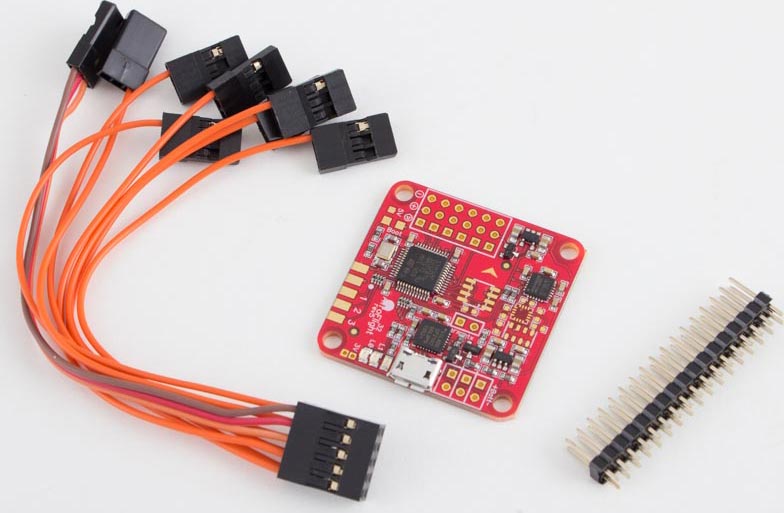

Included: 1x AcroNaze32 rev5, 1x 2x5 header, 4x 2x3 header (or 1x 3x6 right angle header), 1x RC breakout cable.

  • 36x36mm.
  • 6 grams (no headers, 8 grams with).
  • Modern 32-bit ARM processor running at 3.3V/72MHz.
  • MEMS gyro, accelerometer.
  • Acrobatic, auto-level, heading hold, head-free, altitude hold flight mode.
  • Support Quad-, Tri-, Hex-, Octo-, various coaxial configurations, as well as fully customizable motor mixer for any airframe type.
  • Flexible RC input - Standard, CPPM (PPM Sum), Spektrum satellite.
  • Battery voltage monitoring and low voltage alarm.
  • Built-in FrSky telemetry converter.
  • Onboard Micro-USB for setup and configuration.
  • MultiWii-based configuration GUI.
  • Flying wing, airplane mixer. (*)

(*) Work in progress



Designed for use with small indoor or small to mid-sized outdoor multirotor craft, or as a standalone camera stabilizer, the Naze32 flight control is simple to setup.

click image to enlarge

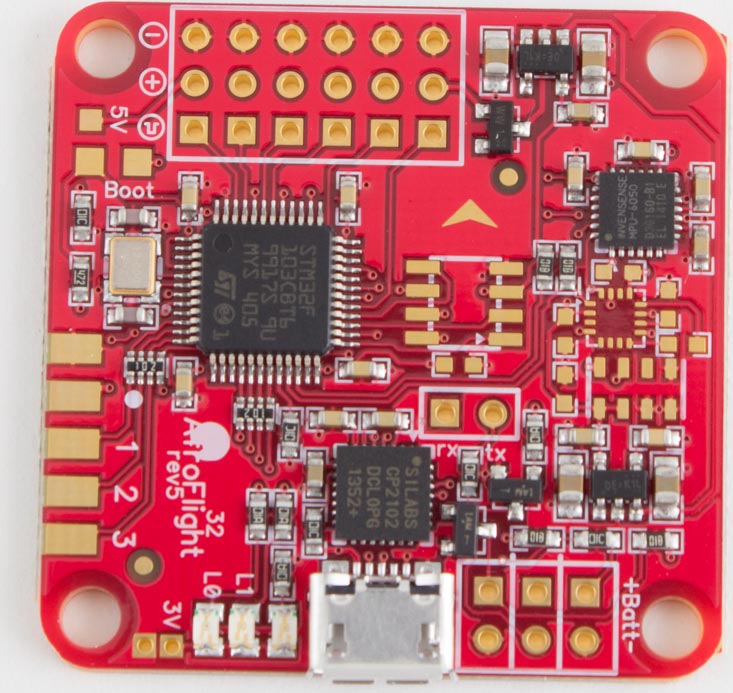

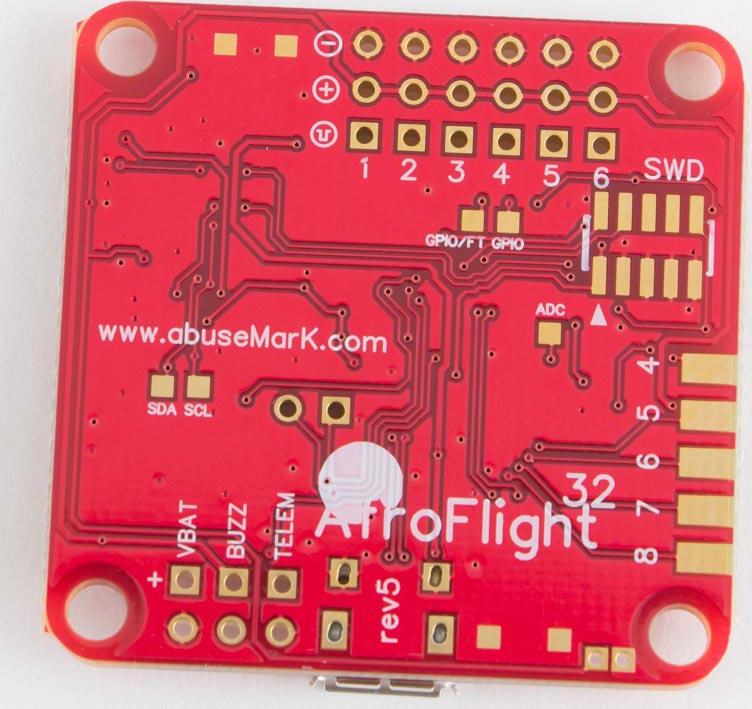

ADDITIONAL PHOTOS
