3DRTELKIT0004

915mHz Telemetry Radio (pair w/antennas)

Product Info | Fits What?
RESOURCES

Fits What? (1)
3D ROBOTICS

3DRTELKIT0004
915mHz Telemetry Radio (pair w/antennas)
By 3D ROBOTICS
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Flight Control System Accessories
But only from... 3D ROBOTICS


 Inventory Status Legend
Stock availability for on-line ordering
0
$110.49
Warehouse ?
Stock availability for pick up
0
$110.49
Warehouse ?
0
$110.49
Store - Charlottetown ?
0
$110.49
Store - Edmonton ?
0
$110.49
Store - Mississauga ?
0
$110.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

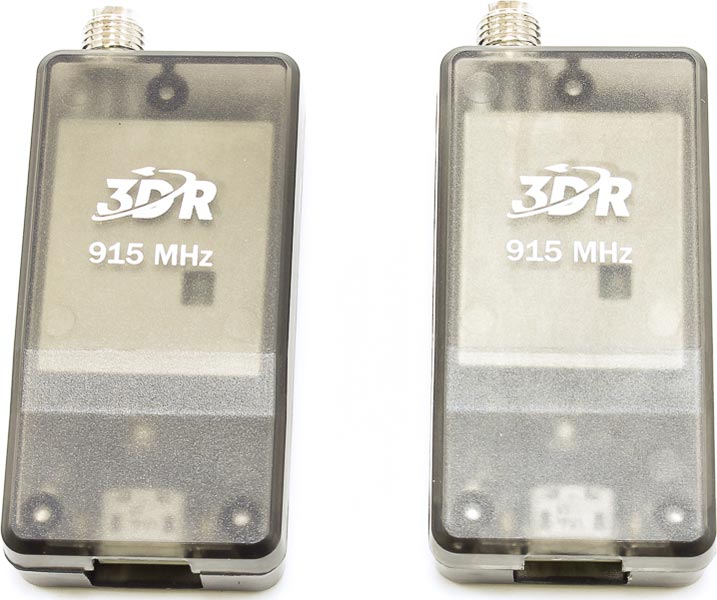

Kick your mission planning into real time with 3DR Radios, featuring interchangeable air and ground modules, Android tablet compatibility and protective cases. 3DR Radios allow your ground station computer to communicate with your vehicle wirelessly, providing unparalleled ease of use for viewing in-flight data, tuning and changing missions on the fly.

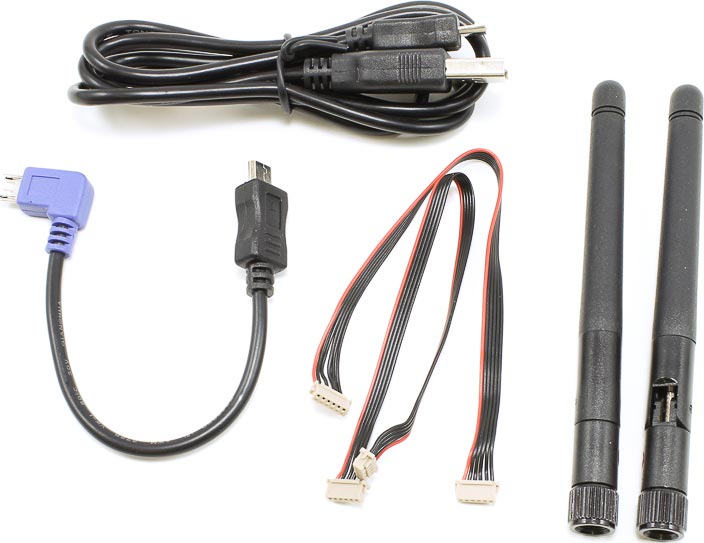

The 3DR Radio set includes:

  • Two radio modules with antennas
  • Micro-USB cable
  • Android OTG adapter cable
  • 6-wire Pixhawk connector cable
  • 6-to-5-position APM and PX4 connector cable
  • Interchangeable air and ground modules


Specifications:

  • 915 MHz
  • Micro-USB port
  • 6-position DF13 connector
  • 100 mW maximum output power (adjustable)
  • -117 dBm receive sensitivity
  • Based on HopeRF’s HM-TRP module
  • RP-SMA connector
  • 2-way full-duplex communication through adaptive TDM
  • UART interface
  • Transparent serial link
  • MAVLink protocol framing
  • Frequency Hopping Spread Spectrum (FHSS)
  • Configurable duty cycle
  • Error correction corrects up to 25% of bit errors
  • Open-source SIK firmware
  • Configurable through Mission Planner and APM Planner
  • Supply voltage: 3.7-6 VDC (from USB or DF13 connector)
  • Transmit current: 100 mA at 20 dBm
  • Receive current: 25 mA
  • Serial interface: 3.3 V UART
  • 26.7 mm x 55.5 mm x 13.3 mm (without antenna)
