3DRPX4KIT0014

Bluetooth Datalink

Product Info | Fits What?
RESOURCES

Fits What? (3)
3D ROBOTICS

3DRPX4KIT0014
Bluetooth Datalink
By 3D ROBOTICS
Discontinued
Click to Enlarge
click to enlarge

More like this... Multirotor Flight Control Systems
But only from... 3D ROBOTICS


 Inventory Status Legend
Stock availability for on-line ordering
0
$42.49
Warehouse ?
Stock availability for pick up
0
$42.49
Warehouse ?
0
$42.49
Store - Charlottetown ?
0
$42.49
Store - Edmonton ?
0
$42.49
Store - Mississauga ?
0
$42.49
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
FEATURES

Connect to your vehicle using Bluetooth! This Bluetooth data link module allows you to connect a Pixhawk or APM autopilot to a Bluetooth-compatible Android device using DroidPlanner or Andropilot ground station apps. Leave your telemetry radio and OTG cable at home, and make a direct Bluetooth connection for pre-flight mission planning and vehicle setup.

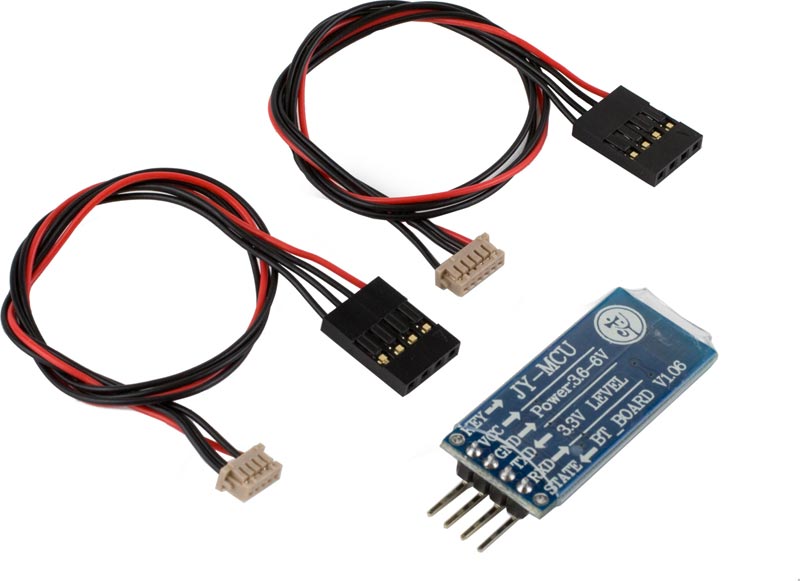

Includes:

  • Bluetooth module
  • Pixhawk cable (six-position DF13 to FTDI) 20 cm
  • APM cable (five-position DF13 to FTDI) 20 cm

Specs:

Dimensions : 1.4" x 0.6" x 0.17"
Weight 9.6 g (0.3 oz)
Operation voltage: 3.6 to 6 V
I/O level: 3.3 V
Typical -80dBm sensitivity
Up to +4dBm RF transmit power
UART interface with programmable baud rate
Default baud rate: 57600
Supported baud rates: 9600, 19200, 38400, 57600, 115200, 230400, 460800
Pairing code: 1234
Auto-connect to the last device on power as default
Permit pairing device to connect as default
Integrated antenna
Range: 50 m

Note: This Blue Tooth module is intended for pre-flight programming of the flight controller via Droid Planner app.  The range is not enough for inflight connection to the Ground Station app.  It is not a replacement for the 3DR 915MHz Telemetry radio or the RC transmitter and receiver. The range of the connection is limited to standard Bluetooth range (50 m).  This can also be used to connect the 3DR Telemetry radio to non OTG supported Android devices.
